CRANKCASE

Go to Split View

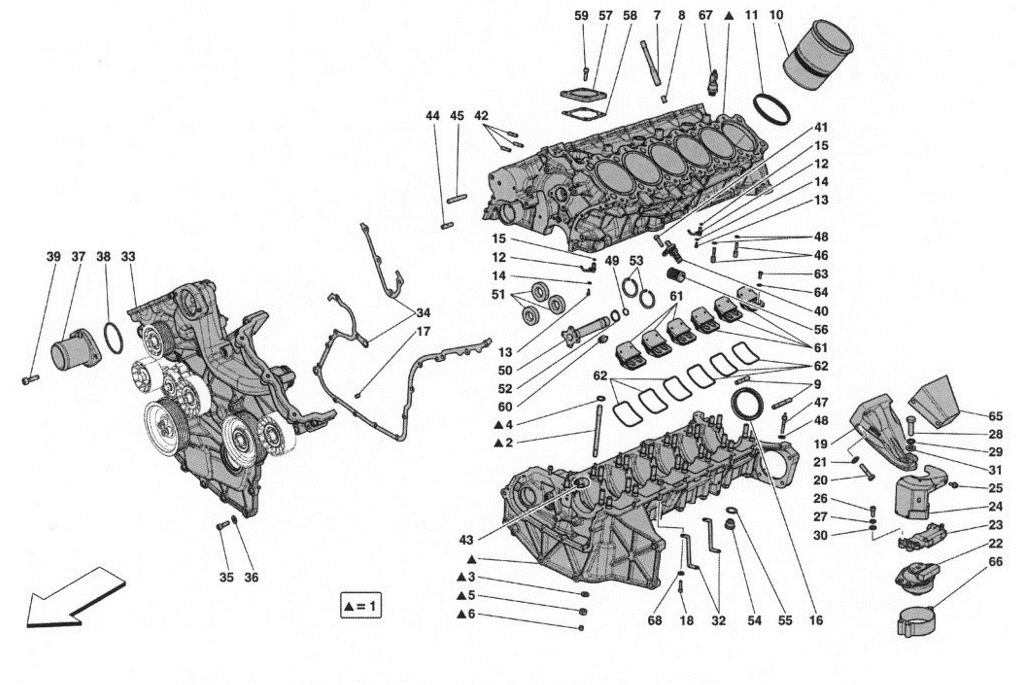

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 268167 *Qty: 0 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY -Applicable up to engine No. 175376- $9,300.45
Location: 1 Prev | Next Part: 278465 *Qty: 0 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY -Applicable from engine No. 175377- Call
Location: 2 Prev | Next Part: 217796 *Qty: 0 STUD BOLT -M12 X 1.75- -Outer positioning- $6.08
Location: 2 Prev | Next Part: 190426 *Qty: 0 STUD BOLT -M12 X 1.75- -Inner positioning- $11.05
Location: 3 Prev | Next Part: 178348 *Qty: 0 WASHER $0.95
Location: 4 Prev | Next Part: 134704 *Qty: 0 O-RING $0.90
Location: 5 Prev | Next Part: 133988 *Qty: 0 NUT $0.90
Location: 6 Prev | Next Part: 176421 *Qty: 0 ALIGNMENT DOWEL $5.22
Location: 7 Prev | Next Part: 217968 *Qty: 0 STUD BOLT -Fastening cylinder heads- $8.27
Location: 8 Prev | Next Part: 185360 *Qty: 0 ALIGNMENT DOWEL $3.61
Location: 9 Prev | Next Part: 13546834 *Qty: 0 STUD BOLT -M10 X 1.25 X 20- -Shank length 65- -Fastening gearbox housing to RH side lower crankcase shell- $1.67
Location: 9 Prev | Next Part: 13547034 *Qty: 0 STUD BOLT -M10 X 1.25 X 20- -Shank length 55- -Fastening gearbox housing to RH side lower crankcase shell- $11.05
Location: 9 Prev | Next Part: 13547234 *Qty: 0 STUD BOLT -M10 X 1.25 X 20- -Shank length 65- -Fastening gearbox housing- $4.23
Location: 9 Prev | Next Part: 13546934 *Qty: 0 STUD BOLT -M10 X 1.25 X 20- -Shank length 50- -Fastening gearbox housing, dowel section- $1.94
Location: 9 Prev | Next Part: 13546734 *Qty: 0 STUD BOLT -M10 X 1.25 X 20- -Shank length 40- -Fastening gearbox housing to upper RH zone of crankcase- $3.32
Location: 9 Prev | Next Part: 13546834 *Qty: 0 STUD BOLT -M10 X 1.25 X 20- -Shank length 65- -Fastening gearbox housing to upper RH zone of crankcase- $1.67
Location: 10 Prev | Next Part: 266366 *Qty: 0 CYLINDER SLEEVE -D. 94- $324.68
Location: 11 Prev | Next Part: 186251 *Qty: 0 O-RING $3.21
Location: 12 Prev | Next Part: 264087 *Qty: 0 COMPL. PISTON COOLING NOZZLE Call
Location: 13 Prev | Next Part: 14302921 *Qty: 0 SCREW -M4 X 10- $0.90
Location: 14 Prev | Next Part: 11181474 *Qty: 0 WASHER $0.90
Location: 15 Prev | Next Part: 164877 *Qty: 0 O-RING $0.90
Location: 16 Prev | Next Part: 200323 *Qty: 0 GASKET $38.88
Location: 17 Prev | Next Part: 175611 *Qty: 0 ALIGNMENT DOWEL $2.14
Location: 18 Prev | Next Part: 231620 *Qty: 0 SCREW -M6 X 25- $0.90
Location: 19 Prev | Next Part: 262744 *Qty: 0 LH ENGINE STRUT Call
Location: 19 Prev | Next Part: 262743 *Qty: 0 RH ENGINE STRUT Call
Location: 20 Prev | Next Part: 11234734 *Qty: 0 SCREW -M10 X 1.25 X 45- $1.08
Location: 21 Prev | Next Part: 11190574 *Qty: 0 WASHER $0.90
Location: 22 Prev | Next Part: 259757 *Qty: 0 COMPL. LH FLEXIBLE ENGINE MOUNTING BUSH $469.10
Location: 22 Prev | Next Part: 259756 *Qty: 0 COMPL. RH FLEXIBLE ENGINE MOUNTING BUSH $469.10
Location: 23 Prev | Next Part: 272341 *Qty: 0 LH BUSH TRAVEL LIMITER BRACKET -No longer supplied- -Replaced by 280115- Call
Location: 23 Prev | Next Part: 280115 *Qty: 0 LH BUSH TRAVEL LIMITER BRACKET -After depletion, replace as a pair- -Applicable up to Ass. No. 101715- -Applicable until depletion- Call
Location: 23 Prev | Next Part: 280019 *Qty: 0 LH BUSH TRAVEL LIMITER BRACKET -Applicable from Ass. No. 101716- -Applicable after depletion of 280115- Call
Location: 23 Prev | Next Part: 272340 *Qty: 0 RH BUSH TRAVEL LIMITER BRACKET -No longer supplied- -Replaced by 280116- Call
Location: 23 Prev | Next Part: 280116 *Qty: 0 RH BUSH TRAVEL LIMITER BRACKET -After depletion, replace as a pair- -Applicable up to Ass. No. 101715- -Applicable until depletion- Call
Location: 23 Prev | Next Part: 280020 *Qty: 0 RH BUSH TRAVEL LIMITER BRACKET -Applicable from Ass. No. 101716- -Applicable after depletion of 280116- Call
Location: 24 Prev | Next Part: 272342 *Qty: 0 RH BUSHING HEAT SHIELD Call
Location: 24 Prev | Next Part: 272343 *Qty: 0 LH BUSHING HEAT SHIELD Call
Location: 25 Prev | Next Part: 231616 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 26 Prev | Next Part: 274859 *Qty: 0 SCREW -M10 X 1.25 X 130- Call
Location: 27 Prev | Next Part: 127497 *Qty: 0 WASHER $0.90
Location: 28 Prev | Next Part: 14422634 *Qty: 0 SCREW -M12 X 1.75- Call
Location: 29 Prev | Next Part: 13550521 *Qty: 0 WASHER $0.90
Location: 30 Prev | Next Part: 14496624 *Qty: 0 WASHER $0.90
Location: 31 Prev | Next Part: 127498 *Qty: 0 WASHER $0.90
Location: 32 Prev | Next Part: 226548 *Qty: 0 PIPE MOUNTING BRACKET -No longer supplied- -Replaced by 149694- $102.78
Location: 32 Prev | Next Part: 149694 *Qty: 0 PIPE MOUNTING BRACKET $7.91
Location: 33 Prev | Next Part: 261583 *Qty: 0 FRONT CRANKCASE COVER $2,056.79
Location: 34 Prev | Next Part: 264402 *Qty: 0 GASKET BETWEEN CRANKCASE AND FRONT COVER $52.87
Location: 35 Prev | Next Part: 14305924 *Qty: 0 SCREW -M6 X 45- Superseded
Location: 35 Prev | Next Part: 14304824 *Qty: 0 SCREW -M6 X 55- $0.90
Location: 35 Prev | Next Part: 14305524 *Qty: 0 SCREW -M6 X 30- $0.90
Location: 35 Prev | Next Part: 231618 *Qty: 0 SCREW -M6 X 20- $0.90
Location: 35 Prev | Next Part: 231622 *Qty: 0 SCREW -M6 X 35- $0.90
Location: 35 Prev | Next Part: 231625 *Qty: 0 SCREW -M6 X 50- $0.90
Location: 35 Prev | Next Part: 14304824 *Qty: 0 SCREW -M6 X 55- $0.90
Location: 36 Prev | Next Part: 216292 *Qty: 0 GASKET $4.23
Location: 36 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 37 Prev | Next Part: 268695 *Qty: 0 WATER INLET Call
Location: 38 Prev | Next Part: 134907 *Qty: 0 GASKET $2.15
Location: 39 Prev | Next Part: 231618 *Qty: 0 SCREW -M6 X 20- $0.90
Location: 40 Prev | Next Part: 276125 *Qty: 0 RPM SENSOR $147.47
Location: 41 Prev | Next Part: 231618 *Qty: 0 SCREW -M6 X 20- $0.90
Location: 42 Prev | Next Part: 13516824 *Qty: 0 STUD BOLT $8.85
Location: 43 Prev | Next Part: 234002 *Qty: 0 CHAIN COOLING NOZZLE Call
Location: 44 Prev | Next Part: 13543124 *Qty: 0 STUD BOLT -M8 X 16- -Shank length 16 mm- $1.02
Location: 45 Prev | Next Part: 13543824 *Qty: 0 STUD BOLT -M8 X 16- -Shank length 40 mm- Superseded
Location: 46 Prev | Next Part: 214412 *Qty: 0 STUD BOLT $13.79
Location: 47 Prev | Next Part: 219283 *Qty: 0 STUD BOLT $17.31
Location: 48 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 49 Prev | Next Part: 186272 *Qty: 0 GASKET $0.90
Location: 50 Prev | Next Part: 212592 *Qty: 0 PUMP ARRAY DRIVE SHAFT $251.50
Location: 51 Prev | Next Part: 155996 *Qty: 0 BEARING $14.72
Location: 52 Prev | Next Part: 11067276 *Qty: 0 SEEGER RING $0.90
Location: 53 Prev | Next Part: 11381076 *Qty: 0 SEEGER RING $2.05
Location: 54 Prev | Next Part: 104280 *Qty: 0 MAGNETIC PLUG $10.09
Location: 55 Prev | Next Part: 10261860 *Qty: 0 GASKET $0.90
Location: 56 Prev | Next Part: 187162 *Qty: 0 CENTRAL ENGINE OIL FILTER $14.45
Location: 57 Prev | Next Part: 208451 *Qty: 0 INSPECTION HATCH COVER $35.69
Location: 58 Prev | Next Part: 248026 *Qty: 0 GASKET $3.60
Location: 59 Prev | Next Part: 231618 *Qty: 0 SCREW -M6 X 20- $0.90
Location: 60 Prev | Next Part: 257379 *Qty: 0 STUD BOLT -Fastening front cover- Call
Location: 61 Prev | Next Part: 255136 *Qty: 0 COMPLETE VALVE HOLDER $269.05
Location: 62 Prev | Next Part: 154691 *Qty: 0 GASKET $2.14
Location: 63 Prev | Next Part: 13026924 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 64 Prev | Next Part: 11197774 *Qty: 0 WASHER Superseded
Location: 65 Prev | Next Part: 261068 *Qty: 0 SHIELD ON ENGINE STRUT Call
Location: 66 Prev | Next Part: 257168 *Qty: 0 ENGINE MOUNTING BUSH COLLAR Call
Location: 67 Prev | Next Part: 201207 *Qty: 0 PRESSURE TRANSMITTER $248.28
Location: 68 Prev | Next Part: 11193274 *Qty: 0 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
