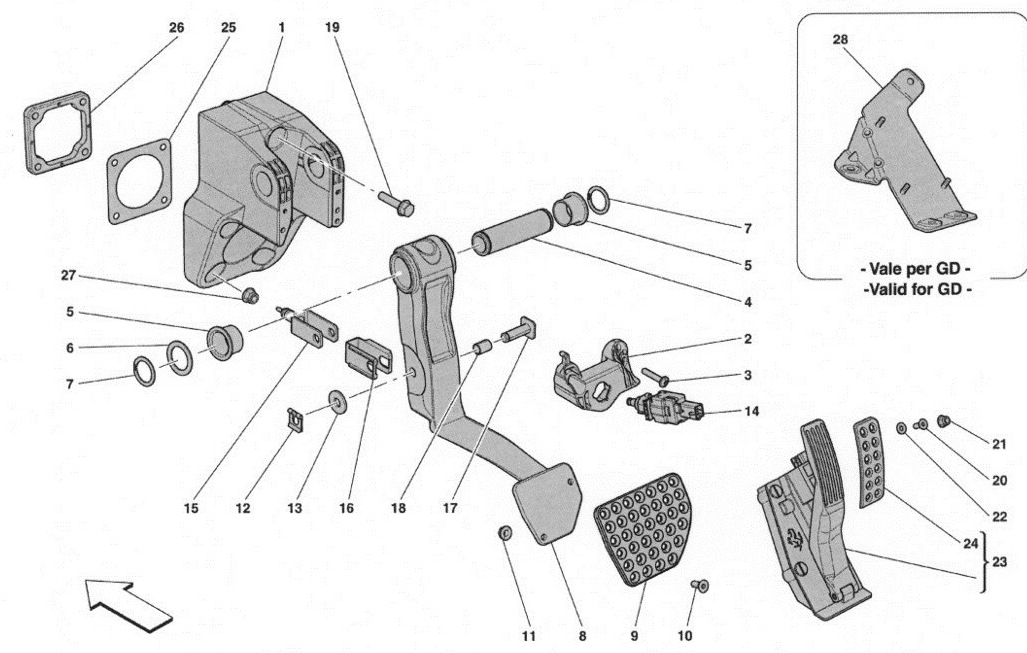

COMPLETE PEDAL BOARD ASSEMBLY

Go to Split View

COMPLETE PEDAL BOARD ASSEMBLY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 261612 *Qty: 0 PEDAL BOARD MOUNTING Call
Location: 2 Prev | Next Part: 259123 *Qty: 0 F1 SWITCH BRACKET $58.75
Location: 3 Prev | Next Part: 240931 *Qty: 0 SCREW $6.21
Location: 4 Prev | Next Part: 240930 *Qty: 0 PIN $88.12
Location: 5 Prev | Next Part: 240771 *Qty: 0 PIVOT BUSHING Superseded
Location: 6 Prev | Next Part: 240929 *Qty: 0 RUBBER WASHER $13.48
Location: 7 Prev | Next Part: 12700076 *Qty: 0 SEEGER RING FOR SHAFT $13.48
Location: 8 Prev | Next Part: 261832 *Qty: 0 BRAKE PEDAL -Not for GD- Call
Location: 8 Prev | Next Part: 261846 *Qty: 0 BRAKE PEDAL -Applicable for GD- Call
Location: 9 Prev | Next Part: 240987 *Qty: 0 DRILLED PLATE $279.68
Location: 10 Prev | Next Part: 14441324 *Qty: 0 SCREW -M6 X 16- $0.90
Location: 11 Prev | Next Part: 12578111 *Qty: 0 NUT $0.90
Location: 12 Prev | Next Part: 11064176 *Qty: 0 SAFETY CLIP $3.71
Location: 13 Prev | Next Part: 245181 *Qty: 0 RUBBER WASHER $10.35
Location: 14 Prev | Next Part: 201957 *Qty: 0 PUSHBUTTON SWITCH $44.35
Location: 15 Prev | Next Part: 245178 *Qty: 0 BRAKE SERVO LINKAGE YOKE $80.78
Location: 16 Prev | Next Part: 245179 *Qty: 0 CAGE $25.91
Location: 17 Prev | Next Part: 245180 *Qty: 0 PIN $85.62
Location: 18 Prev | Next Part: 260639 *Qty: 0 BUSHING $17.96
Location: 19 Prev | Next Part: 16287421 *Qty: 0 SCREW -M8 X 35- $0.90
Location: 20 Prev | Next Part: 69855300 *Qty: 0 PRESS-FIT BUTTON $0.90
Location: 21 Prev | Next Part: 12575421 *Qty: 0 NUT Superseded
Location: 22 Prev | Next Part: 12646624 *Qty: 0 WASHER $0.90
Location: 23 Prev | Next Part: 243117 *Qty: 0 COMPLETE FLOOR-HINGED ACCELERATOR PEDAL $321.52
Location: 24 Prev | Next Part: 243120 *Qty: 0 ACCELERATOR PEDAL PLATE $299.63
Location: 25 Prev | Next Part: 190378 *Qty: 0 GASKET $1.26
Location: 26 Prev | Next Part: 196080 *Qty: 0 SHIM $40.86
Location: 27 Prev | Next Part: 12578211 *Qty: 0 NUT $0.90
Location: 28 Prev | Next Part: 82467100 *Qty: 0 ACCELERATOR PEDAL BRACKET -Applicable for GD- Call

* Quantity shown indicates the number of pieces used in the diagram.
