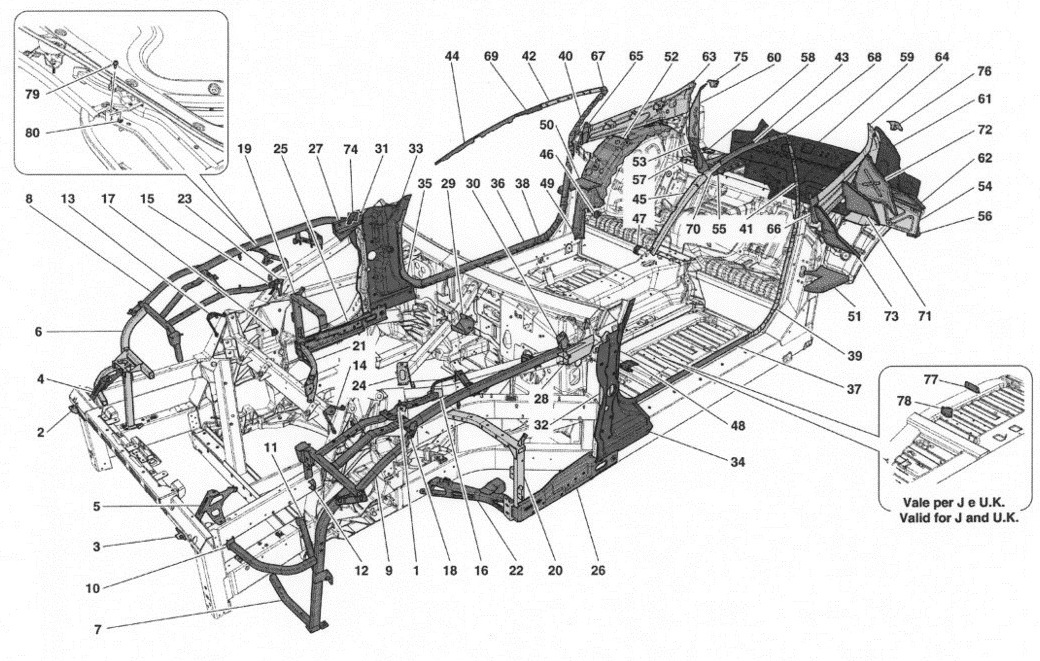

CHASSIS COMPLETION

Go to Split View

CHASSIS COMPLETION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 272826 *Qty: 0 ACCELEROMETER MOUNTING BRACKET $13.39
Location: 2 Prev | Next Part: 82895400 *Qty: 0 FRONT FASTENER BRACKET FOR RH HEADLIGHT $44.05
Location: 3 Prev | Next Part: 82895500 *Qty: 0 FRONT FASTENER BRACKET FOR LH HEADLIGHT $44.05
Location: 4 Prev | Next Part: 82983200 *Qty: 0 RH LATERAL BRACKET Call
Location: 5 Prev | Next Part: 82983300 *Qty: 0 LH LATERAL BRACKET Call
Location: 6 Prev | Next Part: 83243700 *Qty: 0 FRONT TRELLIS FOR RH HEADLIGHT Call
Location: 7 Prev | Next Part: 83243800 *Qty: 0 FRONT TRELLIS FOR LH HEADLIGHT Call
Location: 8 Prev | Next Part: 83552600 *Qty: 0 FRONT RH FENDER TRELLIS Call
Location: 9 Prev | Next Part: 83552700 *Qty: 0 FRONT LH FENDER TRELLIS Call
Location: 10 Prev | Next Part: 83244900 *Qty: 0 LOWER FRONT CORNER TUBE CONNECTION Call
Location: 11 Prev | Next Part: 83342500 *Qty: 0 INTERNAL FRONT CONNECTOR ELEMENT $12.49
Location: 12 Prev | Next Part: 271344 *Qty: 0 FRONT WHEEL BAY SHIELD FASTENER BRACKET $12.54
Location: 13 Prev | Next Part: 272931 *Qty: 0 RH LATERAL ENGINE SHIELD FASTENER BRACKET $17.51
Location: 14 Prev | Next Part: 272930 *Qty: 0 LH LATERAL ENGINE SHIELD FASTENER BRACKET Call
Location: 15 Prev | Next Part: 83557100 *Qty: 0 MOUNTING FOR INTERNAL RH FRONT FENDER TUBE Call
Location: 16 Prev | Next Part: 83557200 *Qty: 0 MOUNTING FOR INTERNAL LH FRONT FENDER TUBE Call
Location: 17 Prev | Next Part: 271348 *Qty: 0 RH REAR WHEEL BAY SHIELD FASTENER BRACKET $15.82
Location: 18 Prev | Next Part: 271346 *Qty: 0 LH REAR WHEEL BAY SHIELD FASTENER BRACKET $15.82
Location: 19 Prev | Next Part: 83450000 *Qty: 0 RH TRELLIS PILLAR -Not for GD- Call
Location: 19 Prev | Next Part: 84008900 *Qty: 0 RH TRELLIS PILLAR -Applicable for GD- Call
Location: 20 Prev | Next Part: 83450100 *Qty: 0 LH TRELLIS PILLAR -Not for GD- Call
Location: 20 Prev | Next Part: 84009000 *Qty: 0 LH TRELLIS PILLAR -Applicable for GD- Call
Location: 21 Prev | Next Part: 83783200 *Qty: 0 RH REAR TRELLIS CROSS-MEMBER Call
Location: 22 Prev | Next Part: 83783400 *Qty: 0 LH REAR TRELLIS CROSS-MEMBER Call
Location: 23 Prev | Next Part: 272933 *Qty: 0 RH LATERAL SHIELD FASTENER BRACKET $27.63
Location: 24 Prev | Next Part: 272932 *Qty: 0 LH LATERAL SHIELD FASTENER BRACKET Call
Location: 25 Prev | Next Part: 83033900 *Qty: 0 LOWER FASTENER BEAM FOR RH FENDER Call
Location: 26 Prev | Next Part: 83034000 *Qty: 0 LOWER FASTENER BEAM FOR LH FENDER Call
Location: 27 Prev | Next Part: 83440700 *Qty: 0 RH BRACE $146.56
Location: 28 Prev | Next Part: 83440800 *Qty: 0 LH BRACE Call
Location: 29 Prev | Next Part: 269275 *Qty: 0 CENTRAL WINDSCREEN WIPER FASTENER BRACKET -Not for GD- Call
Location: 29 Prev | Next Part: 277953 *Qty: 0 CENTRAL WINDSCREEN WIPER FASTENER BRACKET -Applicable for GD- Call
Location: 30 Prev | Next Part: 269274 *Qty: 0 LH WINDSCREEN WIPER FASTENER BRACKET Call
Location: 31 Prev | Next Part: 268478 *Qty: 0 RH PILLAR MOUNTING LIP Call
Location: 32 Prev | Next Part: 268477 *Qty: 0 LH PILLAR MOUNTING LIP Call
Location: 33 Prev | Next Part: 265592 *Qty: 0 EXTERNAL RH PILLAR TRUSS Call
Location: 34 Prev | Next Part: 265593 *Qty: 0 EXTERNAL LH PILLAR TRUSS Call
Location: 35 Prev | Next Part: 81656800 *Qty: 0 PROFILE LINKING RH PILLAR WITH FLANK Call
Location: 35 Prev | Next Part: 81656700 *Qty: 0 PROFILE LINKING LH PILLAR WITH FLANK Call
Location: 36 Prev | Next Part: 83251800 *Qty: 0 LOWER RH PROFILE Call
Location: 37 Prev | Next Part: 83251900 *Qty: 0 LOWER LH PROFILE Call
Location: 38 Prev | Next Part: 81668200 *Qty: 0 PROFILE LINKING RH PILLAR WITH FLANK Call
Location: 39 Prev | Next Part: 81668100 *Qty: 0 PROFILE LINKING LH PILLAR WITH FLANK Call
Location: 40 Prev | Next Part: 83249900 *Qty: 0 UPPER RH PILLAR CONNECTOR PROFILE Call
Location: 41 Prev | Next Part: 83250000 *Qty: 0 UPPER LH PILLAR CONNECTOR PROFILE Call
Location: 42 Prev | Next Part: 83249500 *Qty: 0 RH ROOF BEAM CONNECTOR PROFILE Call
Location: 43 Prev | Next Part: 83249600 *Qty: 0 LH ROOF BEAM CONNECTOR PROFILE Call
Location: 44 Prev | Next Part: 83249100 *Qty: 0 UPPER RH CONNECTOR PROFILE Call
Location: 45 Prev | Next Part: 83249200 *Qty: 0 UPPER LH CONNECTOR PROFILE Call
Location: 46 Prev | Next Part: 261658 *Qty: 0 REAR SEAT CUSHION BRACKET Call
Location: 47 Prev | Next Part: 272141 *Qty: 0 FASTENER BRACKET FOR LOWER REAR SEAT SUBSTRUCTURE $13.53
Location: 48 Prev | Next Part: 253872 *Qty: 0 BRACKET Call
Location: 49 Prev | Next Part: 83827500 *Qty: 0 REAR CONNECTOR PLATE FOR RH SILL MEMBER Call
Location: 49 Prev | Next Part: 83827600 *Qty: 0 REAR CONNECTOR PLATE FOR LH SILL MEMBER Call
Location: 50 Prev | Next Part: 84018600 *Qty: 0 LATERAL FRONT PARTITION ON RH REAR WHEELHOUSE Call
Location: 51 Prev | Next Part: 84018700 *Qty: 0 LATERAL FRONT PARTITION ON LH REAR WHEELHOUSE Call
Location: 52 Prev | Next Part: 83356700 *Qty: 0 RH REAR WHEELHOUSE Call
Location: 52 Prev | Next Part: 83356800 *Qty: 0 LH REAR WHEELHOUSE Call
Location: 53 Prev | Next Part: 83780500 *Qty: 0 REAR SHIELD FOR INNER RH REAR WHEELHOUSE Call
Location: 54 Prev | Next Part: 83781400 *Qty: 0 REAR SHIELD FOR INNER LH REAR WHEELHOUSE Call
Location: 55 Prev | Next Part: 82677500 *Qty: 0 RH SPARE WHEEL TUB FILLER PANEL Call
Location: 56 Prev | Next Part: 82677600 *Qty: 0 LH SPARE WHEEL TUB FILLER PANEL Call
Location: 57 Prev | Next Part: 270137 *Qty: 0 FRONT BRACKET FOR RH LUGGAGE RETAINER HOOK Call
Location: 57 Prev | Next Part: 270139 *Qty: 0 FRONT BRACKET FOR LH LUGGAGE RETAINER HOOK Call
Location: 58 Prev | Next Part: 270140 *Qty: 0 REAR BRACKET FOR RH LUGGAGE RETAINER HOOK Call
Location: 58 Prev | Next Part: 270141 *Qty: 0 REAR BRACKET FOR LH LUGGAGE RETAINER HOOK Call
Location: 59 Prev | Next Part: 83213900 *Qty: 0 COMPL. BACK PANEL -Standard- Call
Location: 59 Prev | Next Part: 83881500 *Qty: 0 COMPL. BACK PANEL -Version with power assisted tailgate- Call
Location: 60 Prev | Next Part: 83738600 *Qty: 0 RH CONNECTION Call
Location: 61 Prev | Next Part: 83738700 *Qty: 0 LH CONNECTION Call
Location: 62 Prev | Next Part: 83441600 *Qty: 0 LH REAR WHEELHOUSE FILLER PANEL Call
Location: 63 Prev | Next Part: 83282800 *Qty: 0 RH LATERAL SUBSTRUCTURE Call
Location: 64 Prev | Next Part: 83282900 *Qty: 0 LH LATERAL SUBSTRUCTURE Call
Location: 65 Prev | Next Part: 83251200 *Qty: 0 CONNECTOR FOR RH LATERAL PILLAR SUBSTRUCTURE Call
Location: 66 Prev | Next Part: 83251300 *Qty: 0 CONNECTOR FOR LH LATERAL PILLAR SUBSTRUCTURE Call
Location: 67 Prev | Next Part: 83251000 *Qty: 0 RH CONNECTION Call
Location: 68 Prev | Next Part: 83251100 *Qty: 0 LH CONNECTION Call
Location: 69 Prev | Next Part: 83249300 *Qty: 0 RH CASTING CONNECTOR PROFILE Call
Location: 70 Prev | Next Part: 83249400 *Qty: 0 LH CASTING CONNECTOR PROFILE Call
Location: 71 Prev | Next Part: 84019100 *Qty: 0 LH REAR LATERAL PARTITION Call
Location: 71 Prev | Next Part: 84019000 *Qty: 0 RH REAR LATERAL PARTITION Call
Location: 72 Prev | Next Part: 82640400 *Qty: 0 LH EXTERNAL LATERAL SHIELD Call
Location: 72 Prev | Next Part: 82599700 *Qty: 0 RH EXTERNAL LATERAL SHIELD Call
Location: 73 Prev | Next Part: 84018900 *Qty: 0 LH CENTRAL LATERAL PARTITION Call
Location: 73 Prev | Next Part: 84018800 *Qty: 0 RH CENTRAL LATERAL PARTITION Call
Location: 74 Prev | Next Part: 277951 *Qty: 0 RH WINDSCREEN WIPER FASTENER BRACKET -Applicable for GD- Call
Location: 75 Prev | Next Part: 84304300 *Qty: 0 RH BRACKET Call
Location: 76 Prev | Next Part: 84304400 *Qty: 0 LH BRACKET Call
Location: 77 Prev | Next Part: 281012 *Qty: 0 NAVIGATOR BRACKET -Applicable for U.K., J- Call
Location: 78 Prev | Next Part: 281013 *Qty: 0 REAR NAVIGATOR BRACKET -Applicable for U.K., J- Call
Location: 79 Prev | Next Part: 14304187 *Qty: 0 SCREW -M5 X 12- $0.90
Location: 80 Prev | Next Part: 14197890 *Qty: 0 CAGE NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
