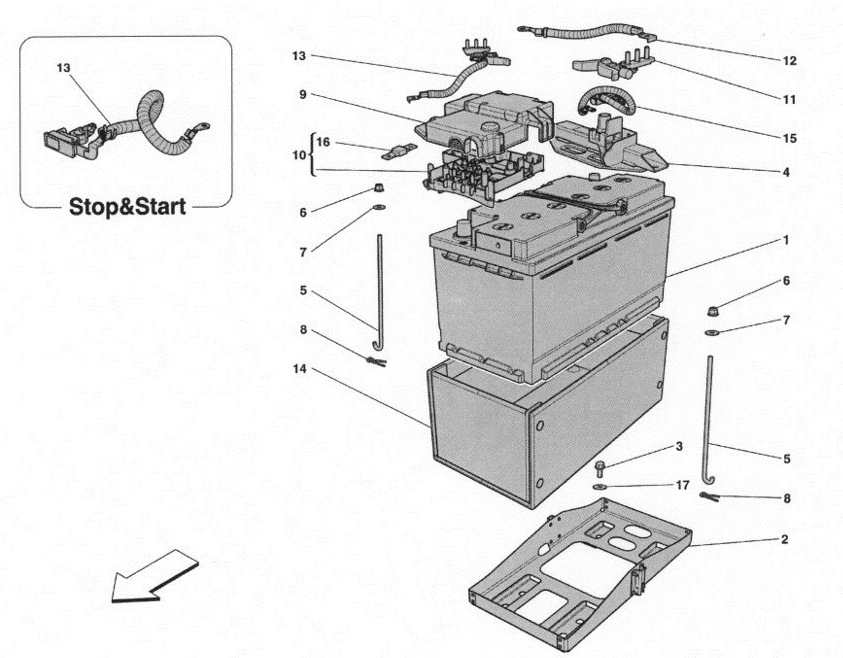

BATTERY

Go to Split View

BATTERY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 256381 *Qty: 0 BATTERY -95 Ah- Call
Location: 2 Prev | Next Part: 272263 *Qty: 0 BATTERY MOUNTING $355.02
Location: 3 Prev | Next Part: 16287127 *Qty: 0 SCREW -M8 X 20- -No longer supplied, replaced by 16287024 and 16044321- $0.90
Location: 3 Prev | Next Part: 16287024 *Qty: 0 SCREW -M8 X 16- $0.90
Location: 3 Prev | Next Part: 16044321 *Qty: 0 SCREW -M8 X 55- $0.90
Location: 4 Prev | Next Part: 272464 *Qty: 0 BATTERY RETAINER COMPLETE WITH NEGATIVE TERMINAL $213.61
Location: 5 Prev | Next Part: 245743 *Qty: 0 TIE-ROD $16.84
Location: 6 Prev | Next Part: 228265 *Qty: 0 NUT $0.90
Location: 7 Prev | Next Part: 12643724 *Qty: 0 WASHER $0.90
Location: 8 Prev | Next Part: 10795206 *Qty: 0 SPLIT PIN $0.90
Location: 9 Prev | Next Part: 251161 *Qty: 0 COVER $40.62
Location: 10 Prev | Next Part: 277359 *Qty: 0 BATTERY ECU Superseded
Location: 11 Prev | Next Part: 10816794 *Qty: 0 BATTERY DISCONNECTOR TERMINAL CLAMP WITH LEVER $28.34
Location: 12 Prev | Next Part: 273382 *Qty: 0 GROUND CABLE Call
Location: 13 Prev | Next Part: 274256 *Qty: 0 BATTERY GROUND / FALSE TERMINAL CABLE -Not for Stop&Start- Call
Location: 13 Prev | Next Part: 254264 *Qty: 0 BATTERY SENSOR -Applicable for Stop&Start- $382.35
Location: 14 Prev | Next Part: 251793 *Qty: 0 HEAT SHIELD Call
Location: 15 Prev | Next Part: 273942 *Qty: 0 COMPL. BATTERY MASTER SWITCH - CHASSIS GROUND CABLE -Not for GD- Call
Location: 15 Prev | Next Part: 273569 *Qty: 0 COMPL. BATTERY MASTER SWITCH - CHASSIS GROUND CABLE -Applicable for GD- Call
Location: 16 Prev | Next Part: 278366 *Qty: 0 FUSE VALVE -Powerval CAL5- $13.21
Location: 17 Prev | Next Part: 12646778 *Qty: 0 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
