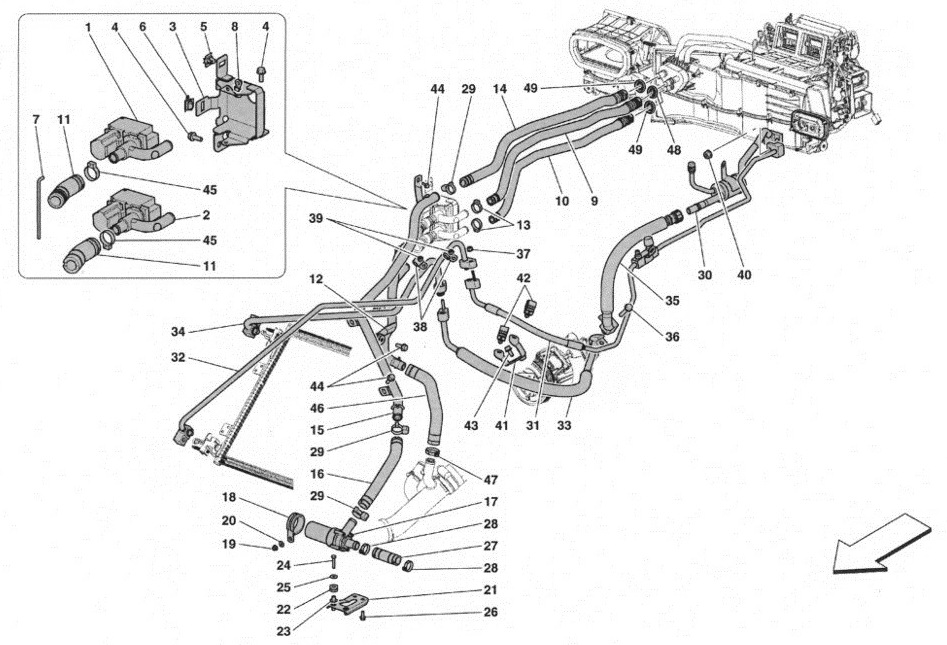

AC SYSTEM - WATER AND FREON

Go to Split View

AC SYSTEM - WATER AND FREON

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67635900 *Qty: 0 RH CYLINDER BANK TGK VALVE $234.27
Location: 2 Prev | Next Part: 67444900 *Qty: 0 LH CYLINDER BANK TGK VALVE $235.21
Location: 3 Prev | Next Part: 84066200 *Qty: 0 TGK VALVE MOUNTING BRACKET Call
Location: 4 Prev | Next Part: 16286024 *Qty: 0 SCREW -M6 X 16- $0.90
Location: 5 Prev | Next Part: 253769 *Qty: 0 CLIP $0.90
Location: 6 Prev | Next Part: 252473 *Qty: 0 CLIP Call
Location: 7 Prev | Next Part: 67933600 *Qty: 0 TGK VALVE FASTENER ROD $2.17
Location: 8 Prev | Next Part: 64215300 *Qty: 0 TIE-ROD RETAINER CLIP $0.90
Location: 9 Prev | Next Part: 266390 *Qty: 0 PIPE FROM HEATER TO UPPER TGK VALVE Call
Location: 10 Prev | Next Part: 266391 *Qty: 0 PIPE FROM HEATER TO LOWER TGK VALVE Call
Location: 11 Prev | Next Part: 267540 *Qty: 0 CONNECTOR PIPE Call
Location: 12 Prev | Next Part: 272507 *Qty: 0 PIPE FROM TGK TO ENGINE Call
Location: 13 Prev | Next Part: 13432670 *Qty: 0 COLLAR $0.90
Location: 14 Prev | Next Part: 276915 *Qty: 0 PIPE FROM PUMP TO AC UNIT $143.19
Location: 15 Prev | Next Part: 271752 *Qty: 0 METAL PIPE TO PUMP Call
Location: 16 Prev | Next Part: 267538 *Qty: 0 CONNECTOR PIPE Call
Location: 17 Prev | Next Part: 65460300 *Qty: 0 WATER RECIRCULATION PUMP $270.53
Location: 18 Prev | Next Part: 107002 *Qty: 0 BRACKET WITH SHEATH $33.45
Location: 19 Prev | Next Part: 14059214 *Qty: 0 NUT $0.90
Location: 20 Prev | Next Part: 12620477 *Qty: 0 WASHER $0.90
Location: 21 Prev | Next Part: 268073 *Qty: 0 PUMP MOUNTING BRACKET Call
Location: 22 Prev | Next Part: 103549 *Qty: 0 GROMMET $0.90
Location: 23 Prev | Next Part: 149707 *Qty: 0 SHIM $1.45
Location: 24 Prev | Next Part: 10902824 *Qty: 0 SCREW -M6 X 30- $0.90
Location: 25 Prev | Next Part: 12643724 *Qty: 0 WASHER $0.90
Location: 26 Prev | Next Part: 16286024 *Qty: 0 SCREW -M6 X 16- $0.90
Location: 27 Prev | Next Part: 260083 *Qty: 0 CONNECTOR PIPE $44.05
Location: 28 Prev | Next Part: 13432970 *Qty: 0 COLLAR $1.90
Location: 29 Prev | Next Part: 13097190 *Qty: 0 COLLAR $1.33
Location: 30 Prev | Next Part: 266282 *Qty: 0 PIPE WITH JACKET Call
Location: 31 Prev | Next Part: 266283 *Qty: 0 PIPE WITH FILLER $722.55
Location: 32 Prev | Next Part: 268518 *Qty: 0 PIPE FROM CONDENSER TO DISCONNECTOR UNION $198.26
Location: 33 Prev | Next Part: 268369 *Qty: 0 PIPE FROM COMPRESSOR TO DISCONNECTOR UNION Call
Location: 34 Prev | Next Part: 268519 *Qty: 0 PIPE FROM DISCONNECTOR UNION TO CONDENSER $177.11
Location: 35 Prev | Next Part: 257933 *Qty: 0 PIPE BETWEEN DISCONNECTOR UNION-COMPRESSOR $339.39
Location: 36 Prev | Next Part: 16044024 *Qty: 0 SCREW -M8 X 40- $0.90
Location: 37 Prev | Next Part: 14040614 *Qty: 0 NUT $0.90
Location: 38 Prev | Next Part: 10441290 *Qty: 0 BRACKET WITH SHEATH -D. 10- $0.90
Location: 38 Prev | Next Part: 10441390 *Qty: 0 BRACKET WITH SHEATH -D. 12- $0.90
Location: 39 Prev | Next Part: 13046012 *Qty: 0 NUT Call
Location: 40 Prev | Next Part: 14066021 *Qty: 0 NUT $4.11
Location: 41 Prev | Next Part: 268487 *Qty: 0 BRACKET -Fastening AC pipes to diagonal brace- Call
Location: 42 Prev | Next Part: 259508 *Qty: 0 CLIP $0.90
Location: 43 Prev | Next Part: 231616 *Qty: 0 SCREW -M6 X 14- $0.90
Location: 44 Prev | Next Part: 16286024 *Qty: 0 SCREW -M6 X 16- $0.90
Location: 45 Prev | Next Part: 178053 *Qty: 0 CLAMP $1.78
Location: 46 Prev | Next Part: 273206 *Qty: 0 CONNECTOR PIPE Call
Location: 47 Prev | Next Part: 178053 *Qty: 0 CLAMP $1.78
Location: 48 Prev | Next Part: 81970900 *Qty: 0 GASKET $10.94
Location: 49 Prev | Next Part: 81895900 *Qty: 0 GASKET $11.04

* Quantity shown indicates the number of pieces used in the diagram.
