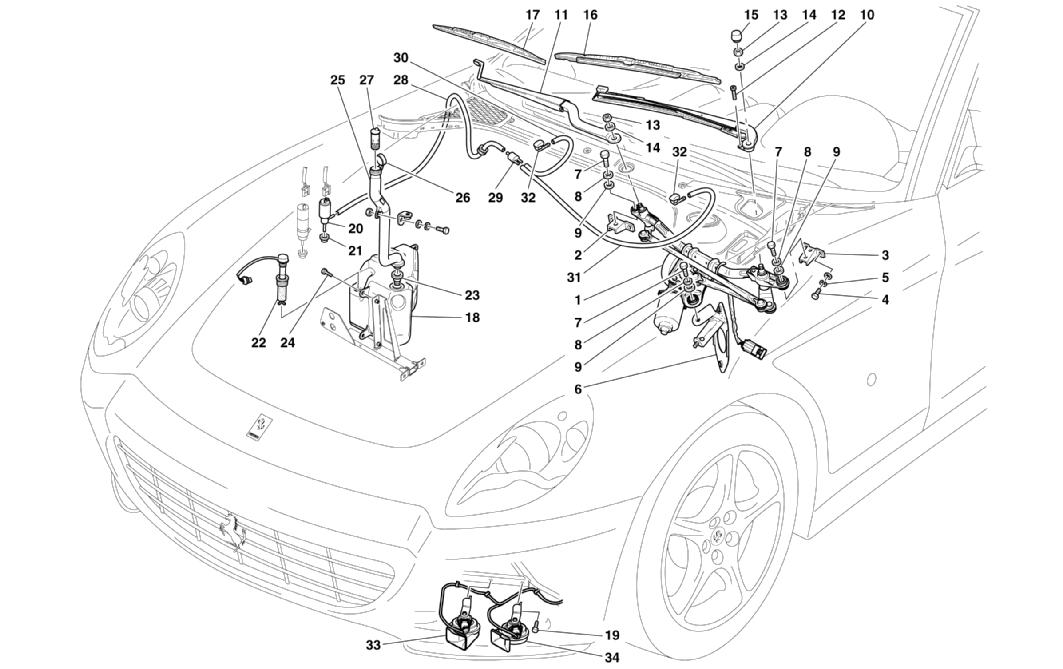

WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

Go to Split View

WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67842900 *Qty: 1 COMPLETE WINDSHIELD WIPER LEVERAGE -Valid for GD Call
Location: 1 Prev | Next Part: 67742400 *Qty: 1 COMPLETE WINDSHIELD WIPER LEVERAGE -Not for GD $915.13
Location: 2 Prev | Next Part: 67843400 *Qty: 1 CENTRAL BRACKET -Valid for GD Call
Location: 2 Prev | Next Part: 67329300 *Qty: 1 CENTRAL BRACKET -Not for GD $10.64
Location: 3 Prev | Next Part: 67158100 *Qty: 1 SIDE BRACKET -Not for GD $20.66
Location: 3 Prev | Next Part: 67843500 *Qty: 1 SIDE BRACKET -Valid for GD Call
Location: 4 Prev | Next Part: 16043324 *Qty: 4 SCREW $0.90
Location: 5 Prev | Next Part: 12625224 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 67843600 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET -Valid for GD $158.03
Location: 6 Prev | Next Part: 67158000 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET -Not for GD $177.42
Location: 7 Prev | Next Part: 10902724 *Qty: 3 SCREW $0.90
Location: 8 Prev | Next Part: 11194674 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 14498804 *Qty: 3 WASHER -Not as spare part -Replaced by 12640624 Superseded
Location: 9 Prev | Next Part: 12640624 *Qty: 3 WASHER $0.90
Location: 10 Prev | Next Part: 67264600 *Qty: 1 DRIVER SIDE ARM -Not for GD $198.87
Location: 10 Prev | Next Part: 67843000 *Qty: 1 DRIVER SIDE ARM -Valid for GD Call
Location: 11 Prev | Next Part: 67843100 *Qty: 1 PASSENGER SIDE ARM -Valid for GD $149.65
Location: 11 Prev | Next Part: 67264700 *Qty: 1 PASSENGER SIDE ARM -Not for GD $62.09
Location: 12 Prev | Next Part: 67929800 *Qty: 1 SCREW Call
Location: 13 Prev | Next Part: 12164714 *Qty: 2 NUT -Not as spare part -Replaced by 10791014 $0.90
Location: 13 Prev | Next Part: 10791014 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 65917600 *Qty: 2 WASHER -Not as spare part -Replaced by 12601474 $1.09
Location: 15 Prev | Next Part: 15811887 *Qty: 2 BOOT $4.15
Location: 16 Prev | Next Part: 67843200 *Qty: 1 DRIVER SIDE WIPER BRUSH -Valid for GD $118.69
Location: 16 Prev | Next Part: 67264800 *Qty: 1 DRIVER SIDE WIPER BRUSH -Not for GD $99.22
Location: 17 Prev | Next Part: 67843300 *Qty: 1 PASSENGER SIDE WIPER BRUSH -Valid for GD $55.68
Location: 17 Prev | Next Part: 66981000 *Qty: 1 PASSENGER SIDE WIPER BRUSH -Not for GD $32.86
Location: 18 Prev | Next Part: 67892800 *Qty: 1 WINDSHIELD WIPER CONTAINER -Valid for USA and CDN $254.22
Location: 18 Prev | Next Part: 67892700 *Qty: 1 WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER -Not for USA and CDN $195.76
Location: 19 Prev | Next Part: 13836971 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 65358700 *Qty: 1 WIPER PUMP $74.04
Location: 21 Prev | Next Part: 65775100 *Qty: 1 GASKET $1.90
Location: 22 Prev | Next Part: 65758700 *Qty: 1 LIQUID SENSOR $95.66
Location: 23 Prev | Next Part: 65581700 *Qty: 1 GASKET $6.57
Location: 24 Prev | Next Part: 13836971 *Qty: 4 SCREW $0.90
Location: 25 Prev | Next Part: 67892900 *Qty: 1 FILLER TUBE $89.95
Location: 26 Prev | Next Part: 66421300 *Qty: 1 PLUG $4.29
Location: 27 Prev | Next Part: 66421400 *Qty: 1 FILTER $23.45
Location: 28 Prev | Next Part: 66981300 *Qty: 1 PIPE FROM ELECTRIC PUMP TO VALVE $17.33
Location: 29 Prev | Next Part: 61648100 *Qty: 1 NONRETURN VALVE $39.57
Location: 30 Prev | Next Part: 66981400 *Qty: 1 PIPE FROM VALVE TO R.H. JET $4.58
Location: 31 Prev | Next Part: 66981500 *Qty: 1 PIPE FROM VALVE TO L.H. JET $16.76
Location: 32 Prev | Next Part: 65191000 *Qty: 2 JET FOR WINDOW WASHING $3.86
Location: 33 Prev | Next Part: 191456 *Qty: 1 R.H. ELECTRO-PNEUMATIC HORN $25.40
Location: 34 Prev | Next Part: 193982 *Qty: 1 L.H. ELECTRO-PNEUMATIC HORN $25.40

* Quantity shown indicates the number of pieces used in the diagram.
