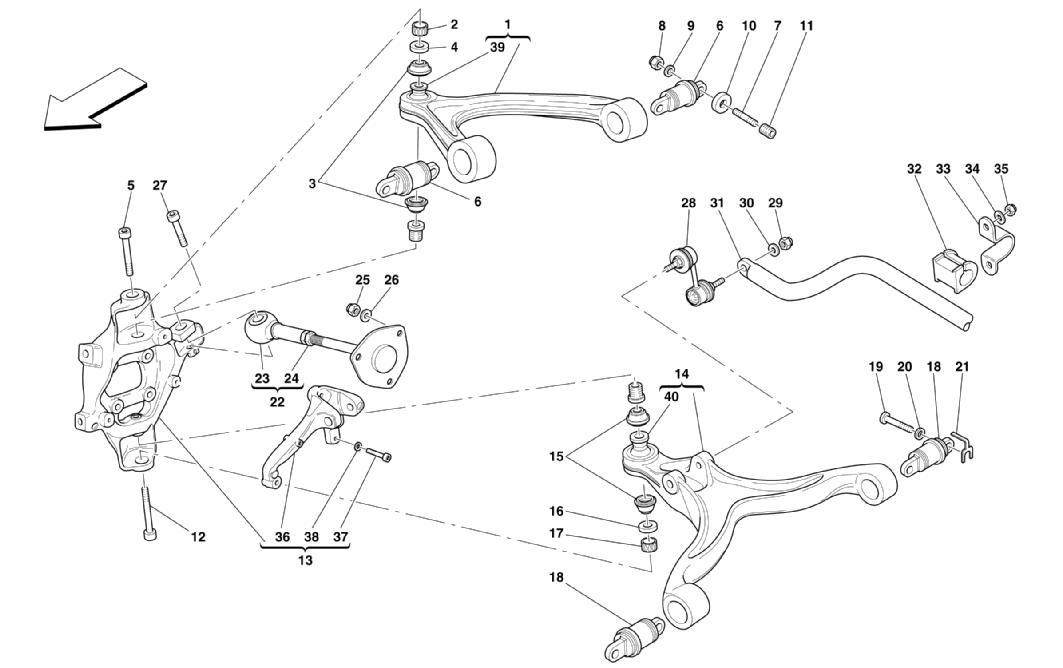

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

Go to Split View

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 200945 *Qty: 2 COMPLETE UPPER LEVER $771.05
Location: 2 Prev | Next Part: 179555 *Qty: 2 COMPENSATOR RING $5.99
Location: 3 Prev | Next Part: 171848 *Qty: 4 BOOT $42.00
Location: 4 Prev | Next Part: 190274 *Qty: 2 SPACER $4.21
Location: 5 Prev | Next Part: 188581 *Qty: 2 SCREW $25.75
Location: 6 Prev | Next Part: 209167 *Qty: 4 FLAMBLOC -Replace together $291.46
Location: 7 Prev | Next Part: 170155 *Qty: 8 THREADED BAR $2.91
Location: 8 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 9 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 10 Prev | Next Part: 124338 *Qty: 8 WASHER $3.69
Location: 11 Prev | Next Part: 13582210 *Qty: 8 THREADED INSERT Call
Location: 12 Prev | Next Part: 190272 *Qty: 2 SCREW $37.24
Location: 13 Prev | Next Part: 190751 *Qty: 1 L.H. REAR STEERING KNUCKLE $1,611.97
Location: 13 Prev | Next Part: 190750 *Qty: 1 R.H. REAR STEERING KNUCKLE $1,366.93
Location: 14 Prev | Next Part: 207581 *Qty: 2 COMPLETE LOWER LEVER $771.05
Location: 15 Prev | Next Part: 171847 *Qty: 4 BOOT $42.00
Location: 16 Prev | Next Part: 190273 *Qty: 2 SPACER $4.09
Location: 17 Prev | Next Part: 179554 *Qty: 2 COMPENSATOR RING $6.21
Location: 18 Prev | Next Part: 196789 *Qty: 4 FLAMBLOC $322.82
Location: 19 Prev | Next Part: 182215 *Qty: 8 SCREW $8.56
Location: 20 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 21 Prev | Next Part: 200938 *Qty: 8 SPACER -Possible fitting $3.01
Location: 21 Prev | Next Part: 203312 *Qty: 8 SPACER -Th.1 mm -Possible fitting $3.01
Location: 21 Prev | Next Part: 203314 *Qty: 8 SPACER -Th.2 mm -Possible fitting $3.01
Location: 21 Prev | Next Part: 203316 *Qty: 8 SPACER -Th.3 mm -Possible fitting $3.01
Location: 21 Prev | Next Part: 203313 *Qty: 8 SPACER -Th.1,5 mm -Possible fitting $3.01
Location: 21 Prev | Next Part: 203315 *Qty: 8 SPACER -Th.2,5 mm -Possible fitting $3.01
Location: 22 Prev | Next Part: 194792 *Qty: 2 COMPLETE TIE ROD Superseded
Location: 23 Prev | Next Part: 194794 *Qty: 2 ROD END FOR TIE ROD $260.00
Location: 24 Prev | Next Part: 204248 *Qty: 2 NUT $29.39
Location: 25 Prev | Next Part: 104030 *Qty: 6 NUT $0.90
Location: 26 Prev | Next Part: 12647604 *Qty: 6 WASHER $0.90
Location: 27 Prev | Next Part: 179556 *Qty: 2 SCREW $33.86
Location: 28 Prev | Next Part: 168993 *Qty: 2 BALL TIE ROD $96.94
Location: 29 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 199593 *Qty: 1 ANTI-ROLL BAR $616.31
Location: 32 Prev | Next Part: 196385 *Qty: 2 BAR BUFFER $49.36
Location: 33 Prev | Next Part: 133802 *Qty: 2 PLATE $11.24
Location: 34 Prev | Next Part: 113113 *Qty: 4 WASHER $1.71
Location: 35 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 36 Prev | Next Part: 205005 *Qty: 2 SHOCK ABSORBER CONNECTION SUPPORT $174.25
Location: 37 Prev | Next Part: 212601 *Qty: 2 SCREW $24.92
Location: 37 Prev | Next Part: 14312034 *Qty: 2 SCREW -Not as spare part -Replaced by 212601 Call
Location: 38 Prev | Next Part: 11194174 *Qty: 2 WASHER -Not as spare part $6.42
Location: 39 Prev | Next Part: 203633 *Qty: 2 BALL JOINT Call
Location: 39 Prev | Next Part: 178929 *Qty: 2 BALL JOINT -Not as spare part -Replaced by 203633 Superseded
Location: 40 Prev | Next Part: 203632 *Qty: 2 BALL JOINT Call

* Quantity shown indicates the number of pieces used in the diagram.
