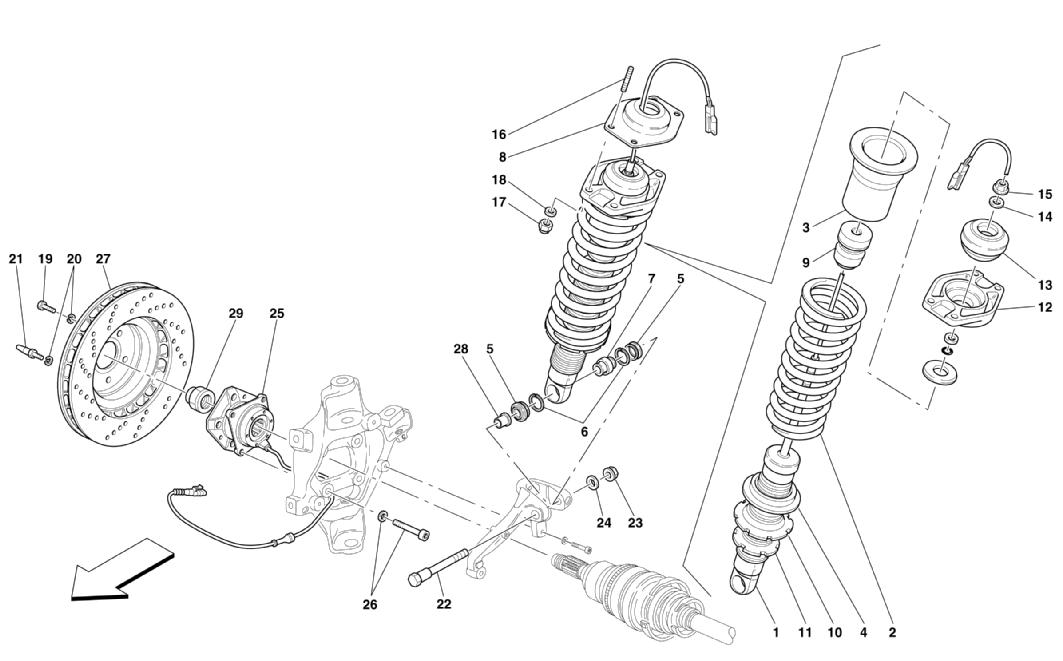

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 190366 *Qty: 2 REAR SHOCK ABSORBER -Replace together -Not as spare part -Replaced by 214591 Call
Location: 1 Prev | Next Part: 214591 *Qty: 2 REAR SHOCK ABSORBER -Replace together $3,104.88
Location: 2 Prev | Next Part: 186570 *Qty: 2 SPRING Call
Location: 3 Prev | Next Part: 186489 *Qty: 2 UPPER SPACER $13.81
Location: 4 Prev | Next Part: 186487 *Qty: 2 LOWER SPACER $11.33
Location: 5 Prev | Next Part: 153286 *Qty: 4 RUBBER $5.00
Location: 6 Prev | Next Part: 145478 *Qty: 4 FLEXIBLE RING $2.62
Location: 7 Prev | Next Part: 153285 *Qty: 2 BALL JOINT -Valid for shock absorber 190366 Ref.1 $486.85
Location: 7 Prev | Next Part: 157630 *Qty: 2 BALL JOINT -Valid for shock absorber 214591 Ref.1 $72.50
Location: 8 Prev | Next Part: 190332 *Qty: 2 UPPER CUP $10.08
Location: 9 Prev | Next Part: 189997 *Qty: 2 SHOCK ABSORBER PAD $139.69
Location: 10 Prev | Next Part: 186486 *Qty: 2 SPACER Call
Location: 11 Prev | Next Part: 174726 *Qty: 2 RING NUT $53.62
Location: 12 Prev | Next Part: 190330 *Qty: 2 LOWER CUP $29.79
Location: 13 Prev | Next Part: 204606 *Qty: 2 HYPERBLOCK $65.54
Location: 14 Prev | Next Part: 10520124 *Qty: 2 WASHER $1.02
Location: 15 Prev | Next Part: 183417 *Qty: 2 NUT -Not as spare part -Replaced by 203795 $1.94
Location: 15 Prev | Next Part: 203795 *Qty: 2 NUT $3.01
Location: 16 Prev | Next Part: 13543634 *Qty: 8 STUD $1.24
Location: 17 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 18 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 19 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING SCREW $0.90
Location: 22 Prev | Next Part: 190530 *Qty: 2 SCREW $56.31
Location: 23 Prev | Next Part: 14058721 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 155002 *Qty: 2 WASHER $4.55
Location: 25 Prev | Next Part: 197232 *Qty: 2 BEARING FOR WHEEL $906.03
Location: 26 Prev | Next Part: 190723 *Qty: 8 SCREW WITH WASHER $12.79
Location: 27 Prev | Next Part: 198488 *Qty: 2 REAR BRAKE DISC $651.79
Location: 28 Prev | Next Part: 190702 *Qty: 2 SPACER $17.18
Location: 29 Prev | Next Part: 203780 *Qty: 2 NUT $29.41

* Quantity shown indicates the number of pieces used in the diagram.
