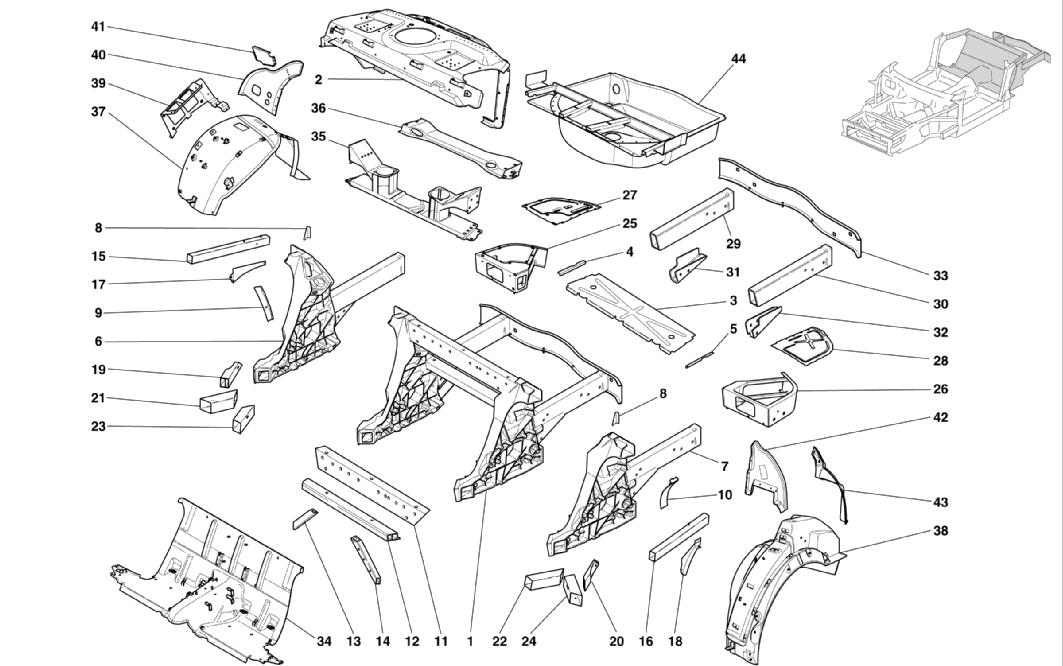

REAR STRUCTURES AND COMPONENTS

Go to Split View

REAR STRUCTURES AND COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 197204 *Qty: 1 REAR MODULE Call
Location: 2 Prev | Next Part: 66994000 *Qty: 1 REAR WINDOW PANEL Call
Location: 3 Prev | Next Part: 195882 *Qty: 1 FUEL TANK COMPARTMENT SEAL Call
Location: 4 Prev | Next Part: 67330000 *Qty: 1 R.H. ANGLE PIECE Call
Location: 5 Prev | Next Part: 67330100 *Qty: 1 L.H. ANGLE PIECE Call
Location: 6 Prev | Next Part: 213758 *Qty: 1 R.H. REAR LATERAL MODULE Call
Location: 7 Prev | Next Part: 213759 *Qty: 1 L.H. REAR LATERAL MODULE Call
Location: 8 Prev | Next Part: 67932400 *Qty: 2 BAFFLE FOR REAR UNDER WINDOW PANEL Call
Location: 9 Prev | Next Part: 67167700 *Qty: 1 R.H. BRACKET Call
Location: 10 Prev | Next Part: 67167800 *Qty: 1 L.H. BRACKET Call
Location: 11 Prev | Next Part: 187309 *Qty: 1 CROSS MEMBER Call
Location: 12 Prev | Next Part: 187312 *Qty: 1 CROSS MEMBER CONNECTION FUSIONS Call
Location: 13 Prev | Next Part: 189652 *Qty: 1 R.H. ARM Call
Location: 14 Prev | Next Part: 189651 *Qty: 1 L.H. ARM Call
Location: 15 Prev | Next Part: 187305 *Qty: 1 R.H. UPPER DIAGONAL Call
Location: 16 Prev | Next Part: 187304 *Qty: 1 L.H. UPPER DIAGONAL Call
Location: 17 Prev | Next Part: 67172900 *Qty: 1 R.H. INSERT Call
Location: 18 Prev | Next Part: 67173000 *Qty: 1 L.H. INSERT Call
Location: 19 Prev | Next Part: 195808 *Qty: 1 R.H. BRACKET FOR SAFETY BELT Call
Location: 20 Prev | Next Part: 195807 *Qty: 1 L.H. BRACKET FOR SAFETY BELT Call
Location: 21 Prev | Next Part: 187292 *Qty: 1 R.H. LOWER DIAGONAL Call
Location: 22 Prev | Next Part: 187291 *Qty: 1 L.H. LOWER DIAGONAL Call
Location: 23 Prev | Next Part: 187280 *Qty: 1 R.H. INNER REAR TORQUE BOX Call
Location: 24 Prev | Next Part: 187279 *Qty: 1 L.H. INNER REAR TORQUE BOX Call
Location: 25 Prev | Next Part: 66992300 *Qty: 1 R.H. REAR FRAME Call
Location: 26 Prev | Next Part: 66992400 *Qty: 1 L.H. REAR FRAME Call
Location: 27 Prev | Next Part: 67149900 *Qty: 1 R.H. LATERAL PAVEMENT Call
Location: 28 Prev | Next Part: 67150000 *Qty: 1 L.H. LATERAL PAVEMENT Call
Location: 29 Prev | Next Part: 187300 *Qty: 1 R.H. SPRAG $696.22
Location: 30 Prev | Next Part: 187299 *Qty: 1 L.H. SPRAG $696.22
Location: 31 Prev | Next Part: 187303 *Qty: 1 R.H. REINFORCEMENT Call
Location: 32 Prev | Next Part: 187302 *Qty: 1 L.H. REINFORCEMENT Call
Location: 33 Prev | Next Part: 187301 *Qty: 1 REAR CROSS MEMBER Call
Location: 34 Prev | Next Part: 8189263 *Qty: 1 COMPLETE BENCH Call
Location: 35 Prev | Next Part: 189265 *Qty: 1 GEARBOX FRAME Call
Location: 36 Prev | Next Part: 200197 *Qty: 1 REAR CROSS MEMBER Call
Location: 37 Prev | Next Part: 66989000 *Qty: 1 R.H. REAR WHEELHOUSE $878.16
Location: 38 Prev | Next Part: 66989100 *Qty: 1 L.H. REAR WHEELHOUSE -Not for F1 $1,100.26
Location: 38 Prev | Next Part: 67446100 *Qty: 1 L.H. REAR WHEELHOUSE -Valid for F1 Call
Location: 39 Prev | Next Part: 67440100 *Qty: 1 AMPLIFIER SUPPORTING BRACKET Call
Location: 40 Prev | Next Part: 67182900 *Qty: 1 R.H. REAR LATERAL PANEL $164.62
Location: 41 Prev | Next Part: 67921700 *Qty: 1 R.H. SEAL Call
Location: 42 Prev | Next Part: 67183100 *Qty: 1 L.H. REAR LATERAL FRONT PANEL Call
Location: 43 Prev | Next Part: 67183000 *Qty: 1 L.H. REAR LATERAL PANEL Call
Location: 44 Prev | Next Part: 68810400 *Qty: 1 COMPLETE SPARE WHEEL STEP Call

* Quantity shown indicates the number of pieces used in the diagram.
