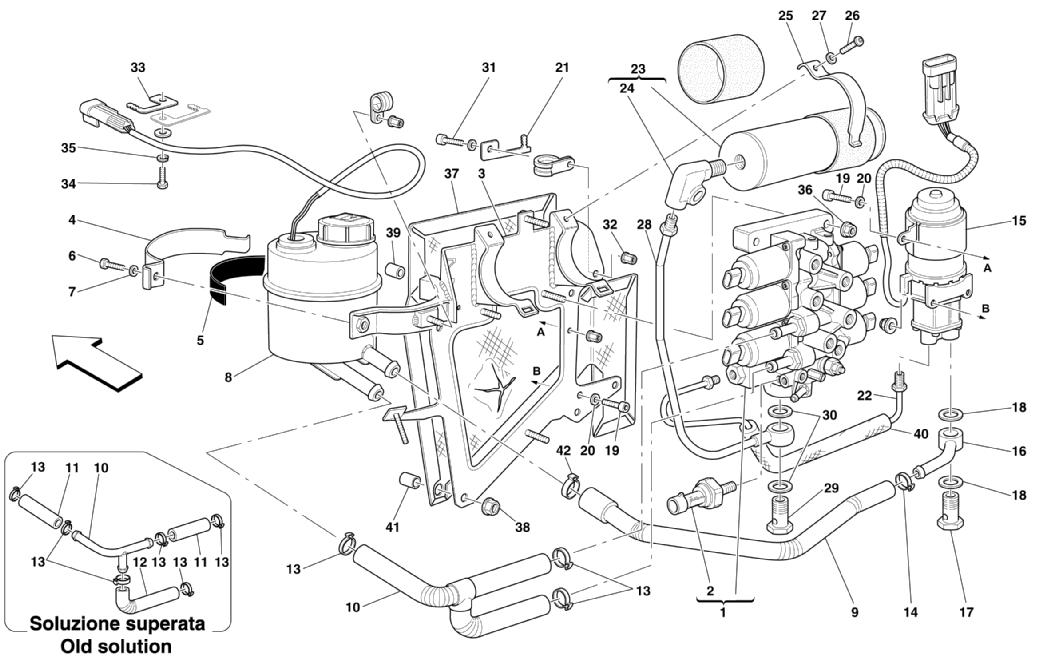

POWER UNIT AND TANK -VALID FOR F1-

Go to Split View

POWER UNIT AND TANK -VALID FOR F1-

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 195408 *Qty: 1 F1 CLUTCH HYDRAULIC CONTROL $12,352.35
Location: 1 Prev | Next Part: 179140 *Qty: 1 POWER UNIT $3,409.15
Location: 2 Prev | Next Part: 190662 *Qty: 1 PRESSURE SENSOR Call
Location: 3 Prev | Next Part: 217011 *Qty: 1 POWER UNIT SUPPORTING BRACKET Call
Location: 3 Prev | Next Part: 195419 *Qty: 1 POWER UNIT SUPPORTING BRACKET -Valid till stock exhaustion Call
Location: 4 Prev | Next Part: 171746 *Qty: 1 SUPPORT CLAMP $28.63
Location: 5 Prev | Next Part: 183718 *Qty: 1 SMALL PLATE $3.72
Location: 6 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 8 Prev | Next Part: 188686 *Qty: 1 OIL TANK Call
Location: 9 Prev | Next Part: 216538 *Qty: 1 PIPE FROM TANK TO PUMP Call
Location: 9 Prev | Next Part: 199412 *Qty: 1 PIPE FROM TANK TO PUMP -Valid till stock exhaustion Call
Location: 10 Prev | Next Part: 195418 *Qty: 1 OIL RETURN TUBE Call
Location: 10 Prev | Next Part: 200861 *Qty: 1 OIL RETURN TUBE -Not as spare part -Replaced by 195418 Call
Location: 11 Prev | Next Part: 200858 *Qty: 2 RUBBER HOSE -Not as spare part -Replaced by 195418 ref. 10 Call
Location: 12 Prev | Next Part: 200862 *Qty: 1 LOWER RUBBER HOSE -Not as spare part -Replaced by 195418 ref. 10 Call
Location: 13 Prev | Next Part: 161490 *Qty: 6 SCREW COLLAR -Q.ty 3 with new solution 195418 ref.10 $2.55
Location: 14 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.90
Location: 15 Prev | Next Part: 213264 *Qty: 1 COMPLETE HYDRAULIC PUMP $700.00
Location: 16 Prev | Next Part: 199411 *Qty: 1 SWINGING UNION Call
Location: 17 Prev | Next Part: 10185111 *Qty: 1 UNION $5.69
Location: 18 Prev | Next Part: 10280050 *Qty: 2 GASKET Call
Location: 19 Prev | Next Part: 10902524 *Qty: 3 SCREW $0.90
Location: 20 Prev | Next Part: 14496424 *Qty: 3 WASHER Superseded
Location: 21 Prev | Next Part: 162606 *Qty: 1 CLIP $1.09
Location: 22 Prev | Next Part: 195414 *Qty: 1 PIPE FROM HYDRAULIC PUMP TO POWER UNIT $345.55
Location: 23 Prev | Next Part: 179143 *Qty: 1 ACCUMULATOR $1,196.26
Location: 24 Prev | Next Part: 179211 *Qty: 1 DUCTING $346.93
Location: 25 Prev | Next Part: 198960 *Qty: 2 CLAMP Call
Location: 26 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 14446624 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 197058 *Qty: 1 PIPE FROM ACCUMULATOR TO POWER UNIT Call
Location: 29 Prev | Next Part: 10185111 *Qty: 1 UNION $5.69
Location: 30 Prev | Next Part: 10280050 *Qty: 2 GASKET Call
Location: 31 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 32 Prev | Next Part: 14058421 *Qty: 1 NUT $1.49
Location: 33 Prev | Next Part: 162606 *Qty: 1 CLIP $1.09
Location: 34 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 36 Prev | Next Part: 175283 *Qty: 2 NUT $0.90
Location: 37 Prev | Next Part: 207359 *Qty: 1 HEAT SHIELD Call
Location: 38 Prev | Next Part: 14058521 *Qty: 4 NUT $0.92
Location: 39 Prev | Next Part: 199009 *Qty: 1 SPACER -Not as spare part -Replaced by 214620 Call
Location: 39 Prev | Next Part: 214620 *Qty: 1 SPACER $2.85
Location: 40 Prev | Next Part: 209707 *Qty: 1 PIPE PROTECTION -Not as spare part -Replaced by 209611 Call
Location: 40 Prev | Next Part: 209611 *Qty: 1 PIPE PROTECTION $116.89
Location: 41 Prev | Next Part: 199010 *Qty: 3 SPACER -Not as spare part -Replaced by 214621 Call
Location: 41 Prev | Next Part: 214621 *Qty: 3 SPACER $2.94
Location: 42 Prev | Next Part: 161490 *Qty: 1 SCREW COLLAR $2.55

* Quantity shown indicates the number of pieces used in the diagram.
