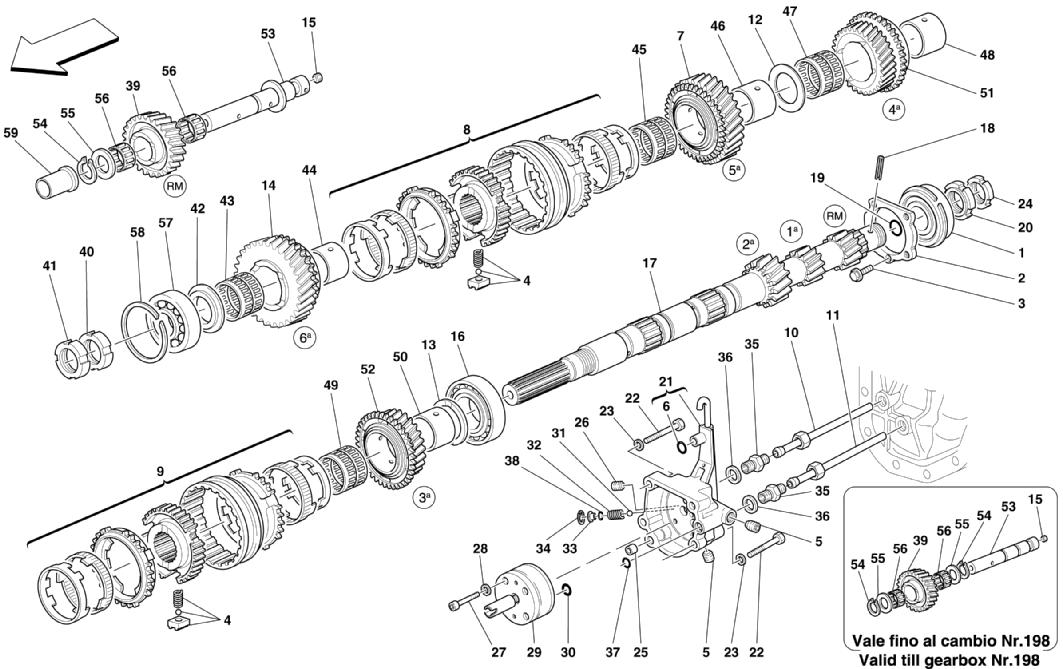

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

Go to Split View

MAIN SHAFT GEARS AND CLUTCH OIL PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 196155 *Qty: 1 COMPLETE OIL PUMP BODY $599.25
Location: 1 Prev | Next Part: 144502 *Qty: 1 BEARING FOR MAIN SHAFT PUMP OIL SIDE $200.76
Location: 2 Prev | Next Part: 144444 *Qty: 1 SUPPORT RING $76.30
Location: 3 Prev | Next Part: 16287124 *Qty: 1 SCREW $1.49
Location: 4 Prev | Next Part: 194029 *Qty: 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $16.09
Location: 5 Prev | Next Part: 10269550 *Qty: 2 PLUG $0.93
Location: 6 Prev | Next Part: 14452981 *Qty: 1 O.R. GASKET $1.81
Location: 7 Prev | Next Part: 197563 *Qty: 1 PINION FOR 5th GEAR $1,266.15
Location: 8 Prev | Next Part: 189689 *Qty: 1 5th AND 6th GEAR COMPLETE SYNCHRONIZER $881.62
Location: 9 Prev | Next Part: 189657 *Qty: 1 3th AND 4th GEAR COMPLETE SYNCHRONIZER $831.71
Location: 10 Prev | Next Part: 204984 *Qty: 1 OIL RETURN PIPE $51.84
Location: 11 Prev | Next Part: 204983 *Qty: 1 OIL DELIVERY PIPE $51.84
Location: 12 Prev | Next Part: 195810 *Qty: 1 RING $30.23
Location: 13 Prev | Next Part: 189700 *Qty: 1 RING $47.03
Location: 14 Prev | Next Part: 189693 *Qty: 1 PINION FOR 6th GEAR $884.56
Location: 15 Prev | Next Part: 189573 *Qty: 1 PLUG $7.18
Location: 16 Prev | Next Part: 131056 *Qty: 1 ROLLER BEARING $202.37
Location: 17 Prev | Next Part: 210495 *Qty: 1 MAIN SHAFT FOR GEAR LEVER -Valid from engine Nr. 90178 (gearbox Nr. 3) $4,480.11
Location: 17 Prev | Next Part: 189526 *Qty: 1 MAIN SHAFT FOR GEAR LEVER -Valid till engine Nr. 90177 -Not as spare part $1,403.89
Location: 18 Prev | Next Part: 14601270 *Qty: 1 FLEXIBLE PIN $0.90
Location: 19 Prev | Next Part: 109724 *Qty: 1 O.R. GASKET $1.63
Location: 20 Prev | Next Part: 163670 *Qty: 1 RING NUT $76.23
Location: 21 Prev | Next Part: 195013 *Qty: 1 OIL PUMP BODY -With complete oil pump body Call
Location: 22 Prev | Next Part: 16044321 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 163684 *Qty: 1 RING NUT $24.92
Location: 25 Prev | Next Part: 102704 *Qty: 1 CENTERING DOWEL $19.74
Location: 26 Prev | Next Part: 14326150 *Qty: 1 PLUG $0.90
Location: 27 Prev | Next Part: 14303521 *Qty: 4 SCREW Call
Location: 28 Prev | Next Part: 10571379 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 185458 *Qty: 1 COMPLETE BEARBOX OIL PUMP $461.98
Location: 30 Prev | Next Part: 137192 *Qty: 1 O.R. GASKET $0.90
Location: 31 Prev | Next Part: 135770 *Qty: 1 BALL $0.90
Location: 32 Prev | Next Part: 171889 *Qty: 1 SPRING $4.77
Location: 33 Prev | Next Part: 102591 *Qty: 1 SPACER $8.41
Location: 34 Prev | Next Part: 11057576 *Qty: 1 SEEGER RING $0.90
Location: 35 Prev | Next Part: 150577 *Qty: 2 UNION $25.26
Location: 36 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 37 Prev | Next Part: 137192 *Qty: 1 GASKET $0.90
Location: 38 Prev | Next Part: 14453281 *Qty: 1 GASKET $1.81
Location: 39 Prev | Next Part: 210496 *Qty: 1 IDLE GEAR FOR REVERSE -Valid from engine Nr. 90178 (gearbox Nr. 3) $176.85
Location: 39 Prev | Next Part: 189570 *Qty: 1 IDLE GEAR FOR REVERSE -Valid till engine Nr. 90177 -Not as spare part $1,099.37
Location: 40 Prev | Next Part: 189707 *Qty: 1 RING NUT $66.86
Location: 41 Prev | Next Part: 189708 *Qty: 1 RING NUT $100.34
Location: 42 Prev | Next Part: 189704 *Qty: 1 SPACER -Th. mm 3,9 $33.59
Location: 42 Prev | Next Part: 189709 *Qty: 1 SPACER -Th. mm 4,15 $39.62
Location: 43 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $30.58
Location: 44 Prev | Next Part: 189705 *Qty: 1 BUSHING $79.21
Location: 45 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $30.58
Location: 46 Prev | Next Part: 195809 *Qty: 1 BUSHING $141.87
Location: 47 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $30.58
Location: 48 Prev | Next Part: 195809 *Qty: 1 BUSHING $141.87
Location: 49 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $30.58
Location: 50 Prev | Next Part: 189656 *Qty: 1 BUSHING $67.19
Location: 51 Prev | Next Part: 197562 *Qty: 1 PINION FOR 4th GEAR $1,089.50
Location: 52 Prev | Next Part: 189659 *Qty: 1 PINION FOR 3RD GEAR $884.56
Location: 53 Prev | Next Part: 189574 *Qty: 1 PIN -Valid till gearbox Nr. 198 $49.39
Location: 53 Prev | Next Part: 211960 *Qty: 1 PIN -Valid from gearbox Nr. 199 $118.17
Location: 54 Prev | Next Part: 158272 *Qty: 2 FLEXIBLE RING -Valid till gearbox Nr. 198 $0.90
Location: 54 Prev | Next Part: 211962 *Qty: 1 FLEXIBLE RING -Valid from gearbox Nr. 199 $3.62
Location: 55 Prev | Next Part: 193892 *Qty: 2 SPACER WASHER -Th. mm. 4,1 -Q.ty 1 from gearbox Nr. 199 $36.01
Location: 55 Prev | Next Part: 193891 *Qty: 2 SPACER WASHER -Th. mm. 4,0 -Q.ty 1 from gearbox Nr. 199 $36.01
Location: 55 Prev | Next Part: 193893 *Qty: 2 SPACER WASHER -Th. mm. 3,9 -Q.ty 1 from gearbox Nr. 199 $36.01
Location: 56 Prev | Next Part: 104256 *Qty: 2 ROLLER CAGE $10.05
Location: 57 Prev | Next Part: 103030 *Qty: 1 ROLLER BEARING $262.11
Location: 58 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.27
Location: 59 Prev | Next Part: 211961 *Qty: 1 SPACER BUSHING -Valid from gearbox Nr. 199 $26.80

* Quantity shown indicates the number of pieces used in the diagram.
