LUBRICATION - OIL SUMPS AND FILTERS

Go to Split View

LUBRICATION - OIL SUMPS AND FILTERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 172465 *Qty: 1 COMPLETE OIL SUMP $1,823.16
Location: 1 Prev | Next Part: 165757 *Qty: 1 OIL SUMP -With complete oil sump Call
Location: 2 Prev | Next Part: 12601374 *Qty: 14 WASHER $0.90
Location: 3 Prev | Next Part: 101139 *Qty: 14 NUT $0.90
Location: 4 Prev | Next Part: 13971134 *Qty: 1 STUD $3.52
Location: 5 Prev | Next Part: 153423 *Qty: 1 STUD $8.43
Location: 6 Prev | Next Part: 13543424 *Qty: 12 STUD $0.90
Location: 7 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 8 Prev | Next Part: 100041 *Qty: 2 CENTERING DOWEL $9.60
Location: 9 Prev | Next Part: 13525770 *Qty: 4 THREADED INSERT $1.11
Location: 10 Prev | Next Part: 13541224 *Qty: 16 STUD $44.21
Location: 11 Prev | Next Part: 13525470 *Qty: 2 THREADED INSERT $0.90
Location: 12 Prev | Next Part: 145085 *Qty: 1 UNION $26.43
Location: 13 Prev | Next Part: 144485 *Qty: 1 GASKET $29.08
Location: 14 Prev | Next Part: 154602 *Qty: 1 SUMP COVER $1,618.16
Location: 15 Prev | Next Part: 144485 *Qty: 1 GASKET $29.08
Location: 16 Prev | Next Part: 153903 *Qty: 1 OIL OUTLET PLUG $18.28
Location: 17 Prev | Next Part: 10280060 *Qty: 1 GASKET $0.90
Location: 18 Prev | Next Part: 13526570 *Qty: 1 THREADED INSERT $1.09
Location: 19 Prev | Next Part: 125308 *Qty: 2 OIL SUCTION FILTER $990.69
Location: 20 Prev | Next Part: 13540724 *Qty: 2 STUD $0.90
Location: 21 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 23 Prev | Next Part: 138149 *Qty: 1 UNION $60.89
Location: 24 Prev | Next Part: 141960 *Qty: 1 GASKET $55.03
Location: 25 Prev | Next Part: 102741 *Qty: 16 NUT $0.90
Location: 26 Prev | Next Part: 12601274 *Qty: 16 WASHER $0.90
Location: 27 Prev | Next Part: 156144 *Qty: 1 THREADED PLUG $157.92
Location: 28 Prev | Next Part: 144485 *Qty: 1 GASKET $29.08
Location: 29 Prev | Next Part: 206166 *Qty: 2 OIL FILTER CARTRIDGE $28.00
Location: 30 Prev | Next Part: 141707 *Qty: 2 UNION $29.00
Location: 31 Prev | Next Part: 208782 *Qty: 1 SUPPORT -Valid for GD -For cars not GD valid from Ass. Nr. 55825 $49.34
Location: 31 Prev | Next Part: 197596 *Qty: 1 SUPPORT -Not for GD -Valid till Ass. Nr. 55824 Call
Location: 32 Prev | Next Part: 201207 *Qty: 1 OIL PRESSURE TRANSMITTER -Valid for GD -For cars not GD valid from Ass. Nr. 55825 $248.28
Location: 32 Prev | Next Part: 193478 *Qty: 1 OIL PRESSURE TRANSMITTER -Not for GD -Valid till Ass. Nr. 55824 $256.45
Location: 33 Prev | Next Part: 132248 *Qty: 1 O.R. GASKET $0.90
Location: 34 Prev | Next Part: 14305324 *Qty: 2 SCREW $0.90
Location: 35 Prev | Next Part: 11197771 *Qty: 2 WASHER Superseded
Location: 36 Prev | Next Part: 10269850 *Qty: 2 PLUG $2.37
Location: 37 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.53
Location: 38 Prev | Next Part: 13525570 *Qty: 4 THREADED INSERT $3.37
Location: 39 Prev | Next Part: 13525870 *Qty: 4 THREADED INSERT $3.53
Location: 40 Prev | Next Part: 13525570 *Qty: 3 THREADED INSERT $3.37
Location: 41 Prev | Next Part: 167016 *Qty: 1 ANTI-SHAKING OIL PANEL $29.77
Location: 42 Prev | Next Part: 13540824 *Qty: 8 STUD $0.90
Location: 43 Prev | Next Part: 14048115 *Qty: 8 NUT $0.90
Location: 44 Prev | Next Part: 14496424 *Qty: 8 WASHER Superseded
Location: 45 Prev | Next Part: 142060 *Qty: 1 BRACKET $8.60

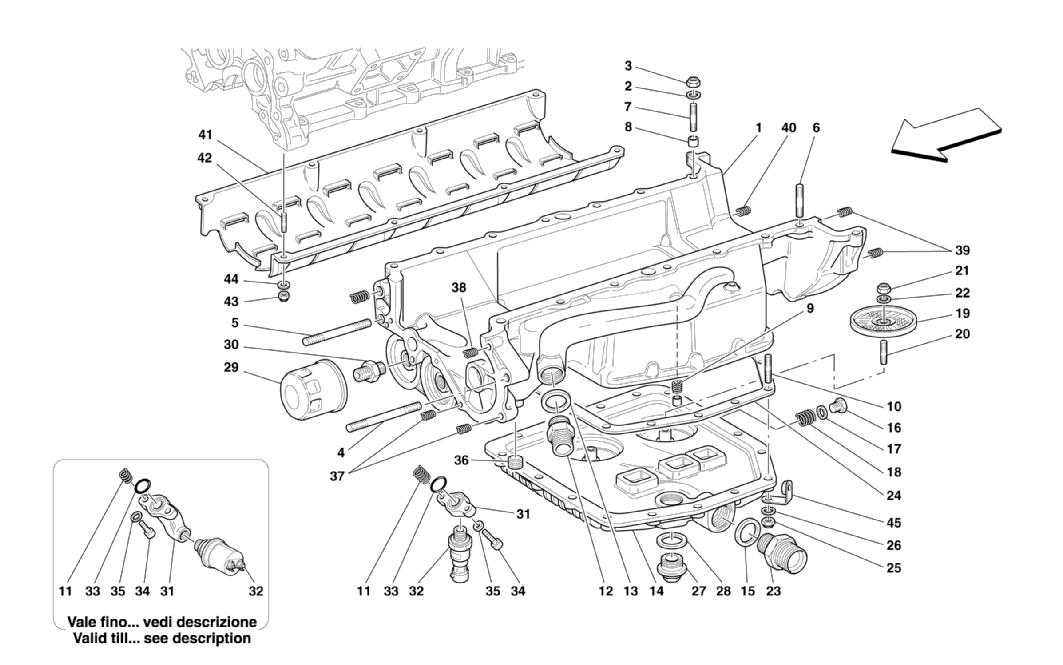

* Quantity shown indicates the number of pieces used in the diagram.
