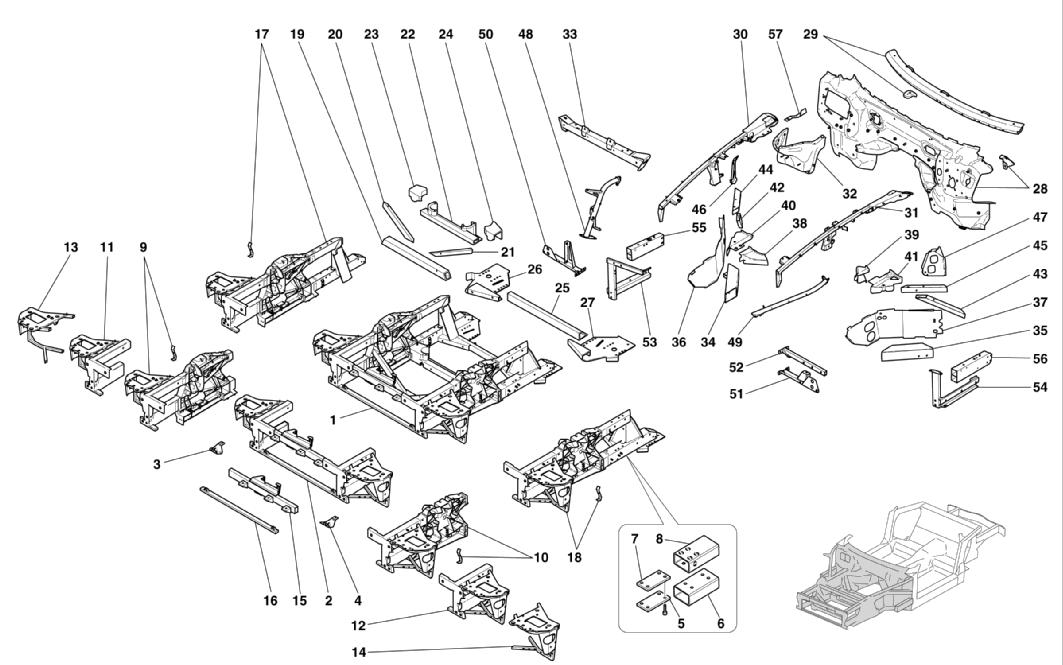

FRONT STRUCTURES AND COMPONENTS

Go to Split View

FRONT STRUCTURES AND COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 213714 *Qty: 1 COMPLETE FRONT MODOLE Call
Location: 2 Prev | Next Part: 213715 *Qty: 1 COMPLETE FRONT FRAME $1,820.83
Location: 3 Prev | Next Part: 187336 *Qty: 1 R.H. BRACKET $88.12
Location: 4 Prev | Next Part: 187335 *Qty: 1 L.H. BRACKET $61.75
Location: 5 Prev | Next Part: 208231 *Qty: 2 LOWER PLATE Call
Location: 6 Prev | Next Part: 208233 *Qty: 2 LOWER PIN Call
Location: 7 Prev | Next Part: 208230 *Qty: 2 UPPER PLATE Call
Location: 8 Prev | Next Part: 208232 *Qty: 2 UPPER PIN Call
Location: 9 Prev | Next Part: 985213716 *Qty: 1 R.H. LATERAL FRONT SPRAG Call
Location: 10 Prev | Next Part: 985213717 *Qty: 1 L.H. LATERAL FRONT SPRAG Call
Location: 11 Prev | Next Part: 213724 *Qty: 1 R.H. LATERAL FRONT SEMI-SPRAG Call
Location: 12 Prev | Next Part: 985213725 *Qty: 1 L.H. LATERAL FRONT SEMI-SPRAG Call
Location: 13 Prev | Next Part: 66991700 *Qty: 1 R.H. FRONT FRAME SHIELD $735.40
Location: 14 Prev | Next Part: 66991800 *Qty: 1 L.H. FRONT FRAME SHIELD Call
Location: 15 Prev | Next Part: 985213726 *Qty: 1 UPPER CROSS MEMBER Call
Location: 16 Prev | Next Part: 985187251 *Qty: 1 LOWER CROSS MEMBER Call
Location: 17 Prev | Next Part: 213727 *Qty: 1 COMPLETE R.H. FRONT SIDEWALL Call
Location: 18 Prev | Next Part: 213728 *Qty: 1 COMPLETE L.H. FRONT SIDEWALL Call
Location: 19 Prev | Next Part: 187254 *Qty: 1 LOWER FRONT SUSPENSIONS CROSS MEMBER Call
Location: 20 Prev | Next Part: 187393 *Qty: 1 R.H. FRONT BRACE Call
Location: 21 Prev | Next Part: 187392 *Qty: 1 L.H. FRONT BRACE Call
Location: 22 Prev | Next Part: 196206 *Qty: 1 MOTOR CROSS MEMBER Call
Location: 23 Prev | Next Part: 187266 *Qty: 1 R.H. SUPPORT ENGINE Call
Location: 24 Prev | Next Part: 187265 *Qty: 1 L.H. SUPPORT ENGINE Call
Location: 25 Prev | Next Part: 187267 *Qty: 1 TORQUE BOX CONNECTION Call
Location: 26 Prev | Next Part: 187340 *Qty: 1 R.H. REINFORCEMENT Call
Location: 27 Prev | Next Part: 187339 *Qty: 1 L.H. REINFORCEMENT Call
Location: 28 Prev | Next Part: 213735 *Qty: 1 COMPLETE FRONT SHIELD -Valid for GD Call
Location: 28 Prev | Next Part: 213730 *Qty: 1 COMPLETE FRONT SHIELD -Not for GD Call
Location: 29 Prev | Next Part: 213736 *Qty: 1 COMPLETE UNDER WINDSCREEN CROSS MEMBER -Valid for GD Call
Location: 29 Prev | Next Part: 213731 *Qty: 1 COMPLETE UNDER WINDSCREEN CROSS MEMBER -Not for GD Call
Location: 30 Prev | Next Part: 66992100 *Qty: 1 R.H. UPPER FRAME -Not for GD Call
Location: 30 Prev | Next Part: 67843900 *Qty: 1 R.H. UPPER FRAME -Valid for GD Call
Location: 31 Prev | Next Part: 66992211 *Qty: 1 L.H. UPPER FRAME $1,191.43
Location: 32 Prev | Next Part: 68125500 *Qty: 1 AIR INTAKE PAN -Not for GD -Valid from car Nr.138040 Call
Location: 32 Prev | Next Part: 67182700 *Qty: 1 AIR INTAKE PAN -Not for GD -Valid till car Nr.138039 Call
Location: 32 Prev | Next Part: 67844300 *Qty: 1 AIR INTAKE PAN -Valid for GD Call
Location: 33 Prev | Next Part: 187860 *Qty: 1 SUSPENSIONS CROSS MEMBER Call
Location: 34 Prev | Next Part: 196726 *Qty: 1 R.H. OUTER FRONT TORQUE BOX Call
Location: 35 Prev | Next Part: 187315 *Qty: 1 L.H. OUTER FRONT TORQUE BOX Call
Location: 36 Prev | Next Part: 209427 *Qty: 1 R.H. SEAL -Valid for GD Call
Location: 36 Prev | Next Part: 187330 *Qty: 1 R.H. SEAL -Not for GD Call
Location: 37 Prev | Next Part: 187329 *Qty: 1 L.H. SEAL Call
Location: 38 Prev | Next Part: 187282 *Qty: 1 R.H. SPRAG CONNECTION Call
Location: 39 Prev | Next Part: 187281 *Qty: 1 L.H. SPRAG CONNECTION Call
Location: 40 Prev | Next Part: 192807 *Qty: 1 R.H. OUTER REINFORCEMENT Call
Location: 41 Prev | Next Part: 192806 *Qty: 1 L.H. OUTER REINFORCEMENT Call
Location: 42 Prev | Next Part: 188100 *Qty: 1 R.H. CONNECTION Call
Location: 43 Prev | Next Part: 188099 *Qty: 1 L.H. CONNECTION Call
Location: 44 Prev | Next Part: 187269 *Qty: 1 R.H. UPPER FRONT DIAGONAL Call
Location: 45 Prev | Next Part: 187268 *Qty: 1 L.H. UPPER FRONT DIAGONAL Call
Location: 46 Prev | Next Part: 187350 *Qty: 1 R.H. SIDE PANEL Call
Location: 47 Prev | Next Part: 187349 *Qty: 1 L.H. SIDE PANEL Call
Location: 48 Prev | Next Part: 196227 *Qty: 1 R.H. DIAGONAL $191.06
Location: 49 Prev | Next Part: 196226 *Qty: 1 L.H. DIAGONAL Call
Location: 50 Prev | Next Part: 67180200 *Qty: 1 R.H. LOWER TRANSVERSE PIPE Call
Location: 51 Prev | Next Part: 67180300 *Qty: 1 L.H. LOWER TRANSVERSE PIPE Call
Location: 52 Prev | Next Part: 67930211 *Qty: 1 L.H. UPPER TRANSVERSE PIPE $291.91
Location: 53 Prev | Next Part: 66991900 *Qty: 1 R.H. REAR FRAME -Not for GD Call
Location: 53 Prev | Next Part: 68129000 *Qty: 1 R.H. REAR FRAME -Valid for GD Call
Location: 54 Prev | Next Part: 66992011 *Qty: 1 L.H. REAR FRAME $748.39
Location: 55 Prev | Next Part: 199441 *Qty: 1 R.H. SPRAG Call
Location: 56 Prev | Next Part: 985210550 *Qty: 1 L.H. SPRAG Call
Location: 57 Prev | Next Part: 67438100 *Qty: 1 REINFORCEMENT Call

* Quantity shown indicates the number of pieces used in the diagram.
