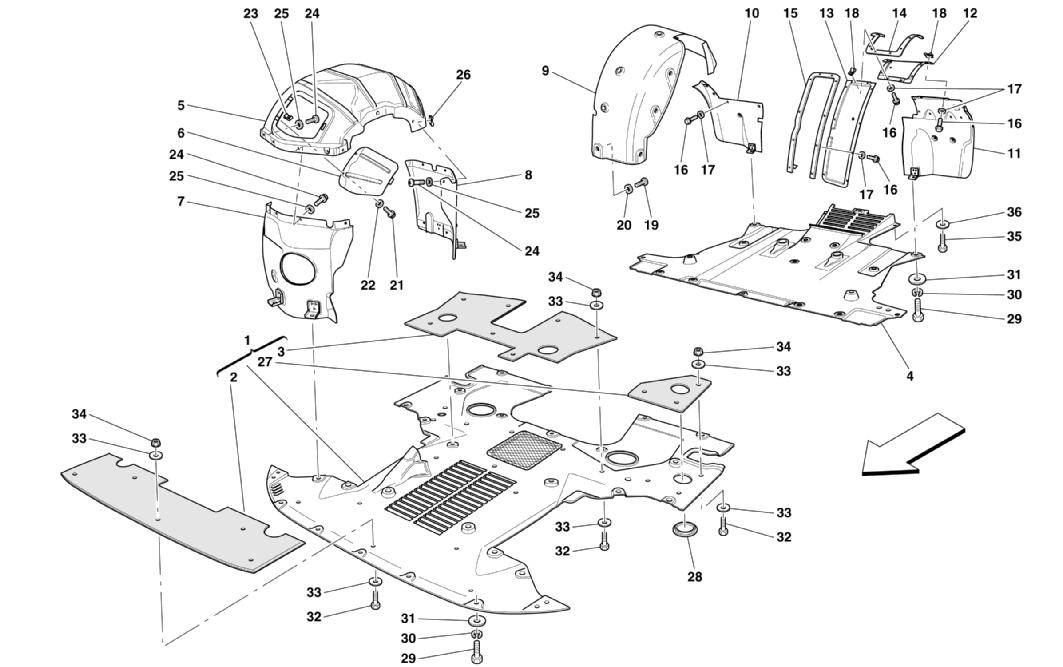

FLAT FLOOR PAN AND WHEELHOUSES

Go to Split View

FLAT FLOOR PAN AND WHEELHOUSES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66955300 *Qty: 1 FRONT AEREODYNAMIC BOTTOM Call
Location: 2 Prev | Next Part: 68031700 *Qty: 1 FRONT INSULATION $130.99
Location: 3 Prev | Next Part: 68031800 *Qty: 1 REAR INSULATION $111.02
Location: 4 Prev | Next Part: 66955500 *Qty: 1 REAR AEREODYNAMIC BOTTOM $11,229.88
Location: 5 Prev | Next Part: 66997000 *Qty: 1 L.H. FRONT WHEELHOUSE $487.84
Location: 5 Prev | Next Part: 66790700 *Qty: 1 R.H. FRONT WHEELHOUSE $487.84
Location: 6 Prev | Next Part: 67328500 *Qty: 1 L.H. WHEELHOUSE DOOR $90.38
Location: 6 Prev | Next Part: 67328400 *Qty: 1 R.H. WHEELHOUSE DOOR $90.36
Location: 7 Prev | Next Part: 66850100 *Qty: 1 FRONT GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE $309.76
Location: 7 Prev | Next Part: 66850000 *Qty: 1 FRONT GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE $309.76
Location: 8 Prev | Next Part: 66850400 *Qty: 1 REAR GRAVEL GUARD FOR L.H. FRONT WHEELHOUSE $158.12
Location: 8 Prev | Next Part: 66850300 *Qty: 1 REAR GRAVEL GUARD FOR R.H. FRONT WHEELHOUSE $158.12
Location: 9 Prev | Next Part: 67927300 *Qty: 1 R.H. COMPARTMENT FRAME SHIELD $185.98
Location: 9 Prev | Next Part: 67927400 *Qty: 1 L.H. COMPARTMENT FRAME SHIELD $185.98
Location: 10 Prev | Next Part: 67186600 *Qty: 1 R.H. REAR PANEL FOR REAR WHEELHOUSE Call
Location: 11 Prev | Next Part: 67186700 *Qty: 1 L.H. REAR PANEL FOR REAR WHEELHOUSE Call
Location: 12 Prev | Next Part: 66988900 *Qty: 1 CENTRAL INSERT FOR WHEELHOUSE $97.14
Location: 13 Prev | Next Part: 66988800 *Qty: 1 L.H. FRONT INSERT FOR REAR WHEELHOUSE $98.11
Location: 14 Prev | Next Part: 67928300 *Qty: 1 GASKET $5.90
Location: 15 Prev | Next Part: 67928200 *Qty: 1 FRONT GASKET $8.27
Location: 16 Prev | Next Part: 16285127 *Qty: 30 SCREW $0.90
Location: 17 Prev | Next Part: 12643778 *Qty: 30 WASHER $0.90
Location: 18 Prev | Next Part: 66927700 *Qty: 4 FIXING BRACKET $1.44
Location: 19 Prev | Next Part: 13274077 *Qty: 23 SCREW $0.90
Location: 20 Prev | Next Part: 12624178 *Qty: 23 WASHER $0.90
Location: 21 Prev | Next Part: 16285127 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: 12644477 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 66927700 *Qty: 4 FIXING BRACKET $1.44
Location: 24 Prev | Next Part: 13276477 *Qty: 28 SCREW $0.90
Location: 25 Prev | Next Part: 12643778 *Qty: 28 WASHER $0.90
Location: 26 Prev | Next Part: 62766300 *Qty: 2 CLIP $0.94
Location: 27 Prev | Next Part: 68129700 *Qty: 1 LATERAL INSULATION Call
Location: 28 Prev | Next Part: 64783600 *Qty: 1 PLUG $7.55
Location: 29 Prev | Next Part: 10902624 *Qty: 44 SCREW $0.90
Location: 30 Prev | Next Part: 127494 *Qty: 44 WASHER $0.90
Location: 31 Prev | Next Part: 12641378 *Qty: 44 WASHER $0.90
Location: 32 Prev | Next Part: 10902224 *Qty: 15 SCREW $0.90
Location: 33 Prev | Next Part: 12640677 *Qty: 30 WASHER Call
Location: 34 Prev | Next Part: 15896214 *Qty: 15 NUT $0.90
Location: 35 Prev | Next Part: 64830600 *Qty: 3 SCREW $2.23
Location: 36 Prev | Next Part: 12640677 *Qty: 36 WASHER Call

* Quantity shown indicates the number of pieces used in the diagram.
