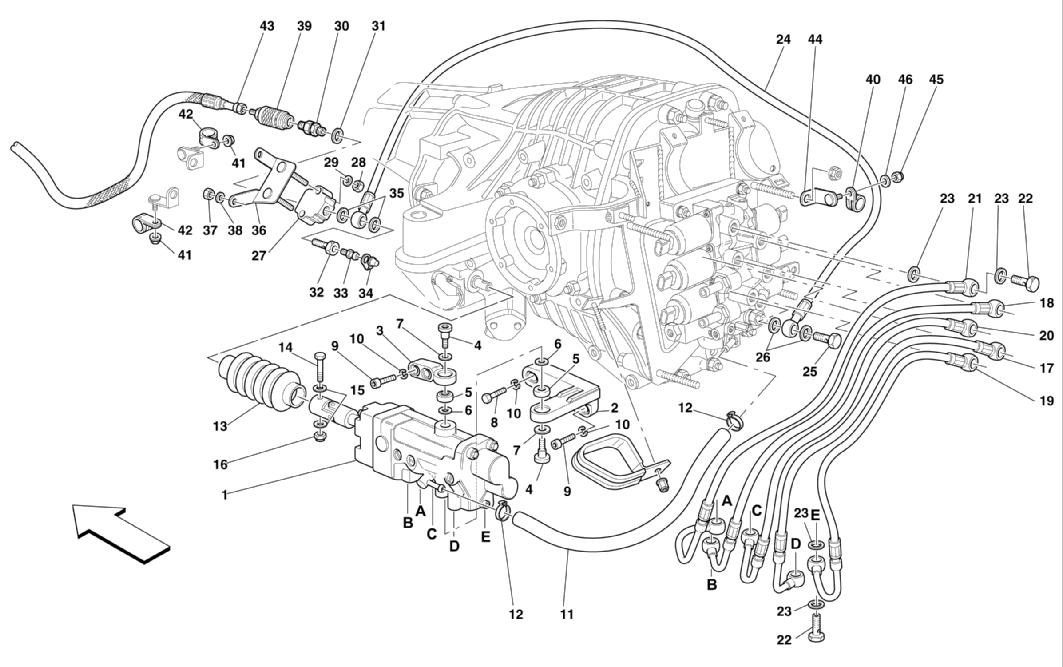

F1 CLUTCH HYDRAULIC CONTROL -VALID FOR F1-

Go to Split View

F1 CLUTCH HYDRAULIC CONTROL -VALID FOR F1-

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 195408 *Qty: 1 F1 CLUTCH HYDRAULIC CONTROL $12,352.35
Location: 1 Prev | Next Part: 179141 *Qty: 1 COMPLETE HYDRAULIC ACTUATOR $26,072.21
Location: 2 Prev | Next Part: 184110 *Qty: 1 LOWER ACTUATOR SUPPORT BRACKET $747.23
Location: 3 Prev | Next Part: 184109 *Qty: 1 UPPER ACTUATOR SUPPORT BRACKET $201.01
Location: 4 Prev | Next Part: 179300 *Qty: 2 PIN $287.96
Location: 5 Prev | Next Part: 169222 *Qty: 2 BALL JOINT Call
Location: 6 Prev | Next Part: 179679 *Qty: 2 WASHER $70.82
Location: 7 Prev | Next Part: 10730321 *Qty: 2 WASHER $0.90
Location: 8 Prev | Next Part: 16043834 *Qty: 1 SCREW $0.90
Location: 9 Prev | Next Part: 14306524 *Qty: 3 SCREW $0.90
Location: 10 Prev | Next Part: 10569374 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 195415 *Qty: 1 OIL RECYCLE TUBE $1,036.89
Location: 12 Prev | Next Part: 13430670 *Qty: 2 COLLAR FOR SLEEVE Call
Location: 13 Prev | Next Part: 184119 *Qty: 1 RUBBER BOOT $25.75
Location: 14 Prev | Next Part: 170767 *Qty: 1 SCREW $10.60
Location: 15 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 17 Prev | Next Part: 195409 *Qty: 1 PIPE (EV1) $2,454.07
Location: 18 Prev | Next Part: 195410 *Qty: 1 PIPE (EV2) $2,534.66
Location: 19 Prev | Next Part: 195411 *Qty: 1 PIPE (EV3) $2,442.47
Location: 20 Prev | Next Part: 195412 *Qty: 1 PIPE (EV4) $2,488.61
Location: 21 Prev | Next Part: 195413 *Qty: 1 PIPE (EV5) Call
Location: 22 Prev | Next Part: 204543 *Qty: 3 UNION -Fixing EV3, EV4 and EV5 to actuator $107.99
Location: 22 Prev | Next Part: 171454 *Qty: 4 UNION -Fixing EV1 and EV2 pipe $12.35
Location: 22 Prev | Next Part: 204545 *Qty: 3 UNION -Fixing EV3, EV4 and EV5 to power unit $65.64
Location: 23 Prev | Next Part: 10261060 *Qty: 20 GASKET $0.90
Location: 24 Prev | Next Part: 195416 *Qty: 1 PIPE FROM VALVE SET TO BLOCK $2,880.32
Location: 25 Prev | Next Part: 171454 *Qty: 1 UNION $12.35
Location: 26 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 27 Prev | Next Part: 175667 *Qty: 1 BLOCK $43.60
Location: 28 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 29 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 30 Prev | Next Part: 70001184 *Qty: 1 QUICK MALE COUPLING Call
Location: 31 Prev | Next Part: 171755 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 171630 *Qty: 1 UNION $71.21
Location: 33 Prev | Next Part: 152954 *Qty: 1 BLEEDER SCREW $8.00
Location: 34 Prev | Next Part: 152955 *Qty: 1 PROTECTION BOOT $7.43
Location: 35 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 36 Prev | Next Part: 198900 *Qty: 1 BRACKET Call
Location: 37 Prev | Next Part: 16100812 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 39 Prev | Next Part: 70001184 *Qty: 1 FEMALE COUPLING Call
Location: 40 Prev | Next Part: 10440990 *Qty: 2 BRACKET WITH SHEATH $1.96
Location: 41 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 42 Prev | Next Part: 10441190 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 43 Prev | Next Part: 195131 *Qty: 1 CLUTCH PIPE $1,152.84
Location: 44 Prev | Next Part: 149694 *Qty: 1 BRACKET $7.91
Location: 45 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 46 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
