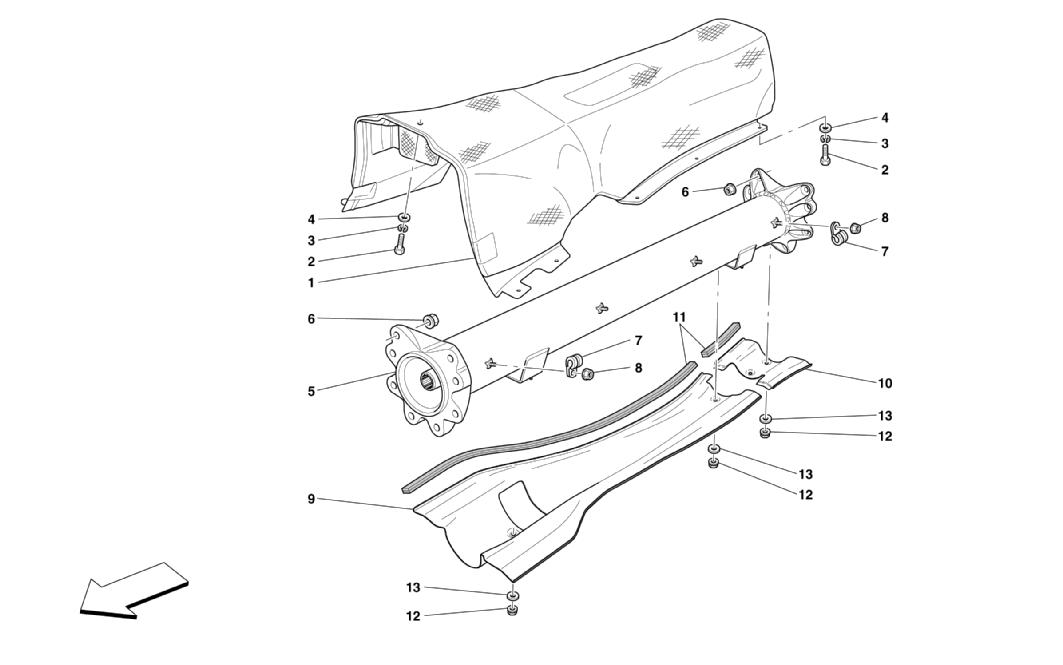

ENGINE/GEARBOX CONNECTING TUBE AND INSULATION

Go to Split View

ENGINE/GEARBOX CONNECTING TUBE AND INSULATION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68120900 *Qty: 1 COMPLETE TUNNEL HEAT SHIELD -Valid for F1 Call
Location: 1 Prev | Next Part: 68120800 *Qty: 1 COMPLETE TUNNEL HEAT SHIELD -Not for F1 Call
Location: 2 Prev | Next Part: 10902380 *Qty: 11 SCREW $1.01
Location: 3 Prev | Next Part: 127494 *Qty: 11 WASHER $0.90
Location: 4 Prev | Next Part: 12643770 *Qty: 11 WASHER $0.90
Location: 5 Prev | Next Part: 198483 *Qty: 1 ENGINE-GEARBOX CONNECTING PIPE -Valid for F1 $6,980.51
Location: 5 Prev | Next Part: 205804 *Qty: 1 ENGINE-GEARBOX CONNECTING PIPE -Not for F1 $6,055.44
Location: 6 Prev | Next Part: 156462 *Qty: 16 NUT $1.17
Location: 7 Prev | Next Part: 10441590 *Qty: 4 BRACKET WITH SHEATH $0.90
Location: 8 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 9 Prev | Next Part: 66965500 *Qty: 1 SHIELD FOR PIPE PROTECTION $887.74
Location: 10 Prev | Next Part: 67663900 *Qty: 1 REAR FRAME SHIELD Call
Location: 11 Prev | Next Part: 167499 *Qty: 2 GASKET $329.58
Location: 12 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 12643770 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
