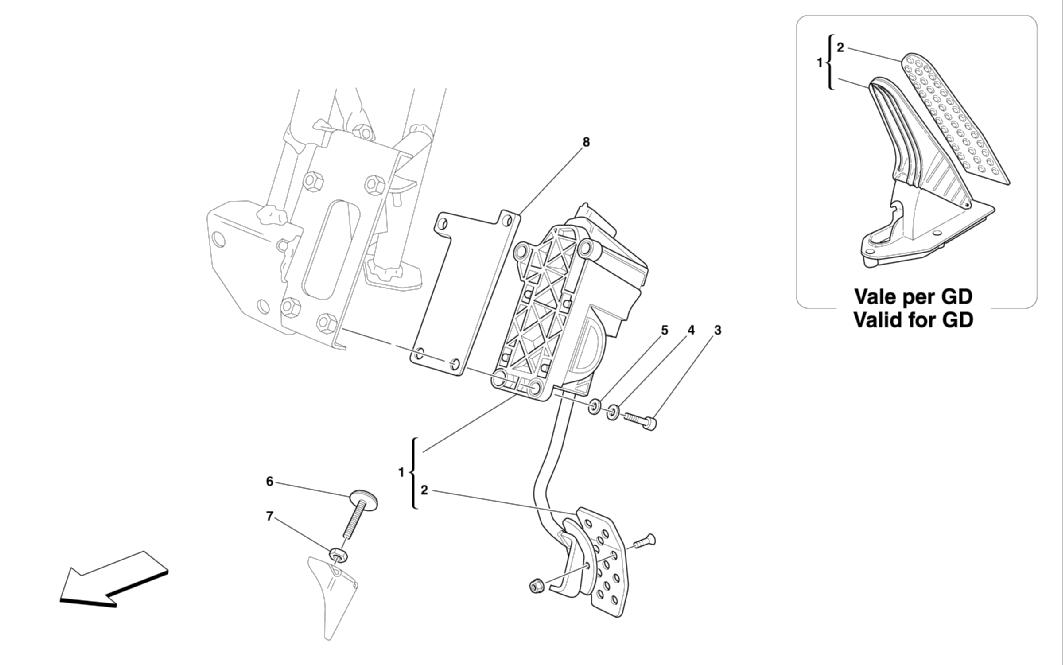

ELECTRONIC ACCELERATOR PEDAL

Go to Split View

ELECTRONIC ACCELERATOR PEDAL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 205297 *Qty: 1 ACCELERATOR PEDAL (ASSEM.) -Not for GD $339.78
Location: 1 Prev | Next Part: 186963 *Qty: 1 ACCELERATOR PEDAL (ASSEM.) -Valid for GD $1,162.42
Location: 2 Prev | Next Part: 205300 *Qty: 1 PLATE -Not for GD $259.75
Location: 2 Prev | Next Part: 208694 *Qty: 1 PLATE -Valid for GD $220.20
Location: 3 Prev | Next Part: 14305424 *Qty: 3 SCREW Superseded
Location: 4 Prev | Next Part: 14499324 *Qty: 3 WASHER Superseded
Location: 5 Prev | Next Part: 12581474 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 213361 *Qty: 1 PEDAL ADJUSTEMENT PIN -Not for GD $43.64
Location: 6 Prev | Next Part: 200869 *Qty: 1 PEDAL ADJUSTEMENT PIN -Not for GD -Not as spare part -Replaced by 213361 Call
Location: 7 Prev | Next Part: 16100814 *Qty: 1 NUT -Not for GD $0.90
Location: 8 Prev | Next Part: 210603 *Qty: 1 THICKNESS -Not for GD Call

* Quantity shown indicates the number of pieces used in the diagram.
