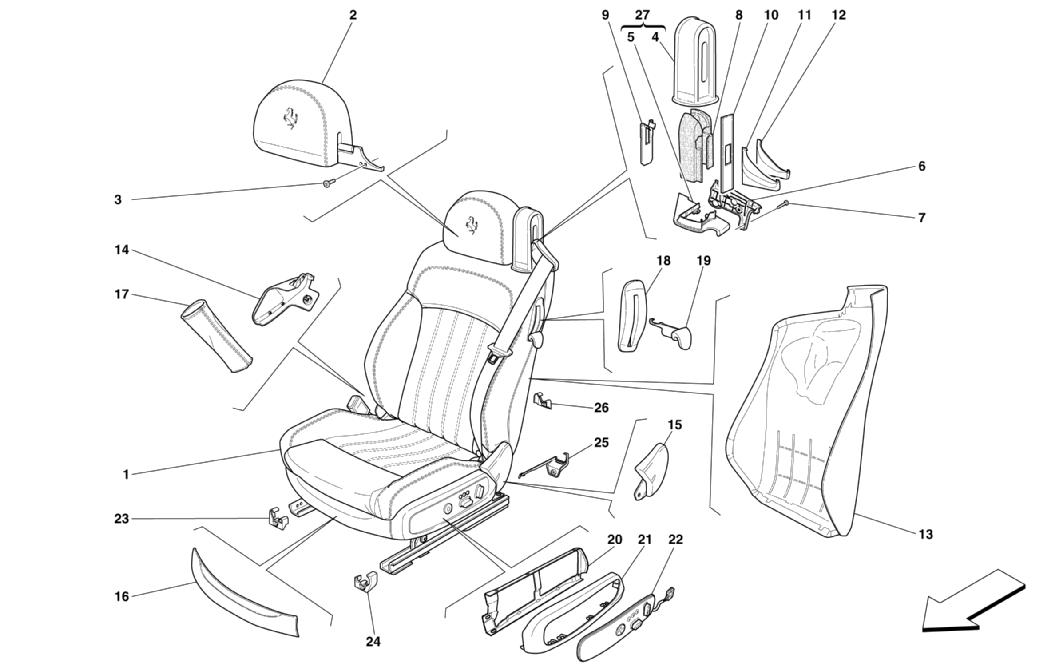

ELECTRICAL FRONT SEAT - COVERINGS AND ACCESSORIES

Go to Split View

ELECTRICAL FRONT SEAT - COVERINGS AND ACCESSORIES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 3 Prev | Next Part: 68453400 *Qty: 4 SCREW Call
Location: 6 Prev | Next Part: 67585600 *Qty: 1 R.H. SEAT BELT GUIDE Call
Location: 6 Prev | Next Part: 67585700 *Qty: 1 L.H. SEAT BELT GUIDE Call
Location: 7 Prev | Next Part: 68451300 *Qty: 4 SCREW Call
Location: 8 Prev | Next Part: 67585200 *Qty: 1 R.H. INSERT PILLAR COVER Call
Location: 8 Prev | Next Part: 67585300 *Qty: 1 L.H. INSERT PILLAR COVER Call
Location: 9 Prev | Next Part: 68453500 *Qty: 2 INNER GUIDE Call
Location: 10 Prev | Next Part: 68453600 *Qty: 2 OUTER GUIDE $30.57
Location: 11 Prev | Next Part: 68151500 *Qty: 2 L.H. FRONT PLATE $43.64
Location: 12 Prev | Next Part: 68151400 *Qty: 2 R.H. FRONT PLATE $43.64
Location: 18 Prev | Next Part: 67586000 *Qty: 1 R.H. RELEASE LEVER PLATE $55.29
Location: 18 Prev | Next Part: 67586100 *Qty: 1 L.H. RELEASE LEVER PLATE $42.14
Location: 19 Prev | Next Part: 67586200 *Qty: 1 SEAT RELEASE R.H. LEVER $63.18
Location: 19 Prev | Next Part: 67586300 *Qty: 1 SEAT RELEASE L.H. LEVER $63.18
Location: 20 Prev | Next Part: 68078100 *Qty: 1 BRACKET SUPPORTING R.H. OUTER CARTER $185.12
Location: 20 Prev | Next Part: 68078200 *Qty: 1 BRACKET SUPPORTING L.H. OUTER CARTER $218.29
Location: 22 Prev | Next Part: 191542 *Qty: 1 R.H. SEAT SWITCH PANEL -Heater -Optional $2,619.55
Location: 22 Prev | Next Part: 198091 *Qty: 1 L.H. SEAT SWITCH PANEL $1,930.42
Location: 22 Prev | Next Part: 191543 *Qty: 1 L.H. SEAT SWITCH PANEL -Heater -Optional $2,619.55
Location: 22 Prev | Next Part: 198090 *Qty: 1 R.H. SEAT SWITCH PANEL $1,636.99
Location: 23 Prev | Next Part: 67929100 *Qty: 2 INNER FRONT COVER $6.61
Location: 24 Prev | Next Part: 67928700 *Qty: 1 L.H. OUTER FRONT COVER $25.71
Location: 24 Prev | Next Part: 67928600 *Qty: 1 R.H. OUTER FRONT COVER $25.71
Location: 25 Prev | Next Part: 67928900 *Qty: 1 L.H. REAR OUTER COVER $7.36
Location: 25 Prev | Next Part: 67928800 *Qty: 1 R.H. REAR OUTER COVER $7.36
Location: 26 Prev | Next Part: 67929000 *Qty: 2 INNER REAR COVER $6.61

* Quantity shown indicates the number of pieces used in the diagram.
