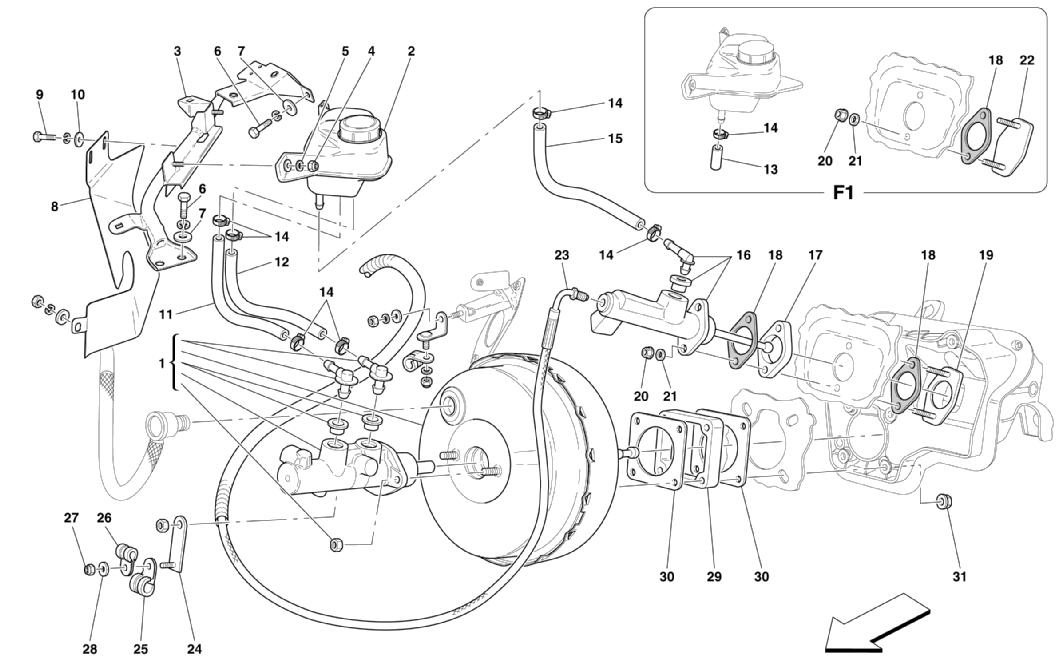

BRAKE AND CLUTCH HYDRAULIC SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 209079 *Qty: 1 BRAKE BOOSTER WITH PUMP $770.23
Location: 2 Prev | Next Part: 203903 *Qty: 1 PAN FOR BRAKE LIQUID $49.80
Location: 3 Prev | Next Part: 199694 *Qty: 1 BRACKET FOR PAN -Not for GD Call
Location: 3 Prev | Next Part: 208329 *Qty: 1 BRACKET FOR PAN -Valid for GD $234.50
Location: 4 Prev | Next Part: 102741 *Qty: 2 NUT $0.51
Location: 5 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 14305324 *Qty: 4 SCREW $0.90
Location: 7 Prev | Next Part: 14499324 *Qty: 4 WASHER Superseded
Location: 8 Prev | Next Part: 203623 *Qty: 1 ANTI-HEAT SHIELD -Not for GD $42.36
Location: 9 Prev | Next Part: 14305324 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 11 Prev | Next Part: 105857 *Qty: 1 RUBBER HOSE $6.55
Location: 12 Prev | Next Part: 154011 *Qty: 1 RUBBER HOSE -Valid for GD $9.11
Location: 12 Prev | Next Part: 211377 *Qty: 1 RUBBER HOSE -Not for GD $10.21
Location: 13 Prev | Next Part: 136379 *Qty: 1 PLUG -Valid for F1 $4.58
Location: 14 Prev | Next Part: 13000190 *Qty: 6 SCREW COLLAR -Q.ty 5 for F1 $0.90
Location: 15 Prev | Next Part: 193402 *Qty: 1 RUBBER HOSE -Not for F1 Call
Location: 16 Prev | Next Part: 190386 *Qty: 1 CLUTCH CONTROL PUMP -Not for F1 $133.58
Location: 17 Prev | Next Part: 194024 *Qty: 1 SPACER -Not for F1 Call
Location: 18 Prev | Next Part: 194025 *Qty: 2 GASKET -Q.ty 1 for F1 Call
Location: 19 Prev | Next Part: 194051 *Qty: 1 SMALL PLATE FIXING PUMP -Not for F1 $14.24
Location: 20 Prev | Next Part: 177778 *Qty: 2 NUT $1.88
Location: 21 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 203596 *Qty: 1 PLUG -Valid for F1 $14.34
Location: 23 Prev | Next Part: 207644 *Qty: 1 CLUTCH CONTROL TUBE -Not for F1 -Valid for GD $276.02
Location: 23 Prev | Next Part: 205819 *Qty: 1 CLUTCH CONTROL TUBE -Not for F1 -Not for GD $276.02
Location: 24 Prev | Next Part: 181344 *Qty: 1 BRACKET $3.52
Location: 25 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 26 Prev | Next Part: 10441290 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 27 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 28 Prev | Next Part: 12646601 *Qty: 1 WASHER $0.90
Location: 29 Prev | Next Part: 190379 *Qty: 1 SPACER $19.77
Location: 30 Prev | Next Part: 190378 *Qty: 2 GASKET $1.26
Location: 31 Prev | Next Part: 12578211 *Qty: 4 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
