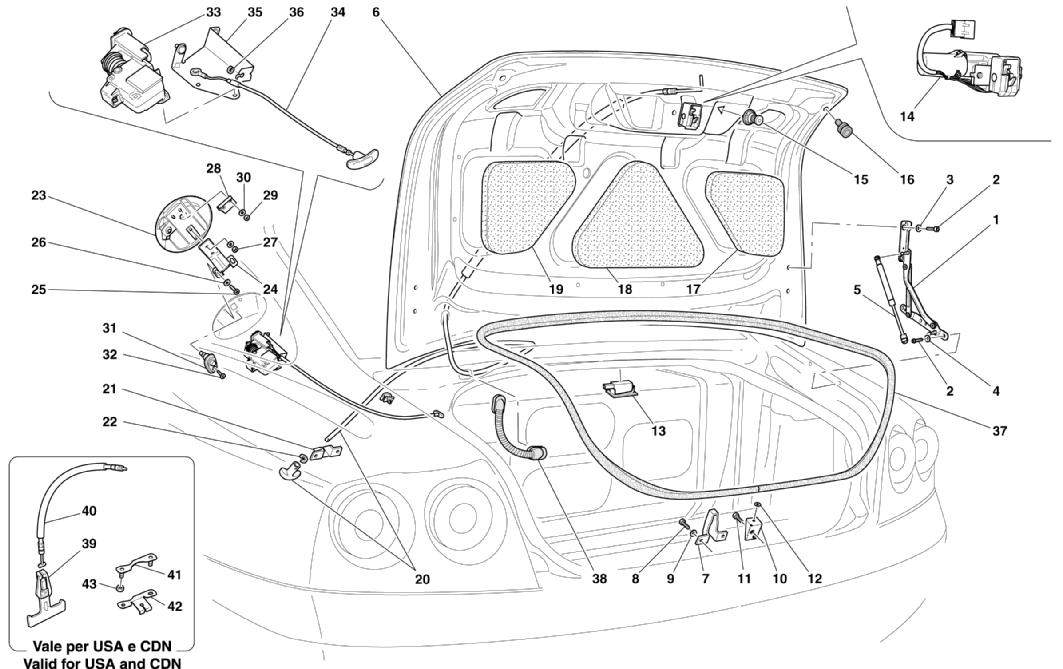

BOOT DOOR AND PETROL COVER

Go to Split View

BOOT DOOR AND PETROL COVER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67625100 *Qty: 1 COMPLETE R.H. HINGE $113.90
Location: 1 Prev | Next Part: 67625200 *Qty: 1 COMPLETE L.H. HINGE $113.90
Location: 2 Prev | Next Part: 67079400 *Qty: 10 SCREW $3.21
Location: 3 Prev | Next Part: 67079900 *Qty: 4 WASHER $0.90
Location: 4 Prev | Next Part: 12647701 *Qty: 6 WASHER $0.90
Location: 5 Prev | Next Part: 67739900 *Qty: 2 GAS SPRING $70.65
Location: 6 Prev | Next Part: 66990411 *Qty: 1 TRUNK HOOD BONNET Call
Location: 7 Prev | Next Part: 67877200 *Qty: 1 STRIKER $49.80
Location: 8 Prev | Next Part: 16132314 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 10523424 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 67614600 *Qty: 1 R.H. BRACKET $28.96
Location: 11 Prev | Next Part: 16286024 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 14215480 *Qty: 1 BLOCK Superseded
Location: 13 Prev | Next Part: 188250 *Qty: 1 DOME LAMP $5.21
Location: 14 Prev | Next Part: 67826200 *Qty: 1 TRUNK HOOD DOOR LOCK $435.64
Location: 15 Prev | Next Part: 68204100 *Qty: 1 ANTI-VIBRATIONS SMALL BLOCK $26.81
Location: 15 Prev | Next Part: 67615500 *Qty: 1 ANTI-VIBRATIONS SMALL BLOCK -Not as spare part -Replaced by 68204100 $59.46
Location: 16 Prev | Next Part: 67161800 *Qty: 2 ANTIVIBRATION PAD $7.44
Location: 17 Prev | Next Part: 66966800 *Qty: 1 TRUNK HOOD DOOR R.H. INSULATION Call
Location: 18 Prev | Next Part: 66967000 *Qty: 1 TRUNK HOOD DOOR CENTRAL INSULATION Call
Location: 19 Prev | Next Part: 66966900 *Qty: 1 TRUNK HOOD DOOR L.H. INSULATION Call
Location: 20 Prev | Next Part: 68123500 *Qty: 1 HOOD SAFETY CABLE $128.50
Location: 20 Prev | Next Part: 66982100 *Qty: 1 HOOD SAFETY CABLE -Not as spare part -Replaced by 68123500 Call
Location: 21 Prev | Next Part: 67853300 *Qty: 1 BRACKET Call
Location: 22 Prev | Next Part: 11087676 *Qty: 1 FLEXIBLE RING $0.90
Location: 23 Prev | Next Part: 67092600 *Qty: 1 FUEL LID DOOR $79.11
Location: 24 Prev | Next Part: 67934900 *Qty: 1 HINGE FOR GAS UNION DOOOR $72.62
Location: 25 Prev | Next Part: 13274014 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 14084111 *Qty: 2 NUT $0.90
Location: 28 Prev | Next Part: 67840400 *Qty: 1 STRIKER Call
Location: 29 Prev | Next Part: 14084111 *Qty: 2 NUT $0.90
Location: 30 Prev | Next Part: 68115400 *Qty: 4 SPACER Call
Location: 31 Prev | Next Part: 153069 *Qty: 1 SWITCH $7.16
Location: 32 Prev | Next Part: 16082401 *Qty: 1 SCREW $0.90
Location: 33 Prev | Next Part: 65395900 *Qty: 1 ROCKWELL ACTUATOR $183.19
Location: 34 Prev | Next Part: 66678200 *Qty: 1 SAFETY CABLE $37.11
Location: 35 Prev | Next Part: 66679800 *Qty: 1 ACTUATOR SUPPORT BRACKET $11.66
Location: 36 Prev | Next Part: 11087676 *Qty: 1 FLEXIBLE RING $0.90
Location: 37 Prev | Next Part: 66982600 *Qty: 1 BONNET GASKET $178.31
Location: 38 Prev | Next Part: 191546 *Qty: 2 CABLE BUSHING Call
Location: 39 Prev | Next Part: 66403900 *Qty: 1 HANDLE FOR SAFETY CHILDREN -Valid for USA e CDN $40.59
Location: 40 Prev | Next Part: 67928500 *Qty: 1 OPENING TIE ROD -Valid for USA and CDN Call
Location: 41 Prev | Next Part: 68309400 *Qty: 1 BRACKET FOR SAFETY CABLE BRACKET FIXING -Valid for USA and CDN Call
Location: 42 Prev | Next Part: 68315200 *Qty: 1 SAFETY CABLE BRACKET -Valid for USA and CDN Call
Location: 43 Prev | Next Part: 14059114 *Qty: 2 NUT -Valid for USA and CDN $0.90

* Quantity shown indicates the number of pieces used in the diagram.
