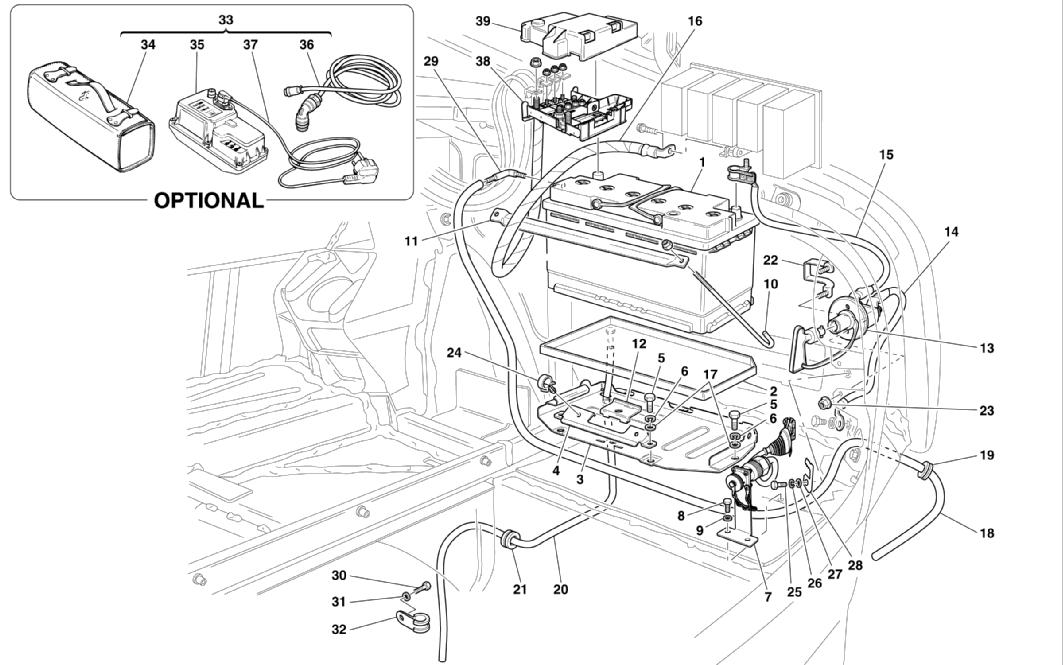

BATTERY

Go to Split View

BATTERY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 191374 *Qty: 1 BATTERY 12V-100AH-850A $369.51
Location: 2 Prev | Next Part: 191508 *Qty: 1 PAN FOR BATTERY LIQUID $27.54
Location: 3 Prev | Next Part: 191509 *Qty: 1 BATTERY BIN $121.51
Location: 4 Prev | Next Part: 191538 *Qty: 1 BRACKET FOR BATTERY INTRODUCTION $60.44
Location: 5 Prev | Next Part: 16043624 *Qty: 6 SCREW $0.90
Location: 6 Prev | Next Part: 127496 *Qty: 6 WASHER $0.90
Location: 7 Prev | Next Part: 191554 *Qty: 1 BATTERY CHARGER LINK CABLE -Valid from Ass. Nr. 55350 Call
Location: 7 Prev | Next Part: 200857 *Qty: 1 BATTERY CHARGER LINK CABLE -Valid till Ass. Nr. 55349 $179.04
Location: 8 Prev | Next Part: 16285127 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12620374 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 188272 *Qty: 2 TIE ROD $12.25
Location: 11 Prev | Next Part: 188273 *Qty: 1 BRACKET FOR BATTERY FIXING $127.55
Location: 12 Prev | Next Part: 191507 *Qty: 1 MOBILE BRACKET FOR BATTERY FIXING $6.61
Location: 13 Prev | Next Part: 196157 *Qty: 1 CUT-OUT SWITCH $284.00
Location: 14 Prev | Next Part: 196553 *Qty: 1 CUT OUT SWITCH-MASS CONNECTING PLAIT $209.93
Location: 15 Prev | Next Part: 196552 *Qty: 1 BATTERY-CUT OUT SWITCH CONNECTING PLAIT $209.93
Location: 16 Prev | Next Part: 205689 *Qty: 1 BATTERY POSITIVE CABLE -Valid for GD $200.07
Location: 16 Prev | Next Part: 194335 *Qty: 1 BATTERY POSITIVE CABLE -Not for GD $138.96
Location: 17 Prev | Next Part: 14496524 *Qty: 6 WASHER $0.90
Location: 18 Prev | Next Part: 191537 *Qty: 1 PIPE -Not as spare part -Replaced by 214478 Call
Location: 18 Prev | Next Part: 214478 *Qty: 1 PIPE $4.33
Location: 19 Prev | Next Part: 10396380 *Qty: 1 CABLE GROMMET $0.90
Location: 20 Prev | Next Part: 214479 *Qty: 1 BATTERY VENT PIPE $3.58
Location: 20 Prev | Next Part: 199629 *Qty: 1 BATTERY VENT PIPE -Not as spare part -Replaced by 214479 Call
Location: 21 Prev | Next Part: 10396280 *Qty: 1 CABLE GROMMET $0.90
Location: 22 Prev | Next Part: 191533 *Qty: 1 BRACKET $17.04
Location: 23 Prev | Next Part: 14059111 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 14569880 *Qty: 2 CLIP $0.90
Location: 25 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 162606 *Qty: 1 CLIP $1.79
Location: 29 Prev | Next Part: 199631 *Qty: 1 UNION $0.90
Location: 30 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 31 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 33 Prev | Next Part: 178684 *Qty: 1 BATTERY CHARGER KIT -Valid for AUS -Optional $985.49
Location: 33 Prev | Next Part: 178683 *Qty: 1 BATTERY CHARGER KIT -Valid for USA, CDN and J -Optional Superseded
Location: 33 Prev | Next Part: 178682 *Qty: 1 BATTERY CHARGER KIT -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $2,054.72
Location: 33 Prev | Next Part: 178685 *Qty: 1 BATTERY CHARGER KIT -Valid for GB and Hong Kong -Optional $1,162.18
Location: 34 Prev | Next Part: 65699200 *Qty: 1 BATTERY BAG CASE -Optional $509.36
Location: 35 Prev | Next Part: 177792 *Qty: 1 BATTERY CHARGER -110V -Not for USA, CDN and J -Optional $2,319.72
Location: 35 Prev | Next Part: 177791 *Qty: 1 BATTERY CHARGER -230V -Not for USA, CDN and J -Optional $1,056.65
Location: 36 Prev | Next Part: 178676 *Qty: 1 CABLE WITH CONNECTOR -Optional $368.38
Location: 37 Prev | Next Part: 177795 *Qty: 1 POWER SUPPLY CABLE -Valid for USA, CDN and J -Optional $23.71
Location: 37 Prev | Next Part: 177794 *Qty: 1 POWER SUPPLY CABLE -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $31.62
Location: 37 Prev | Next Part: 178294 *Qty: 1 POWER SUPPLY CABLE -Valid for GB and Hong Kong -Optional Call
Location: 37 Prev | Next Part: 177796 *Qty: 1 POWER SUPPLY CABLE -Valid for AUS -Optional Call
Location: 38 Prev | Next Part: 199904 *Qty: 1 BATTERY CONTROL STATION $109.36
Location: 39 Prev | Next Part: 199905 *Qty: 1 COVER FOR BATTERY CONTROL STATION $15.85

* Quantity shown indicates the number of pieces used in the diagram.
