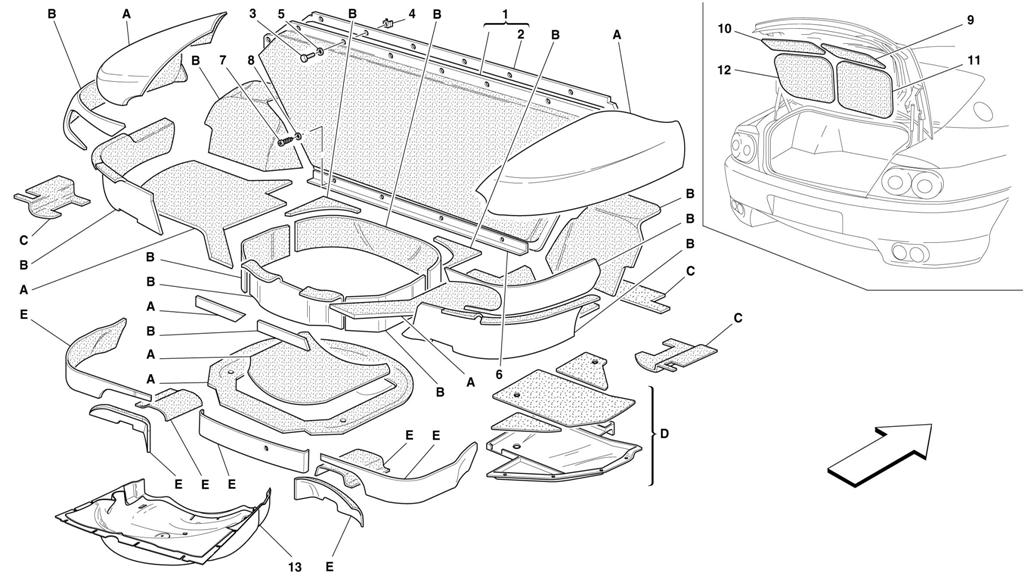

TRUNK HOOD INSULATIONS -NOT FOR 456M GTA

Go to Split View

TRUNK HOOD INSULATIONS -NOT FOR 456M GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 64055000 *Qty: 0 SHIELD/SPARE WH $146.58
Location: - Prev | Next Part: 65670600 *Qty: 0 SERIE ISOLANTI VANO BAULE $576.13
Location: - Prev | Next Part: 65809400 *Qty: 0 BOOT SHIELD RH $535.41
Location: - Prev | Next Part: 65809600 *Qty: 0 RIPARO CAL SX CPL PIANETTO BAULE $535.41
Location: - Prev | Next Part: 63493500 *Qty: 0 SHIELD/HEAT $292.96
Location: - Prev | Next Part: 63496300 *Qty: 0 SERIE RIPARI CALORE COLLEG. POST $242.20
Location: 1 Prev | Next Part: 65806900 *Qty: 1 SHIELD FOR LUGGAGE COMPARTMENT AND FUEL TANK $491.02
Location: 2 Prev | Next Part: 63761800 *Qty: 1 GASKET Call
Location: 3 Prev | Next Part: 95880322 *Qty: 17 SCREW Call
Location: 4 Prev | Next Part: 65774200 *Qty: 17 NUT WITH CAGE $1.15
Location: 5 Prev | Next Part: 12647701 *Qty: 17 WASHER $0.90
Location: 6 Prev | Next Part: 63853500 *Qty: 1 ANGLE PIECE $31.99
Location: 7 Prev | Next Part: 15687275 *Qty: 3 SCREW $0.90
Location: 8 Prev | Next Part: 12642878 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 63494800 *Qty: 1 R.H. UPPER HEAT SHIELD $129.64
Location: 10 Prev | Next Part: 63494900 *Qty: 1 L.H. UPPER HEAT SHIELD $129.64
Location: 11 Prev | Next Part: 63495000 *Qty: 1 R.H. LOWER HEAT SHIELD $168.04
Location: 12 Prev | Next Part: 63495100 *Qty: 1 L.H. LOWER HEAT SHIELD $168.04
Location: 13 Prev | Next Part: 63938600 *Qty: 1 SPARE WHEEL HEAT SHIELD $917.90

* Quantity shown indicates the number of pieces used in the diagram.
