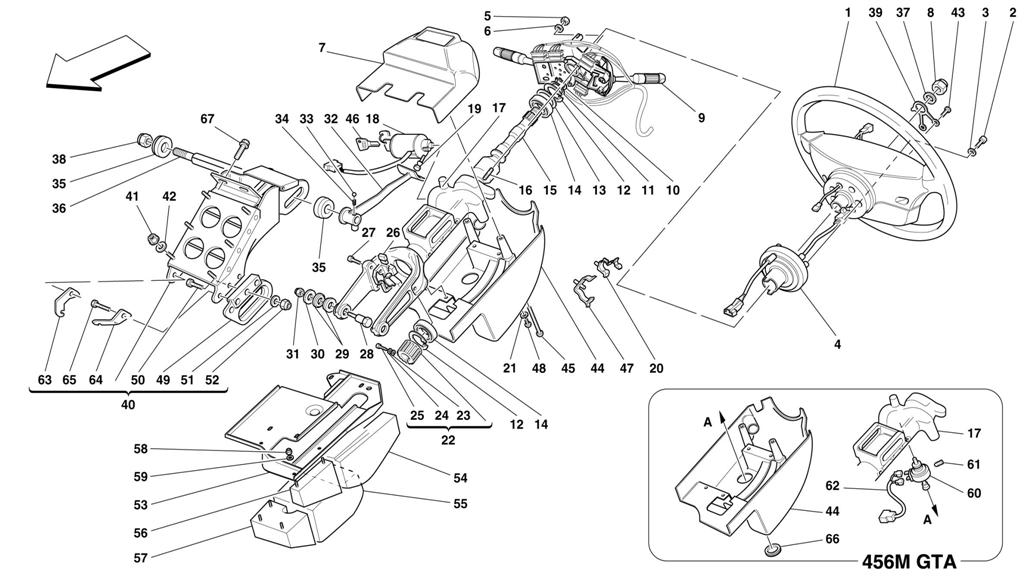

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 661207.. *Qty: 1 COMPLETE STEERING WHEEL Call
Location: 1 Prev | Next Part: 174545 *Qty: 1 COMPLETE STEERING WHEEL -Not as spare part now -Replaced by 661207.. $1,084.92
Location: 2 Prev | Next Part: 13271914 *Qty: 3 SCREW $0.90
Location: 3 Prev | Next Part: 10615274 *Qty: 3 WASHER $0.90
Location: 4 Prev | Next Part: 169471 *Qty: 1 SPIRAL CONTACT $996.48
Location: 5 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 65734700 *Qty: 1 UPPER COVER FOR STEERING ROD $618.87
Location: 8 Prev | Next Part: 101648 *Qty: 1 NUT $6.52
Location: 9 Prev | Next Part: 159411 *Qty: 1 UNHOOK DEVIATION Call
Location: 10 Prev | Next Part: 11066876 *Qty: 1 SEEGER RING $0.90
Location: 11 Prev | Next Part: 134070 *Qty: 1 SEEGER THRUST WASHER THINCKNESS mm.1.0 $4.56
Location: 11 Prev | Next Part: 134071 *Qty: 1 DITTO THICKNESS mm.1.1 $2.12
Location: 11 Prev | Next Part: 134072 *Qty: 1 DITTO THICKNESS mm.1.2 $2.10
Location: 11 Prev | Next Part: 134073 *Qty: 1 DITTO THICKNESS mm.1.3 $2.35
Location: 11 Prev | Next Part: 134074 *Qty: 1 DITTO THICKNESS mm.1.4 $2.95
Location: 12 Prev | Next Part: 11060076 *Qty: 2 SEEGER RING $0.90
Location: 13 Prev | Next Part: 134065 *Qty: 1 BEERING THRUST WASHER THINCKNESS mm.1.0 $2.44
Location: 13 Prev | Next Part: 134066 *Qty: 1 DITTO THICKNESS mm.1.1 $1.36
Location: 13 Prev | Next Part: 134067 *Qty: 1 DITTO THICKNESS mm.1.2 $2.10
Location: 13 Prev | Next Part: 134068 *Qty: 1 DITTO THICKNESS mm.1.3 $1.90
Location: 13 Prev | Next Part: 134069 *Qty: 1 DITTO THICKNESS mm.1.4 $2.84
Location: 14 Prev | Next Part: 134061 *Qty: 2 BEARING $14.60
Location: 15 Prev | Next Part: 157968 *Qty: 1 UPPER SHAFT FOR STEERING CONTROL $520.16
Location: 16 Prev | Next Part: 11001224 *Qty: 2 STUD $1.20
Location: 17 Prev | Next Part: 178008 *Qty: 1 COLUMN SUPPORT -Valid for 456M GTA $762.45
Location: 17 Prev | Next Part: 175817 *Qty: 1 COLUMN SUPPORT -Not for 456M GTA $1,646.04
Location: 18 Prev | Next Part: 164514 *Qty: 1 STEERING LOCK WITH DOORS LOCKS SET AND KEY -Valid for 456M GTA $376.44
Location: 18 Prev | Next Part: 162547 *Qty: 1 STEERING LOCK WITH DOORS LOCKS SET AND KEY -Not for 456M GTA $369.71
Location: 19 Prev | Next Part: 168046 *Qty: 1 SCREW $6.14
Location: 20 Prev | Next Part: 157386 *Qty: 4 CLIP $0.90
Location: 21 Prev | Next Part: 12601176 *Qty: 6 WASHER $0.90
Location: 22 Prev | Next Part: 150945 *Qty: 1 COMPLETE THED WHEEL $139.67
Location: 23 Prev | Next Part: 12604079 *Qty: 1 WASHER $1.30
Location: 24 Prev | Next Part: 14497701 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 14303324 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 171835 *Qty: 1 STEERING SENSOR $115.30
Location: 27 Prev | Next Part: 14303374 *Qty: 2 SCREW $0.90
Location: 28 Prev | Next Part: 152044 *Qty: 2 PIN $29.24
Location: 29 Prev | Next Part: 156061 *Qty: 4 BUSHING $17.33
Location: 30 Prev | Next Part: 100660 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 147985 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 168055 *Qty: 1 LOCK LEVER FOR STEERING COLUMN $362.13
Location: 33 Prev | Next Part: 101611 *Qty: 1 BALL $0.90
Location: 34 Prev | Next Part: 155865 *Qty: 1 SPRING $3.71
Location: 35 Prev | Next Part: 163593 *Qty: 2 SPACER $6.26
Location: 36 Prev | Next Part: 175715 *Qty: 1 SHAFT Call
Location: 37 Prev | Next Part: 10730921 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 148020 *Qty: 1 NUT $2.42
Location: 39 Prev | Next Part: 157639 *Qty: 1 SPRING $6.39
Location: 40 Prev | Next Part: 180324 *Qty: 1 COLUMN SUPPORT BRACKET -Valid from car Ass. Nr. 32065 Call
Location: 40 Prev | Next Part: 178004 *Qty: 1 COLUMN SUPPORT BRACKET -Valid till car Ass. Nr. 32064 $778.35
Location: 41 Prev | Next Part: 15896214 *Qty: 6 NUT $0.90
Location: 42 Prev | Next Part: 12643724 *Qty: 6 WASHER $0.90
Location: 43 Prev | Next Part: 11021111 *Qty: 2 SCREW $0.90
Location: 44 Prev | Next Part: 64889500 *Qty: 1 LOWER COVER FOR STEERING ROD -Valid for 456M GTA $235.53
Location: 44 Prev | Next Part: 63895900 *Qty: 1 LOWER COVER FOR STEERING ROD -Not for 456M GTA $321.86
Location: 45 Prev | Next Part: 13275217 *Qty: 2 SCREW $0.90
Location: 46 Prev | Next Part: 170010R *Qty: 0 BLANK KEY $11.00
Location: 47 Prev | Next Part: 157385 *Qty: 4 CLIP $0.90
Location: 48 Prev | Next Part: 13274117 *Qty: 4 SCREW $0.90
Location: 49 Prev | Next Part: 177972 *Qty: 1 R.H. BRACKET $197.55
Location: 49 Prev | Next Part: 177973 *Qty: 1 L.H. BRACKET $197.55
Location: 50 Prev | Next Part: 10902524 *Qty: 4 SCREW $0.90
Location: 51 Prev | Next Part: 10519424 *Qty: 6 WASHER Call
Location: 52 Prev | Next Part: 102948 *Qty: 6 NUT $0.90
Location: 53 Prev | Next Part: 64450700 *Qty: 1 UNDER COLUMN PLATE $107.33
Location: 54 Prev | Next Part: 64450900 *Qty: 1 L.H. FILLER $49.60
Location: 55 Prev | Next Part: 64450800 *Qty: 1 R.H. FILLER $60.18
Location: 56 Prev | Next Part: 64509000 *Qty: 1 L.H. OUTER INSERT $45.25
Location: 57 Prev | Next Part: 64508900 *Qty: 1 R.H. OUTER INSERT $59.52
Location: 58 Prev | Next Part: 102741 *Qty: 5 NUT $0.90
Location: 59 Prev | Next Part: 12601274 *Qty: 5 WASHER $0.90
Location: 60 Prev | Next Part: 169982 *Qty: 1 ELECTRO-MAGNET -Valid for 456M GTA $66.42
Location: 61 Prev | Next Part: 169984 *Qty: 2 DOWEL -Valid for 456M GTA $0.90
Location: 62 Prev | Next Part: 169983 *Qty: 1 ELECTRO-MAGNET LINK CABLE -Valid for 456M GTA $7.52
Location: 63 Prev | Next Part: 179121 *Qty: 1 BRAKE PEDAL RETURN SMALL PLATE Call
Location: 64 Prev | Next Part: 179120 *Qty: 1 CLUTCH PEDAL RETURN SMALL PLATE Call
Location: 65 Prev | Next Part: 10902624 *Qty: 2 SCREW $0.90
Location: 66 Prev | Next Part: 64890600 *Qty: 1 PLUG -Valid for 456M GTA $22.55
Location: 67 Prev | Next Part: 16286024 *Qty: 2 SCREW -Valid from car Ass. Nr. 32065 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
