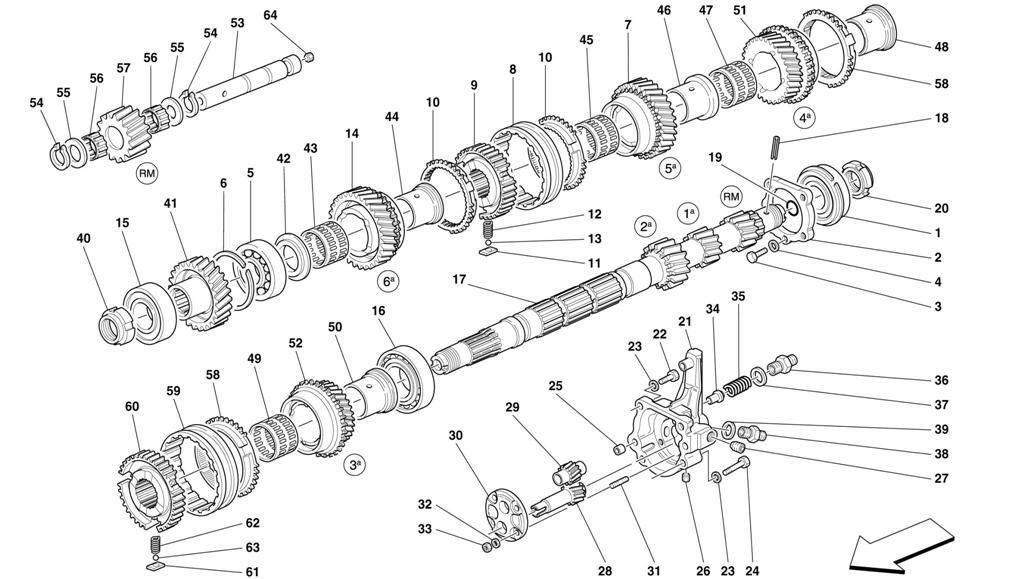

MAIN SHAFT GEARS AND GEARBOX OIL PUMP -NOT FOR 456M GTA

Go to Split View

MAIN SHAFT GEARS AND GEARBOX OIL PUMP -NOT FOR 456M GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 153206 *Qty: 1 COMPLETE OIL PUMP BODY $1,356.74
Location: 1 Prev | Next Part: 144502 *Qty: 1 BEARING FOR MAIN SHAFT PUMP OIL SIDE $194.68
Location: 2 Prev | Next Part: 144444 *Qty: 1 SUPPORT RING $73.99
Location: 3 Prev | Next Part: 16043424 *Qty: 1 SCREW $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 5 Prev | Next Part: 108656 *Qty: 1 ROLLER BEARING $624.24
Location: 6 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.24
Location: 7 Prev | Next Part: 155851 *Qty: 1 COMPLETE PINION FOR 5TH GEAR -Z 30 $329.67
Location: 8 Prev | Next Part: 152206 *Qty: 1 SLEEVE FOR SYNCHRONIZER $155.29
Location: 9 Prev | Next Part: 152207 *Qty: 1 SYNCHRONIZER BODY $340.45
Location: 10 Prev | Next Part: 152209 *Qty: 2 SYNCHRONIZER RING $328.92
Location: 11 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 12 Prev | Next Part: 152196 *Qty: 3 SPRING $0.90
Location: 13 Prev | Next Part: 152197 *Qty: 3 BALL $4.21
Location: 14 Prev | Next Part: 155852 *Qty: 1 COMPLETE PINION FOR 6TH GEAR -Z 33 $309.49
Location: 15 Prev | Next Part: 156472 *Qty: 1 ROLLER BEARING Call
Location: 16 Prev | Next Part: 131056 *Qty: 1 ROLLER BEARING $292.32
Location: 17 Prev | Next Part: 157374 *Qty: 1 MAIN SHAFT FOR GEAR LEVER $668.03
Location: 18 Prev | Next Part: 14601270 *Qty: 1 FLEXIBLE PIN $0.90
Location: 19 Prev | Next Part: 109724 *Qty: 1 O.R. GASKET $1.58
Location: 20 Prev | Next Part: 150963 *Qty: 1 RING NUT $20.32
Location: 21 Prev | Next Part: 150555 *Qty: 1 OIL PUMP BODY -Not as spare part -With complete oil pump body Call
Location: 22 Prev | Next Part: 16044224 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 16044521 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 26 Prev | Next Part: 14326150 *Qty: 2 PLUG $0.90
Location: 27 Prev | Next Part: 10269450 *Qty: 1 PLUG $34.19
Location: 28 Prev | Next Part: 109722 *Qty: 1 DRIVING GEAR $395.90
Location: 29 Prev | Next Part: 109723 *Qty: 1 DRIVEN GEAR $611.61
Location: 30 Prev | Next Part: 121962 *Qty: 1 SMALL COVER $216.81
Location: 31 Prev | Next Part: 11500024 *Qty: 4 STUD $1.06
Location: 32 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 33 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 34 Prev | Next Part: 150484 *Qty: 1 VALVE $88.74
Location: 35 Prev | Next Part: 150576 *Qty: 1 SPRING $4.09
Location: 36 Prev | Next Part: 150577 *Qty: 1 UNION $24.49
Location: 37 Prev | Next Part: 10257060 *Qty: 1 GASKET $0.90
Location: 38 Prev | Next Part: 150571 *Qty: 1 UNION $15.02
Location: 39 Prev | Next Part: 10259960 *Qty: 1 GASKET $0.90
Location: 40 Prev | Next Part: 125534 *Qty: 1 RING NUT $84.49
Location: 41 Prev | Next Part: 154761 *Qty: 1 DRIVEN GEAR -Z 28- $396.94
Location: 42 Prev | Next Part: 143886 *Qty: 1 SPACER $22.59
Location: 43 Prev | Next Part: 107525 *Qty: 1 ROLLER CAGE $17.46
Location: 44 Prev | Next Part: 143893 *Qty: 1 BUSHING $484.84
Location: 45 Prev | Next Part: 107525 *Qty: 1 ROLLER CAGE $17.46
Location: 46 Prev | Next Part: 152094 *Qty: 1 BUSHING $86.24
Location: 47 Prev | Next Part: 107525 *Qty: 1 ROLLER CAGE $17.46
Location: 48 Prev | Next Part: 152093 *Qty: 1 BUSHING $75.71
Location: 49 Prev | Next Part: 109002 *Qty: 1 ROLLER CAGE $35.95
Location: 50 Prev | Next Part: 161445 *Qty: 1 BUSHING $155.36
Location: 51 Prev | Next Part: 155850 *Qty: 1 COMPLETE PINION FOR 4TH GEAR -Z 27 $308.16
Location: 52 Prev | Next Part: 157084 *Qty: 1 COMPLETE PINION FOR 3RD GEAR -Z 23 $309.49
Location: 53 Prev | Next Part: 159410 *Qty: 1 SHAFT $65.15
Location: 54 Prev | Next Part: 158272 *Qty: 2 SEEGER RING $0.90
Location: 55 Prev | Next Part: 104249 *Qty: 2 WASHER -Th. 4 mm- $127.66
Location: 55 Prev | Next Part: 164555 *Qty: 2 WASHER -Th. 3,9 mm- -As an alternative $40.69
Location: 55 Prev | Next Part: 158257 *Qty: 2 WASHER -Th. 4,1 mm- -As an alternative $12.82
Location: 56 Prev | Next Part: 104256 *Qty: 2 ROLLER CAGE $10.19
Location: 57 Prev | Next Part: 155879 *Qty: 1 IDLE GEAR FOR REVERSE -Z 25- $1,183.17
Location: 58 Prev | Next Part: 155155 *Qty: 2 SYNCHRONIZER RING $196.38
Location: 59 Prev | Next Part: 152198 *Qty: 1 SLEEVE $280.04
Location: 60 Prev | Next Part: 161015 *Qty: 1 SYNCHRONIZER BODY $301.55
Location: 61 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 62 Prev | Next Part: 161016 *Qty: 3 SPRING $5.75
Location: 63 Prev | Next Part: 152197 *Qty: 3 BALL $4.21
Location: 64 Prev | Next Part: 10269350 *Qty: 1 PLUG $1.70

* Quantity shown indicates the number of pieces used in the diagram.
