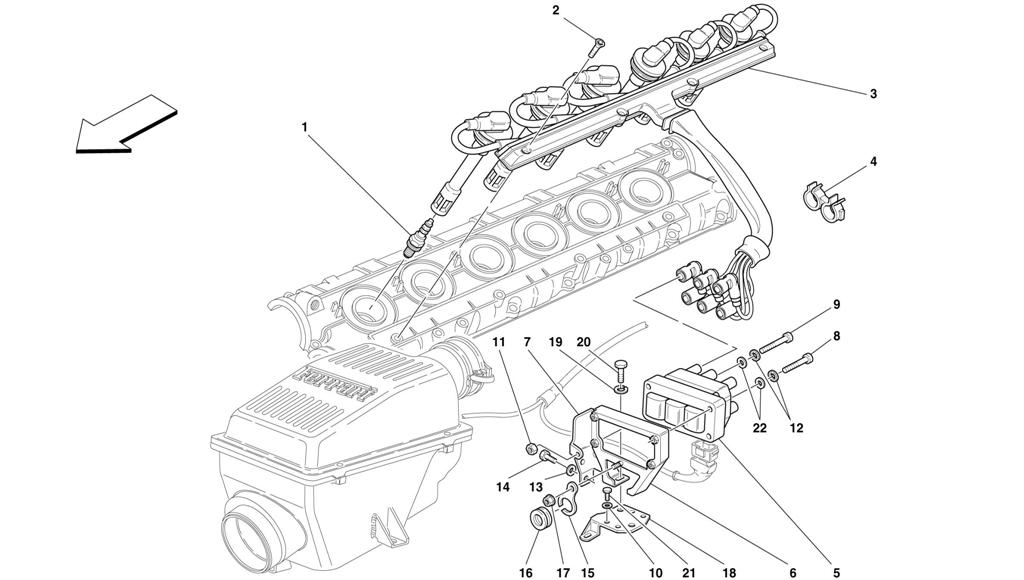

IGNITION DEVICE

Go to Split View

IGNITION DEVICE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154490 *Qty: 12 SPARK PLUG $41.23
Location: 2 Prev | Next Part: 14440834 *Qty: 8 SCREW $0.90
Location: 3 Prev | Next Part: 155788 *Qty: 1 HIGH TENSION COMPLETE CABLES FOR 1/6 CYLINDERS Call
Location: 3 Prev | Next Part: 155789 *Qty: 1 HIGH TENSION COMPLETE CABLES FOR 7/12 CYLINDERS Call
Location: 4 Prev | Next Part: 155960 *Qty: 2 CLIP $0.90
Location: 5 Prev | Next Part: 138224 *Qty: 2 IGNITION COIL $469.87
Location: 6 Prev | Next Part: 155319 *Qty: 1 R.H. BRACKET FOR IGNITION COIL SUPPORT $59.81
Location: 6 Prev | Next Part: 155320 *Qty: 1 L.H. BRACKET FOR IGNITION COIL SUPPORT $106.87
Location: 7 Prev | Next Part: 154953 *Qty: 1 L.H. PROTECTION $74.33
Location: 7 Prev | Next Part: 154955 *Qty: 1 R.H. PROTECTION $26.90
Location: 8 Prev | Next Part: 13274872 *Qty: 6 SCREW $1.81
Location: 9 Prev | Next Part: 13274972 *Qty: 2 SCREW $0.93
Location: 10 Prev | Next Part: 127494 *Qty: 8 WASHER $0.90
Location: 11 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 149951 *Qty: 8 WASHER Superseded
Location: 13 Prev | Next Part: 12601174 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 10856821 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 165792 *Qty: 2 BRACKET FOR SECONDARY AIR PIPE $5.06
Location: 16 Prev | Next Part: 10396780 *Qty: 2 INSULATING RING $0.90
Location: 17 Prev | Next Part: 14059211 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 155305 *Qty: 1 R.H. PLATE $14.77
Location: 18 Prev | Next Part: 155306 *Qty: 1 L.H. PLATE $14.77
Location: 19 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 16043124 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 10902024 *Qty: 8 SCREW $0.90
Location: 22 Prev | Next Part: 10519378 *Qty: 8 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
