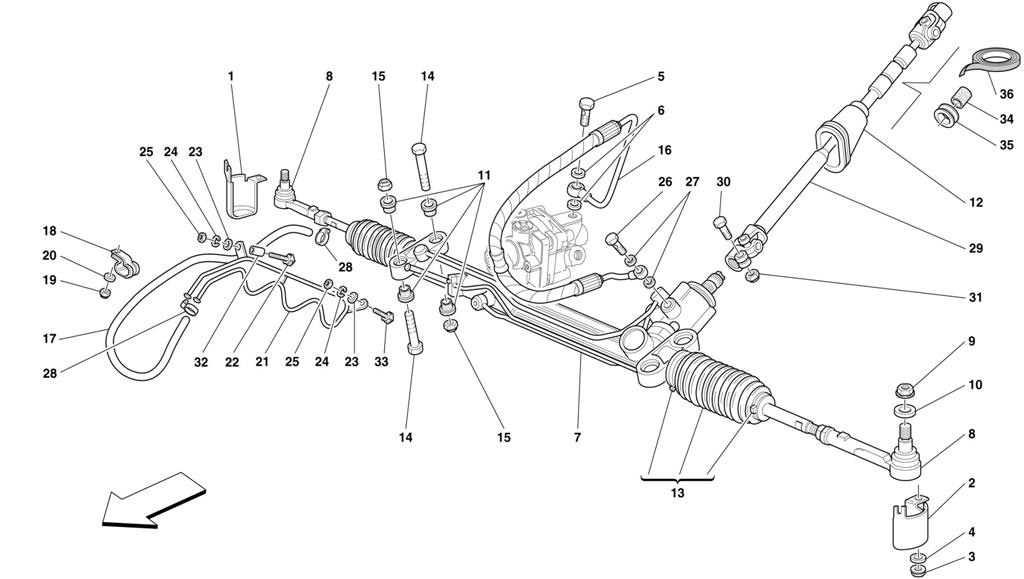

HYDRAULIC STEERING BOX AND SERPENTINE -NOT FOR RHD

Go to Split View

HYDRAULIC STEERING BOX AND SERPENTINE -NOT FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 150879 *Qty: 1 R.H. PROTECTION $17.53
Location: 2 Prev | Next Part: 150878 *Qty: 1 L.H. PROTECTION $17.53
Location: 3 Prev | Next Part: 14058319 *Qty: 4 NUT $0.90
Location: 4 Prev | Next Part: 62764900 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 10184411 *Qty: 1 UNION $75.92
Location: 6 Prev | Next Part: 10278660 *Qty: 2 GASKET $0.90
Location: 7 Prev | Next Part: 174950 *Qty: 1 STEERING BOX Call
Location: 8 Prev | Next Part: 158016 *Qty: 2 BALL JOINT $330.83
Location: 9 Prev | Next Part: 149807 *Qty: 2 NUT $1.44
Location: 10 Prev | Next Part: 155002 *Qty: 2 WASHER $4.09
Location: 11 Prev | Next Part: 155567 *Qty: 8 SILENT BLOCK $20.68
Location: 12 Prev | Next Part: 167341 *Qty: 1 GASKET FOR SHIELD $25.62
Location: 13 Prev | Next Part: 171702 *Qty: 2 COMPLETE RUBBER BOOT $163.61
Location: 14 Prev | Next Part: 175701 *Qty: 4 SCREW $3.32
Location: 15 Prev | Next Part: 175283 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 170860 *Qty: 1 PIPE FROM PUMP TO STEERING BOX $593.57
Location: 17 Prev | Next Part: 155572 *Qty: 1 RUBBER PIPE TO COOLING PIPE $54.89
Location: 18 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH $2.23
Location: 19 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 20 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 156656 *Qty: 1 REFRIGERATING COIL $189.31
Location: 22 Prev | Next Part: 14662495 *Qty: 1 SCREW -Lower side $0.90
Location: 22 Prev | Next Part: 14663195 *Qty: 1 SCREW -Upper side $2.60
Location: 23 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 170862 *Qty: 1 UNION $25.12
Location: 27 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 28 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.55
Location: 29 Prev | Next Part: 174505 *Qty: 1 CARDANIC TRANSMISSION $1,624.15
Location: 30 Prev | Next Part: 150427 *Qty: 2 SCREW $7.99
Location: 31 Prev | Next Part: 150428 *Qty: 2 NUT $1.90
Location: 32 Prev | Next Part: 165878 *Qty: 1 SPACER $10.53
Location: 33 Prev | Next Part: 14664790 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 167379 *Qty: 1 RUBBER HOSE $9.46
Location: 35 Prev | Next Part: 167376 *Qty: 1 SEAL RING $2.10
Location: 36 Prev | Next Part: 179038 *Qty: 1 FILM FOR CARDANIC TRASMISSION Call

* Quantity shown indicates the number of pieces used in the diagram.
