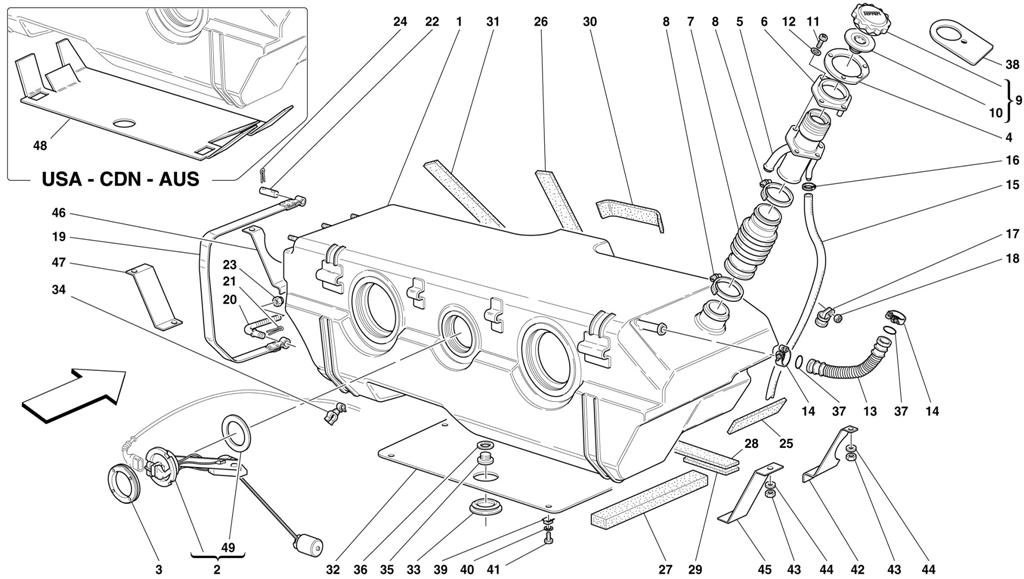

FUEL TANK -NOT FOR USA M.Y. 2000 AND CDN M.Y. 2000-

Go to Split View

FUEL TANK -NOT FOR USA M.Y. 2000 AND CDN M.Y. 2000-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 186167 *Qty: 1 FUEL TANK Call
Location: 2 Prev | Next Part: 154556 *Qty: 1 FUEL LEVEL INDICATOR CONTROL Call
Location: 3 Prev | Next Part: 121435 *Qty: 1 RING NUT $156.51
Location: 4 Prev | Next Part: 160777 *Qty: 1 COUNTER FLANGE $22.27
Location: 5 Prev | Next Part: 160774 *Qty: 1 UNION -Valid for catalyzed cars Call
Location: 5 Prev | Next Part: 161021 *Qty: 1 UNION -Valid for not catalyzed cars $221.54
Location: 6 Prev | Next Part: 160778 *Qty: 1 GASKET $27.92
Location: 7 Prev | Next Part: 178061 *Qty: 1 UNION-TANK CONNECTING PIPE $538.85
Location: 8 Prev | Next Part: 13000790 *Qty: 2 SCREW COLLAR $0.90
Location: 9 Prev | Next Part: 180320 *Qty: 1 COMPLETE PLUG $973.78
Location: 10 Prev | Next Part: 180585 *Qty: 1 GASKET -For plug 175708 $92.62
Location: 10 Prev | Next Part: 180319 *Qty: 1 GASKET -For plug 180320 $429.92
Location: 11 Prev | Next Part: 13276470 *Qty: 3 SCREW $0.90
Location: 12 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 13 Prev | Next Part: 147246 *Qty: 1 VENT PIPE FROM TANK TO UNION Call
Location: 14 Prev | Next Part: 164015 *Qty: 2 SCREW COLLAR $0.93
Location: 15 Prev | Next Part: 174472 *Qty: 1 VENT PIPE $67.44
Location: 16 Prev | Next Part: 161490 *Qty: 1 SCREW COLLAR $2.55
Location: 17 Prev | Next Part: 10441690 *Qty: 2 BRACKET $0.90
Location: 18 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 19 Prev | Next Part: 158345 *Qty: 2 FUEL TANK FASTENER $41.91
Location: 20 Prev | Next Part: 127529 *Qty: 2 TIE ROD $119.86
Location: 21 Prev | Next Part: 10796440 *Qty: 2 SPLIT PIN $0.90
Location: 22 Prev | Next Part: 103447 *Qty: 2 PIN $3.37
Location: 23 Prev | Next Part: 104030 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 10796440 *Qty: 4 SPLIT PIN $0.90
Location: 25 Prev | Next Part: 156679 *Qty: 1 RUBBER THICKNESS $1.85
Location: 26 Prev | Next Part: 156680 *Qty: 2 RUBBER THICKNESS $4.43
Location: 27 Prev | Next Part: 159146 *Qty: 2 RUBBER THICKNESS $5.72
Location: 28 Prev | Next Part: 156682 *Qty: 1 RUBBER THICKNESS $13.69
Location: 29 Prev | Next Part: 159147 *Qty: 2 RUBBER THICKNESS $1.15
Location: 30 Prev | Next Part: 157411 *Qty: 2 RUBBER THICKNESS $2.69
Location: 31 Prev | Next Part: 157412 *Qty: 6 RUBBER THICKNESS $4.72
Location: 32 Prev | Next Part: 63939100 *Qty: 1 LOWER SHIELD $250.26
Location: 33 Prev | Next Part: 63965800 *Qty: 1 PLUG $7.46
Location: 34 Prev | Next Part: 155887 *Qty: 8 FIXING CLIP $0.90
Location: 35 Prev | Next Part: 148045 *Qty: 1 OUTLET PLUG $23.09
Location: 36 Prev | Next Part: 123622 *Qty: 1 GASKET $1.97
Location: 37 Prev | Next Part: 142106 *Qty: 2 GASKET $8.81
Location: 38 Prev | Next Part: 62943200 *Qty: 1 RUBBER PROTECTION $27.96
Location: 39 Prev | Next Part: 65774200 *Qty: 6 NUT WITH CAGE $1.15
Location: 40 Prev | Next Part: 14488670 *Qty: 6 WASHER $0.90
Location: 41 Prev | Next Part: 10902124 *Qty: 6 SCREW $0.90
Location: 42 Prev | Next Part: 64337500 *Qty: 1 R.H. FRONT HEAT SHIELD $76.10
Location: 43 Prev | Next Part: 169180 *Qty: 8 NUT $0.90
Location: 44 Prev | Next Part: 12638124 *Qty: 8 WASHER $0.90
Location: 45 Prev | Next Part: 64337700 *Qty: 1 R.H. REAR HEAT SHIELD $98.81
Location: 46 Prev | Next Part: 64337600 *Qty: 1 L.H. FRONT HEAT SHIELD $76.10
Location: 47 Prev | Next Part: 64337800 *Qty: 1 L.H. REAR HEAT SHIELD $98.81
Location: 48 Prev | Next Part: 65460500 *Qty: 1 SHIELD FOR TANK PROTECTION -Valid for USA, CDN and AUS $154.78
Location: 49 Prev | Next Part: 154802 *Qty: 1 GASKET $32.92

* Quantity shown indicates the number of pieces used in the diagram.
