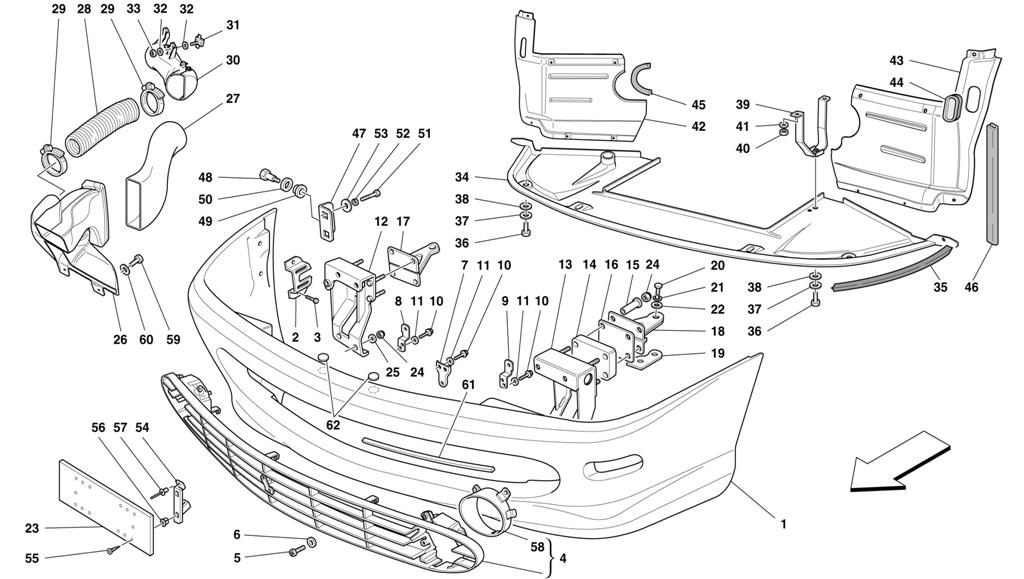

FRONT BUMPER

Go to Split View

FRONT BUMPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65616210 *Qty: 1 FRONT BUMPER -Valid for CDN $3,291.95
Location: 1 Prev | Next Part: 65284110 *Qty: 1 FRONT BUMPER -Not for USA and CDN Call
Location: 1 Prev | Next Part: 65679010 *Qty: 1 FRONT BUMPER -Valid for USA Call
Location: 2 Prev | Next Part: 65282300 *Qty: 2 BRACKET $365.59
Location: 3 Prev | Next Part: 16285127 *Qty: 4 SCREW $0.90
Location: 4 Prev | Next Part: 65287800 *Qty: 1 FRONT GRILL $4,559.38
Location: 5 Prev | Next Part: 13276177 *Qty: 9 SCREW $0.90
Location: 6 Prev | Next Part: 10519424 *Qty: 9 WASHER Call
Location: 7 Prev | Next Part: 65468300 *Qty: 7 BRACKET FOR GRID FIXING $75.56
Location: 8 Prev | Next Part: 65468400 *Qty: 1 R.H. GRID FIXING PLATE $16.65
Location: 9 Prev | Next Part: 65468500 *Qty: 1 L.H. GRID FIXING PLATE $62.97
Location: 10 Prev | Next Part: 10977724 *Qty: 18 SCREW $0.90
Location: 11 Prev | Next Part: 12638124 *Qty: 18 WASHER $0.90
Location: 12 Prev | Next Part: 65282100 *Qty: 1 R.H. FIXED BRACKET FOR BUMPER $273.25
Location: 13 Prev | Next Part: 65282200 *Qty: 1 L.H. FIXED BRACKET FOR BUMPER $833.23
Location: 14 Prev | Next Part: 63214100 *Qty: 2 PAD $50.62
Location: 15 Prev | Next Part: 65372900 *Qty: 8 BUSHING $7.56
Location: 16 Prev | Next Part: 63738800 *Qty: 2 PLATE $5.06
Location: 17 Prev | Next Part: 65810200 *Qty: 1 R.H. SUPPORT -Valid for CDN $81.35
Location: 17 Prev | Next Part: 65550100 *Qty: 1 R.H. SUPPORT -Not for CDN $240.70
Location: 18 Prev | Next Part: 65810300 *Qty: 1 L.H. SUPPORT -Valid for CDN $81.35
Location: 18 Prev | Next Part: 65550200 *Qty: 1 L.H. SUPPORT -Not for CDN $240.70
Location: 19 Prev | Next Part: 63215400 *Qty: 8 SPACER $2.69
Location: 20 Prev | Next Part: 15540624 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 10571974 *Qty: 4 WASHER Call
Location: 22 Prev | Next Part: 13578804 *Qty: 4 WASHER Call
Location: 23 Prev | Next Part: 63736300 *Qty: 1 FRONT PLATE FRAME "CEE" -Valid for D $78.59
Location: 23 Prev | Next Part: 63736400 *Qty: 1 FRONT PLATE FRAME "ITALIA" -Not for CH, D and J $75.01
Location: 23 Prev | Next Part: 65272100 *Qty: 1 FRONT PLATE FRAME -Valid for J $39.93
Location: 23 Prev | Next Part: 65272400 *Qty: 1 FRONT PLATE FRAME -Valid for CH Call
Location: 24 Prev | Next Part: 12574521 *Qty: 16 NUT $0.90
Location: 25 Prev | Next Part: 12646821 *Qty: 8 WASHER $0.90
Location: 26 Prev | Next Part: 65990800 *Qty: 1 R.H. AIR INTAKE ASSEMBLY -Valid after stock exhaustion of 65571000 $963.32
Location: 26 Prev | Next Part: 65990900 *Qty: 1 L.H. AIR INTAKE ASSEMBLY -Valid after stock exhaustion of 65570900 $516.44
Location: 27 Prev | Next Part: 175621 *Qty: 1 R.H. AIR INLET $23.20
Location: 27 Prev | Next Part: 175622 *Qty: 1 L.H. AIR INLET $23.20
Location: 28 Prev | Next Part: 177780 *Qty: 2 FRONT BRAKES COOLING PIPE $176.23
Location: 29 Prev | Next Part: 13001090 *Qty: 4 SCREW COLLAR $1.94
Location: 30 Prev | Next Part: 168355 *Qty: 1 R.H. BRAKES AIR INLET $47.67
Location: 30 Prev | Next Part: 168356 *Qty: 1 L.H. BRAKES AIR INLET $47.67
Location: 31 Prev | Next Part: 14662695 *Qty: 4 SCREW $5.80
Location: 32 Prev | Next Part: 12646601 *Qty: 4 WASHER $0.90
Location: 33 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 34 Prev | Next Part: 65282000 *Qty: 1 FRONT UNDER THE BODY SHELL Call
Location: 35 Prev | Next Part: 65553900 *Qty: 1 GASKET Call
Location: 36 Prev | Next Part: 10902624 *Qty: 6 SCREW $0.90
Location: 37 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 38 Prev | Next Part: 12640624 *Qty: 6 WASHER $0.90
Location: 39 Prev | Next Part: 65808400 *Qty: 1 L.H. SUPPORT $28.06
Location: 39 Prev | Next Part: 63874600 *Qty: 1 R.H. SUPPORT $28.06
Location: 40 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 41 Prev | Next Part: 12643770 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 65287600 *Qty: 1 R.H. FRONT GRAVEL GUARD Call
Location: 43 Prev | Next Part: 65287700 *Qty: 1 L.H. FRONT GRAVEL GUARD $134.59
Location: 44 Prev | Next Part: 62797700 *Qty: 2 PLUG $3.60
Location: 45 Prev | Next Part: 64517200 *Qty: 2 GASKET $8.36
Location: 46 Prev | Next Part: 65288000 *Qty: 2 GASKET -Valid till stock exhaustion Call
Location: 46 Prev | Next Part: 65840000 *Qty: 2 GASKET -Valid after stock exhaustion of 65288000 $7.25
Location: 47 Prev | Next Part: 65283200 *Qty: 2 BUMPER LATERAL FIXING R.H. BRACKET $183.32
Location: 48 Prev | Next Part: 65228800 *Qty: 2 PIN $8.71
Location: 49 Prev | Next Part: 65228700 *Qty: 2 BUSHING $7.43
Location: 50 Prev | Next Part: 12646970 *Qty: 2 WASHER $1.87
Location: 51 Prev | Next Part: 10902624 *Qty: 4 SCREW $0.90
Location: 52 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 53 Prev | Next Part: 12640624 *Qty: 4 WASHER $0.90
Location: 54 Prev | Next Part: 65562100 *Qty: 1 R.H. BRACKET $53.50
Location: 54 Prev | Next Part: 65562200 *Qty: 1 L.H. BRACKET $53.50
Location: 55 Prev | Next Part: 15917777 *Qty: 4 SCREW $0.90
Location: 56 Prev | Next Part: 14215480 *Qty: 4 NUT SCREW Superseded
Location: 57 Prev | Next Part: 14296196 *Qty: 4 RIVET $0.90
Location: 58 Prev | Next Part: 65682200 *Qty: 1 L.H. LIGHT FRAME $359.26
Location: 58 Prev | Next Part: 65682100 *Qty: 1 R.H. LIGHT FRAME $359.26
Location: 59 Prev | Next Part: 10977724 *Qty: 4 SCREW -For Air Intakes 65570900 and 65571000 q.ty 6 $0.90
Location: 60 Prev | Next Part: 12638124 *Qty: 4 WASHER -For Air Intakes 65570900 and 65571000 q.ty 6 $0.90
Location: 61 Prev | Next Part: 65376500 *Qty: 1 ANTI-VIBRATIONS Call
Location: 62 Prev | Next Part: 62948300 *Qty: 2 PROTECTION Call

* Quantity shown indicates the number of pieces used in the diagram.
