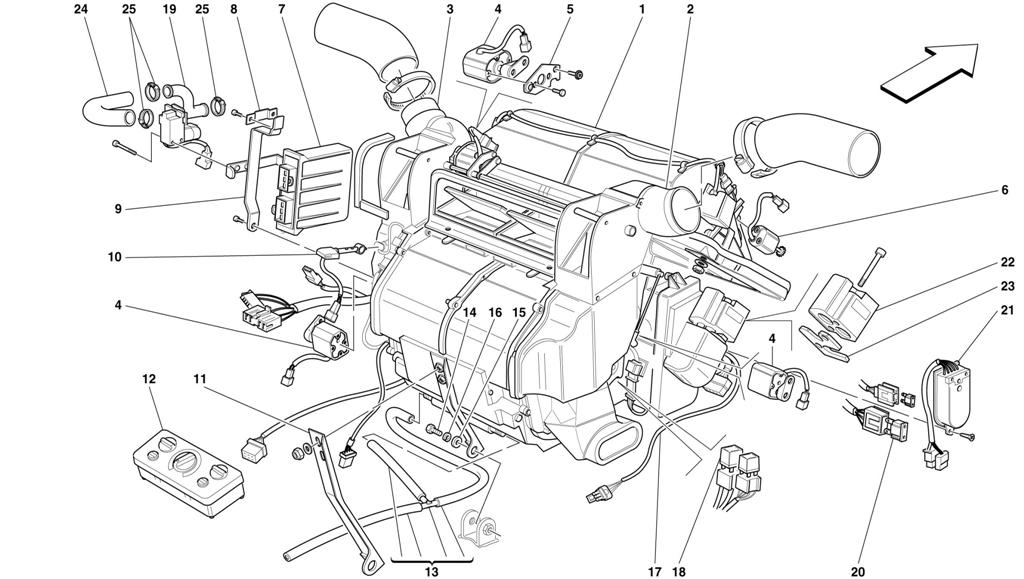

EVAPORATOR UNIT AND CONTROLS

Go to Split View

EVAPORATOR UNIT AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65433000 *Qty: 1 COMPLETE EVAPORATOR SET -Not for GD -Valid till car Ass. Nr. 34807 Call
Location: 1 Prev | Next Part: 65618000 *Qty: 1 COMPLETE EVAPORATOR SET -Valid for GD $6,144.06
Location: 1 Prev | Next Part: 65928900 *Qty: 1 COMPLETE EVAPORATOR SET -Not for GD -Valid from car Ass. Nr. 34808 $4,997.55
Location: 2 Prev | Next Part: 64929800 *Qty: 1 R.H. AIR DISTRIBUTOR -Not for GD $149.52
Location: 2 Prev | Next Part: 65026000 *Qty: 1 R.H. AIR DISTRIBUTOR -Valid for GD $86.17
Location: 3 Prev | Next Part: 64680800 *Qty: 1 L.H. AIR DISTRIBUTOR -Not for GD $97.98
Location: 3 Prev | Next Part: 65026100 *Qty: 1 L.H. AIR DISTRIBUTOR -Valid for GD $86.17
Location: 4 Prev | Next Part: 64280800 *Qty: 3 ELECTRIC MOTOR $186.44
Location: 5 Prev | Next Part: 64281300 *Qty: 1 BRACKET $15.80
Location: 6 Prev | Next Part: 64280700 *Qty: 1 L.H. ELECTRIC MOTOR $208.71
Location: 6 Prev | Next Part: 64280900 *Qty: 1 R.H. ELECTRIC MOTOR $124.26
Location: 7 Prev | Next Part: 65674800 *Qty: 1 ELECTRONIC CONTROL STATION -Valid for GD $1,382.70
Location: 7 Prev | Next Part: 65929100 *Qty: 1 ELECTRONIC CONTROL STATION -Not for GD -Valid from car Ass. Nr. 34808 $1,614.49
Location: 8 Prev | Next Part: 64298300 *Qty: 1 SMALL PLATE $8.38
Location: 9 Prev | Next Part: 64281100 *Qty: 1 BRACKET $16.26
Location: 10 Prev | Next Part: 63962000 *Qty: 2 TREATED AIR FEELER $49.42
Location: 11 Prev | Next Part: 64689900 *Qty: 1 BRACKET $64.49
Location: 12 Prev | Next Part: 65433300 *Qty: 1 A/C CONTROL PLATE -Not for USA and GB $2,234.99
Location: 12 Prev | Next Part: 65433400 *Qty: 1 A/C CONTROL PLATE -Valid for USA and GB $1,981.14
Location: 13 Prev | Next Part: 63973900 *Qty: 1 CONDENSATE OUTLET PIPES ASSEMBLY $455.27
Location: 14 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 10569279 *Qty: 1 WASHER $0.90
Location: 17 Prev | Next Part: 65618400 *Qty: 1 A/C ELECTRIC WIRING $823.01
Location: 18 Prev | Next Part: 64286100 *Qty: 1 RELAY $78.36
Location: 19 Prev | Next Part: 64999000 *Qty: 1 TGK VALVE $287.84
Location: 20 Prev | Next Part: 64286200 *Qty: 1 FUSE 40 A $12.22
Location: 21 Prev | Next Part: 64280200 *Qty: 1 ELECTROFAN REGULATOR $427.35
Location: 22 Prev | Next Part: 63960100 *Qty: 1 EXPANSION VALVE $197.56
Location: 23 Prev | Next Part: 64281400 *Qty: 1 FLANGE $11.21
Location: 24 Prev | Next Part: 65201000 *Qty: 1 RETURN TUBE FROM HEATER TO VALVE $26.99
Location: 25 Prev | Next Part: 13000490 *Qty: 3 SCREW COLLAR Call
Location: 25 Prev | Next Part: 65424800 *Qty: 3 CLAMP -Not as spare part now -Replaced by 13000490 $4.26

* Quantity shown indicates the number of pieces used in the diagram.
