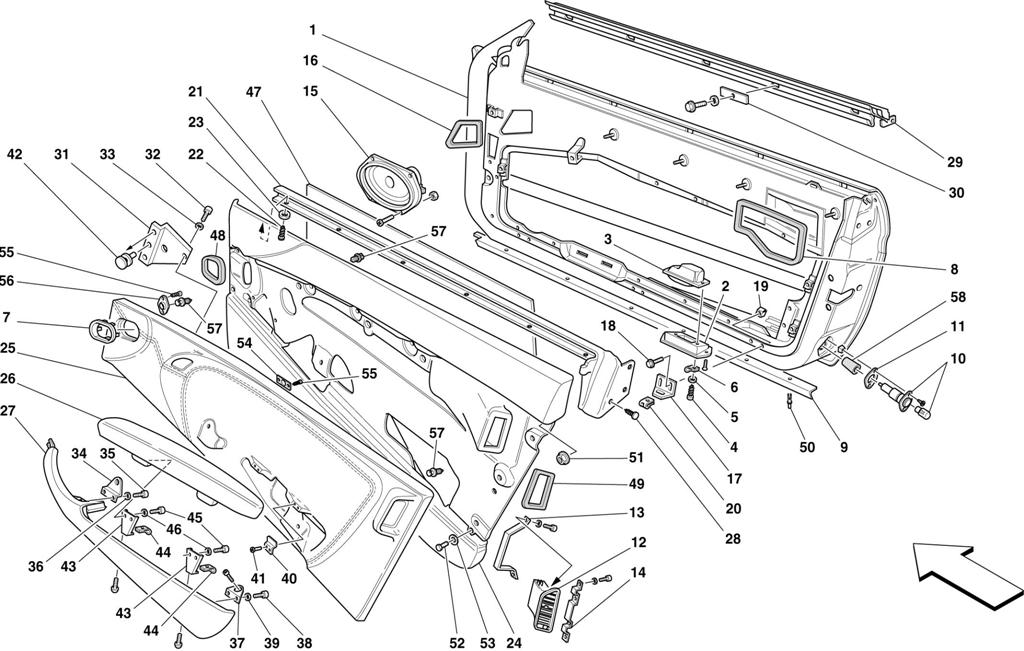

DOORS - FRAMEWORK AND COVERINGS

Go to Split View

DOORS - FRAMEWORK AND COVERINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65439900 *Qty: 1 L.H. DOOR FRAME -Not for USA, CDN and AUS Call
Location: 1 Prev | Next Part: 65563700 *Qty: 1 R.H. DOOR FRAME -Valid for USA, CDN and AUS Call
Location: 1 Prev | Next Part: 65563800 *Qty: 1 L.H. DOOR FRAME -Valid for USA, CDN and AUS Call
Location: 1 Prev | Next Part: 65439800 *Qty: 1 R.H. DOOR FRAME -Not for USA, CDN and AUS Call
Location: 2 Prev | Next Part: 60842000 *Qty: 2 UNDER DOOR BOX LAMP $5.47
Location: 3 Prev | Next Part: 65088400 *Qty: 2 UNDER DOOR LAMP $42.83
Location: 4 Prev | Next Part: 15901575 *Qty: 4 SCREW $0.90
Location: 5 Prev | Next Part: 12639477 *Qty: 4 WASHER $4.15
Location: 6 Prev | Next Part: 62767500 *Qty: 4 CLIP $0.90
Location: 7 Prev | Next Part: 63723800 *Qty: 2 FRAME $54.63
Location: 8 Prev | Next Part: 65449200 *Qty: 1 R.H. GASKET $5.11
Location: 8 Prev | Next Part: 65689800 *Qty: 1 L.H. GASKET $5.11
Location: 9 Prev | Next Part: 63488300 *Qty: 1 L.H. LOWER GASKET $45.90
Location: 9 Prev | Next Part: 63758200 *Qty: 1 R.H. LOWER GASKET $45.51
Location: 10 Prev | Next Part: 184786 *Qty: 2 OPENING DOOR LAMP $20.92
Location: 11 Prev | Next Part: 140576 *Qty: 2 GASKET $16.19
Location: 12 Prev | Next Part: 63850400 *Qty: 1 R.H. AIR DIFFUSOR OPENING $67.15
Location: 12 Prev | Next Part: 63850500 *Qty: 1 L.H. AIR DIFFUSOR OPENING $100.26
Location: 13 Prev | Next Part: 65286400 *Qty: 1 R.H. BRACKET Call
Location: 13 Prev | Next Part: 65430400 *Qty: 1 L.H. BRACKET $31.60
Location: 14 Prev | Next Part: 65286700 *Qty: 2 BRACKET $36.22
Location: 15 Prev | Next Part: 174806 *Qty: 2 LOUD SPEAKER WOOFER $120.31
Location: 16 Prev | Next Part: 65449100 *Qty: 1 R.H. GASKET $2.42
Location: 16 Prev | Next Part: 65689700 *Qty: 1 L.H. GASKET $2.42
Location: 17 Prev | Next Part: 65297600 *Qty: 6 BRACKET $6.00
Location: 18 Prev | Next Part: 13833171 *Qty: 12 SCREW $0.90
Location: 19 Prev | Next Part: 14647490 *Qty: 12 NUT $0.90
Location: 20 Prev | Next Part: 62764200 *Qty: 6 SPRING $0.90
Location: 21 Prev | Next Part: 65432200 *Qty: 1 R.H. GLASS SCRAPER $457.12
Location: 21 Prev | Next Part: 65432300 *Qty: 1 L.H. GLASS SCRAPER $457.12
Location: 22 Prev | Next Part: 15901475 *Qty: 12 SCREW $0.90
Location: 23 Prev | Next Part: 14498501 *Qty: 12 WASHER $0.90
Location: 25 Prev | Next Part: 654474.. *Qty: 1 LINING Call
Location: 25 Prev | Next Part: 654475.. *Qty: 1 LINING Call
Location: 25 Prev | Next Part: 654702.. *Qty: 1 R.H. COVERED CENTRAL PANEL MOULDING Call
Location: 25 Prev | Next Part: 654703.. *Qty: 1 L.H. COVERED CENTRAL PANEL MOULDING Call
Location: 26 Prev | Next Part: 654498.. *Qty: 1 LINING Call
Location: 26 Prev | Next Part: 654499.. *Qty: 1 LINING Call
Location: 26 Prev | Next Part: 654706.. *Qty: 1 R.H. DOOR ARM-REST Call
Location: 26 Prev | Next Part: 654707.. *Qty: 1 L.H. DOOR ARM-REST Call
Location: 27 Prev | Next Part: 654711.. *Qty: 1 L.H. HANDLE MOULDING Call
Location: 27 Prev | Next Part: 654620.. *Qty: 1 LINING Call
Location: 27 Prev | Next Part: 654621.. *Qty: 1 LINING Call
Location: 27 Prev | Next Part: 654710.. *Qty: 1 R.H. HANDLE MOULDING Call
Location: 28 Prev | Next Part: 178949 *Qty: 6 CLIP $0.90
Location: 29 Prev | Next Part: 65432400 *Qty: 1 R.H. OUTER GLASS SCRAPER $1,182.39
Location: 29 Prev | Next Part: 65432500 *Qty: 1 L.H. OUTER GLASS SCRAPER $673.56
Location: 30 Prev | Next Part: 65655000 *Qty: 10 THICKNESS Call
Location: 31 Prev | Next Part: 65431500 *Qty: 2 PANEL FIXING BRACKET Call
Location: 32 Prev | Next Part: 13273872 *Qty: 6 SCREW $0.90
Location: 33 Prev | Next Part: 12637824 *Qty: 6 WASHER $0.90
Location: 34 Prev | Next Part: 65286500 *Qty: 1 R.H. FRONT BRACKET $55.97
Location: 34 Prev | Next Part: 65286600 *Qty: 1 L.H. FRONT BRACKET Call
Location: 35 Prev | Next Part: 13273872 *Qty: 4 SCREW $0.90
Location: 36 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 65286900 *Qty: 2 REAR BRACKET $16.47
Location: 38 Prev | Next Part: 13273872 *Qty: 4 SCREW $0.90
Location: 39 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 65286000 *Qty: 4 BRACKET $16.47
Location: 41 Prev | Next Part: 15901475 *Qty: 8 SCREW $0.90
Location: 42 Prev | Next Part: 64580400 *Qty: 2 BLOCK $0.90
Location: 43 Prev | Next Part: 65285900 *Qty: 4 BRACKET $54.79
Location: 44 Prev | Next Part: 62764200 *Qty: 4 SPRINGS $0.90
Location: 45 Prev | Next Part: 13273872 *Qty: 8 SCREW $0.90
Location: 46 Prev | Next Part: 12637824 *Qty: 8 WASHER $0.90
Location: 47 Prev | Next Part: 65557600 *Qty: 1 R.H. WATER PROTECTION CLOTH $5.37
Location: 47 Prev | Next Part: 65557700 *Qty: 1 L.H. WATER PROTECTION CLOTH $5.37
Location: 47 Prev | Next Part: 65059500 *Qty: 2 WATER PROTECTION CLOTH FOR MICRO-SWITCH Call
Location: 48 Prev | Next Part: 65448500 *Qty: 1 R.H. GASKET $15.32
Location: 48 Prev | Next Part: 65690000 *Qty: 1 L.H. GASKET $11.63
Location: 49 Prev | Next Part: 65449300 *Qty: 1 R.H. GASKET $0.90
Location: 49 Prev | Next Part: 65689900 *Qty: 1 L.H. GASKET $0.90
Location: 50 Prev | Next Part: 62764000 *Qty: 16 RIVET $0.90
Location: 51 Prev | Next Part: 13832101 *Qty: 8 NUT $0.90
Location: 52 Prev | Next Part: 10977524 *Qty: 8 SCREW $0.90
Location: 53 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 53 Prev | Next Part: 12624177 *Qty: 6 WASHER $0.90
Location: 54 Prev | Next Part: 64758500 *Qty: 6 PLATE $13.69
Location: 55 Prev | Next Part: 15914877 *Qty: 28 SCREW $0.90
Location: 56 Prev | Next Part: 64712800 *Qty: 14 PLATE $2.24
Location: 57 Prev | Next Part: 14188181 *Qty: 16 RETAINER $0.90
Location: 58 Prev | Next Part: 60101201 *Qty: 2 BOOT $7.01

* Quantity shown indicates the number of pieces used in the diagram.
