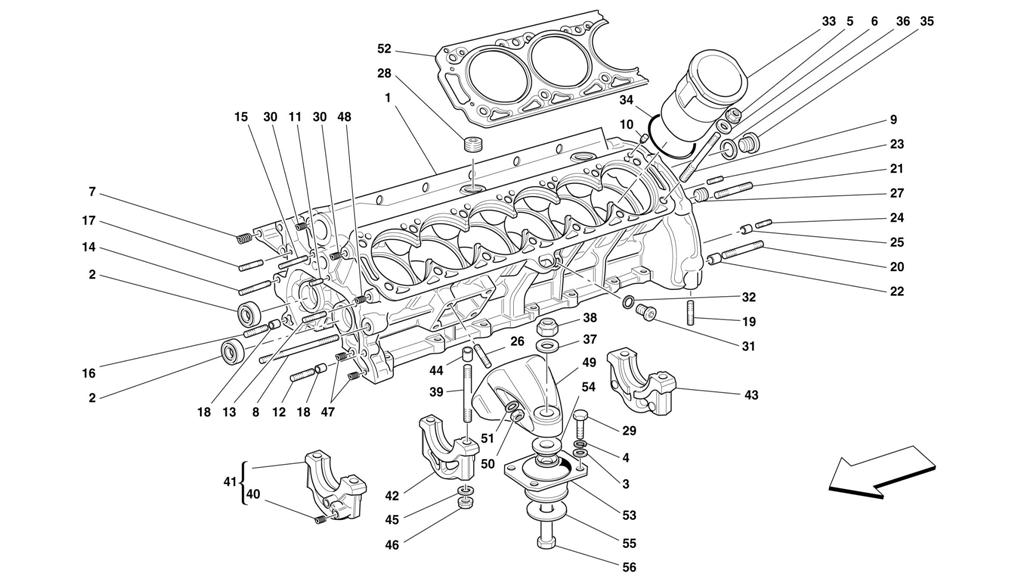

CRANKCASE

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 173504 *Qty: 1 COMPLETE BASE-PLATE $14,129.47
Location: 1 Prev | Next Part: 164849 *Qty: 1 CRANKCASE -Not as spare part -With the compl. crankcase 173504 Call
Location: 2 Prev | Next Part: 171177 *Qty: 2 BEARING $21.33
Location: 3 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 4 Prev | Next Part: 127497 *Qty: 8 WASHER $0.90
Location: 5 Prev | Next Part: 140664 *Qty: 28 NUT $20.20
Location: 6 Prev | Next Part: 140603 *Qty: 28 WASHER $1.32
Location: 7 Prev | Next Part: 13526170 *Qty: 3 THREADED INSERT $6.47
Location: 8 Prev | Next Part: 13972234 *Qty: 1 STUD Call
Location: 9 Prev | Next Part: 140591 *Qty: 28 STUD Call
Location: 10 Prev | Next Part: 152627 *Qty: 4 DOWEL $4.49
Location: 11 Prev | Next Part: 13541224 *Qty: 1 STUD $0.90
Location: 12 Prev | Next Part: 13543924 *Qty: 1 STUD $1.65
Location: 13 Prev | Next Part: 13543524 *Qty: 1 STUD $0.96
Location: 14 Prev | Next Part: 13541924 *Qty: 1 STUD $1.81
Location: 15 Prev | Next Part: 13541724 *Qty: 1 STUD $2.07
Location: 16 Prev | Next Part: 13543424 *Qty: 1 STUD $0.90
Location: 17 Prev | Next Part: 13543824 *Qty: 1 STUD Superseded
Location: 18 Prev | Next Part: 100041 *Qty: 2 DOWEL $9.31
Location: 19 Prev | Next Part: 13517224 *Qty: 2 STUD $1.03
Location: 20 Prev | Next Part: 13543924 *Qty: 1 STUD $1.65
Location: 21 Prev | Next Part: 13543824 *Qty: 3 STUD Superseded
Location: 22 Prev | Next Part: 102704 *Qty: 2 DOWEL $2.18
Location: 23 Prev | Next Part: 13541024 *Qty: 2 STUD $0.90
Location: 24 Prev | Next Part: 13541224 *Qty: 2 STUD $0.90
Location: 25 Prev | Next Part: 103038 *Qty: 2 DOWEL $1.60
Location: 26 Prev | Next Part: 13546524 *Qty: 8 STUD Superseded
Location: 27 Prev | Next Part: 10268450 *Qty: 2 THREADED PLUG $8.70
Location: 28 Prev | Next Part: 14325540 *Qty: 2 THREADED PLUG $12.13
Location: 29 Prev | Next Part: 15970634 *Qty: 8 SCREW $0.90
Location: 30 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.43
Location: 31 Prev | Next Part: 150731 *Qty: 2 THREADED PLUG $4.87
Location: 32 Prev | Next Part: 10280060 *Qty: 2 GASKET $0.90
Location: 33 Prev | Next Part: 166991 *Qty: 12 CYLINDER LINER $327.38
Location: 34 Prev | Next Part: 140321 *Qty: 12 GASKET $8.87
Location: 35 Prev | Next Part: 10304640 *Qty: 1 THREADED PLUG $6.70
Location: 36 Prev | Next Part: 10264560 *Qty: 1 GASKET $0.90
Location: 37 Prev | Next Part: 12601774 *Qty: 2 WASHER $0.90
Location: 38 Prev | Next Part: 176573 *Qty: 2 NUT $1.32
Location: 39 Prev | Next Part: 140553 *Qty: 14 STUD $9.64
Location: 40 Prev | Next Part: 13525770 *Qty: 2 THREADED INSERT $0.90
Location: 41 Prev | Next Part: 140545 *Qty: 1 FRONT HAT -Not as spare part -With complete crankase Call
Location: 42 Prev | Next Part: 140499 *Qty: 5 INTERMEDIATE HAT -Not as spare part -With complete crankase Call
Location: 43 Prev | Next Part: 140565 *Qty: 1 REAR HAT -Not as spare part -With complete crankase Call
Location: 44 Prev | Next Part: 145493 *Qty: 14 DOWEL $2.21
Location: 45 Prev | Next Part: 142588 *Qty: 14 WASHER $1.34
Location: 46 Prev | Next Part: 142590 *Qty: 14 NUT $6.54
Location: 47 Prev | Next Part: 13525570 *Qty: 2 THREADED INSERT $3.27
Location: 48 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27
Location: 49 Prev | Next Part: 141892 *Qty: 2 SUPPORT FOR MOTOR FIXING $270.12
Location: 50 Prev | Next Part: 133988 *Qty: 8 NUT $0.90
Location: 51 Prev | Next Part: 11190574 *Qty: 8 WASHER $0.90
Location: 52 Prev | Next Part: 142865 *Qty: 2 GASKET $251.71
Location: 53 Prev | Next Part: 159423 *Qty: 2 WICK BODY $177.05
Location: 54 Prev | Next Part: 132268 *Qty: 2 SPACER Call
Location: 55 Prev | Next Part: 132269 *Qty: 2 SPACER Call
Location: 56 Prev | Next Part: 15981634 *Qty: 2 SCREW $3.74

* Quantity shown indicates the number of pieces used in the diagram.
