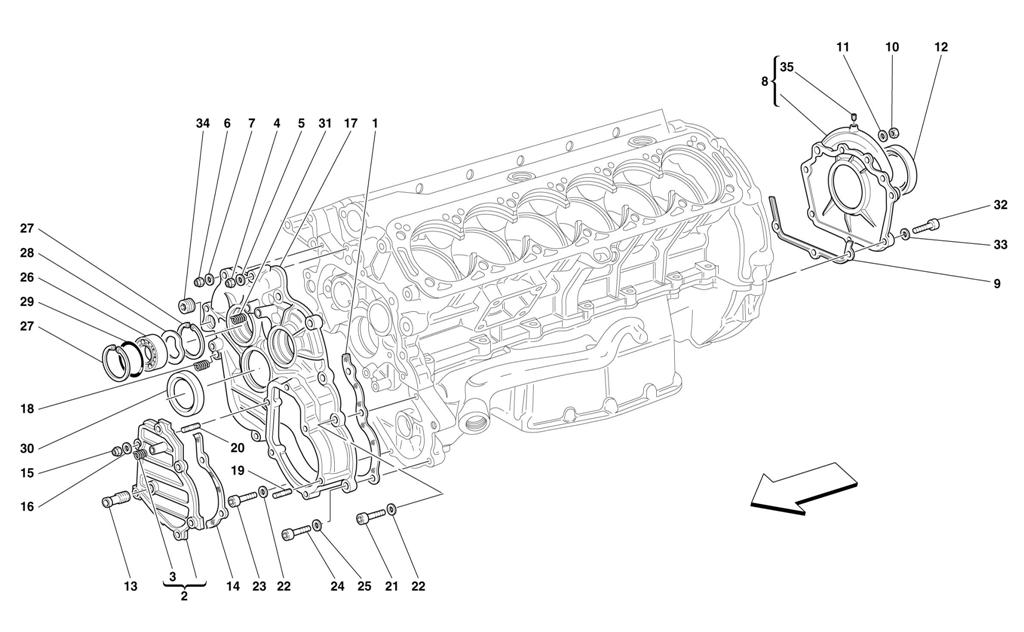

CRANKCASE - COVERS

Go to Split View

CRANKCASE - COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154527 *Qty: 1 GASKET $52.55
Location: 2 Prev | Next Part: 157120 *Qty: 1 SMALL FRONT COVER $202.13
Location: 3 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27
Location: 4 Prev | Next Part: 101139 *Qty: 4 NUT $0.90
Location: 5 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 102741 *Qty: 3 NUT $0.90
Location: 7 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 8 Prev | Next Part: 141343 *Qty: 1 REAR COVER $400.39
Location: 9 Prev | Next Part: 141291 *Qty: 1 GASKET $38.65
Location: 10 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: 12620474 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 200323 *Qty: 1 GASKET $37.70
Location: 13 Prev | Next Part: 154525 *Qty: 1 UNION Call
Location: 14 Prev | Next Part: 157121 *Qty: 1 GASKET $12.96
Location: 15 Prev | Next Part: 102741 *Qty: 6 NUT $0.90
Location: 16 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 17 Prev | Next Part: 159346 *Qty: 1 FRONT COVER -Not as spare part -With the complete cover 178601 Call
Location: 17 Prev | Next Part: 178601 *Qty: 1 COMPLETO FRONT COVER Call
Location: 18 Prev | Next Part: 13525470 *Qty: 1 THREADED INSERT $0.90
Location: 19 Prev | Next Part: 13541024 *Qty: 5 STUD $0.90
Location: 20 Prev | Next Part: 13540824 *Qty: 1 STUD $0.90
Location: 21 Prev | Next Part: 14305424 *Qty: 2 SCREW Superseded
Location: 22 Prev | Next Part: 11197771 *Qty: 4 WASHER Superseded
Location: 23 Prev | Next Part: 14306024 *Qty: 2 SCREW Superseded
Location: 24 Prev | Next Part: 14306524 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 11193874 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 170787 *Qty: 2 BEARING $139.00
Location: 27 Prev | Next Part: 11060576 *Qty: 4 FLEXIBLE RING $1.88
Location: 28 Prev | Next Part: 133377 *Qty: 2 WASHER $1.13
Location: 29 Prev | Next Part: 136140 *Qty: 2 O.R. GASKET $1.57
Location: 30 Prev | Next Part: 134714 *Qty: 1 GASKET $38.00
Location: 31 Prev | Next Part: 13525570 *Qty: 2 THREADED INSERT $3.27
Location: 32 Prev | Next Part: 14305424 *Qty: 3 SCREW Superseded
Location: 33 Prev | Next Part: 11197771 *Qty: 3 WASHER Superseded
Location: 34 Prev | Next Part: 163528 *Qty: 1 THREADED PLUG $5.15
Location: 35 Prev | Next Part: 10275550 *Qty: 1 THREADED PLUG $1.46

* Quantity shown indicates the number of pieces used in the diagram.
