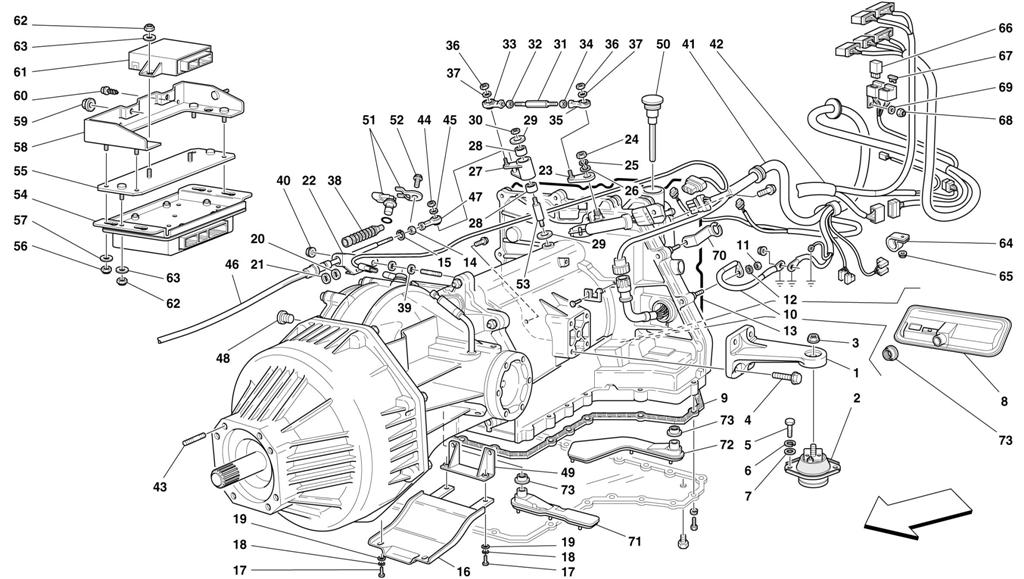

COMPLETE GEARBOX -VALID FOR 456M GTA

Go to Split View

COMPLETE GEARBOX -VALID FOR 456M GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 164018 *Qty: 1 COMPLETE AUTOMATIC GEARBOX Call
Location: 1 Prev | Next Part: 176952 *Qty: 2 GEARBOX FIXING SUPPORT $432.91
Location: 2 Prev | Next Part: 176995 *Qty: 2 FLEXIBLE PAD $271.80
Location: 3 Prev | Next Part: 177018 *Qty: 2 NUT $1.46
Location: 4 Prev | Next Part: 16288534 *Qty: 8 SCREW $4.02
Location: 5 Prev | Next Part: 15970634 *Qty: 4 SCREW $0.90
Location: 6 Prev | Next Part: 127497 *Qty: 4 WASHER $0.90
Location: 7 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 8 Prev | Next Part: 178164 *Qty: 1 REAR FILTER $296.11
Location: 9 Prev | Next Part: 177298 *Qty: 1 LOWER GASKET $141.12
Location: 10 Prev | Next Part: 155918 *Qty: 1 GROUND CABLE $23.60
Location: 11 Prev | Next Part: 16100814 *Qty: 1 NUT $0.90
Location: 12 Prev | Next Part: 10615674 *Qty: 1 WASHER Superseded
Location: 13 Prev | Next Part: 178158 *Qty: 1 REAR GASKET $293.15
Location: 14 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 15 Prev | Next Part: 11088076 *Qty: 1 FLEXIBLE RING $0.90
Location: 16 Prev | Next Part: 65293600 *Qty: 1 AIR CONVEYOR $45.65
Location: 17 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 149951 *Qty: 4 WASHER Superseded
Location: 19 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 20 Prev | Next Part: 171188 *Qty: 2 SPACER $6.47
Location: 21 Prev | Next Part: 171189 *Qty: 1 SPACER $16.37
Location: 22 Prev | Next Part: 171202 *Qty: 1 BRACKET $28.81
Location: 23 Prev | Next Part: 170753 *Qty: 1 SMALL LEVER $55.49
Location: 24 Prev | Next Part: 10788711 *Qty: 1 NUT $1.52
Location: 25 Prev | Next Part: 12646821 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 12604579 *Qty: 1 WASHER $1.51
Location: 27 Prev | Next Part: 170758 *Qty: 1 ROCKER $536.03
Location: 28 Prev | Next Part: 171186 *Qty: 2 ROLLER CASING $11.58
Location: 29 Prev | Next Part: 170757 *Qty: 1 WASHER $4.79
Location: 30 Prev | Next Part: 14058511 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 164011 *Qty: 1 PIN $52.44
Location: 32 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 33 Prev | Next Part: 111530 *Qty: 1 BALL JOINT $35.48
Location: 34 Prev | Next Part: 10790215 *Qty: 1 NUT $12.89
Location: 35 Prev | Next Part: 111529 *Qty: 1 BALL JOINT $87.10
Location: 36 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 37 Prev | Next Part: 10730014 *Qty: 2 WASHER $0.90
Location: 38 Prev | Next Part: 173604 *Qty: 1 RUBBER BOOT $67.27
Location: 39 Prev | Next Part: 125516 *Qty: 2 WASHER $6.18
Location: 40 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 41 Prev | Next Part: 179859 *Qty: 1 AUTOMATIC GEARBOX CONNECTING CABLES -Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 Call
Location: 41 Prev | Next Part: 174491 *Qty: 1 AUTOMATIC GEARBOX CONNECTING CABLES -Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 $3,106.81
Location: 42 Prev | Next Part: 178353 *Qty: 1 REAR CABLES -Valid till car Ass. Nr. 32532 GS and till car Ass. Nr. 32851 GD $1,122.36
Location: 42 Prev | Next Part: 179856 *Qty: 1 REAR CABLES -Valid from car Ass. Nr. 32533 GS and from car Ass. Nr. 32852 GD Call
Location: 43 Prev | Next Part: 13546334 *Qty: 8 STUD $1.25
Location: 44 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 45 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 46 Prev | Next Part: 175123 *Qty: 1 GEARBOX CONTROL CABLE $504.61
Location: 47 Prev | Next Part: 171200 *Qty: 1 BALL JOINT $35.42
Location: 48 Prev | Next Part: 177194 *Qty: 1 PLUG $10.14
Location: 49 Prev | Next Part: 177193 *Qty: 1 BRACKET Call
Location: 50 Prev | Next Part: 177187 *Qty: 1 LEVEL ROD Call
Location: 51 Prev | Next Part: 177195 *Qty: 1 SPEED SENSOR $270.79
Location: 52 Prev | Next Part: 177196 *Qty: 1 SCREW Call
Location: 53 Prev | Next Part: 177197 *Qty: 1 PIN $215.40
Location: 54 Prev | Next Part: 175093 *Qty: 1 ELECTRONIC CONTROL STATION FOR AUTOMATIC GEARBOX -Not for USA and CDN $4,247.96
Location: 54 Prev | Next Part: 175832 *Qty: 1 ELECTRONIC CONTROL STATION FOR AUTOMATIC GEARBOX -Valid for USA and CDN $4,247.96
Location: 55 Prev | Next Part: 175678 *Qty: 1 BRACKET $30.55
Location: 56 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 57 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 58 Prev | Next Part: 175090 *Qty: 1 BRACKET $121.16
Location: 59 Prev | Next Part: 13832101 *Qty: 2 NUT $0.90
Location: 60 Prev | Next Part: 62771900 *Qty: 2 SCREW $0.90
Location: 61 Prev | Next Part: 174937 *Qty: 1 CONTROL STATION FOR GEARBOX SECURITY $789.33
Location: 62 Prev | Next Part: 113647 *Qty: 4 NUT $0.90
Location: 63 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 64 Prev | Next Part: 10441890 *Qty: 1 BRACKET $0.90
Location: 65 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 66 Prev | Next Part: 161590 *Qty: 2 MICRO-RELAY SWITCH 20 A. -Valid till stock exhaustion $25.40
Location: 66 Prev | Next Part: 184102 *Qty: 2 MICRO-RELAY SWITCH 20 A. -Valid after stock exhaustion of 161590 $3.43
Location: 67 Prev | Next Part: 125242 *Qty: 2 FUSE 15 AMP. $0.90
Location: 68 Prev | Next Part: 113647 *Qty: 1 NUT $0.90
Location: 69 Prev | Next Part: 14496324 *Qty: 1 WASHER $4.02
Location: 70 Prev | Next Part: 154742 *Qty: 1 BRACKET $36.28
Location: 71 Prev | Next Part: 178159 *Qty: 1 LOWER FRONT FILTER $81.72
Location: 72 Prev | Next Part: 178162 *Qty: 1 LOWER CENTRAL FILTER $87.85
Location: 73 Prev | Next Part: 178100 *Qty: 3 RUBBER BUSHING $24.24

* Quantity shown indicates the number of pieces used in the diagram.
