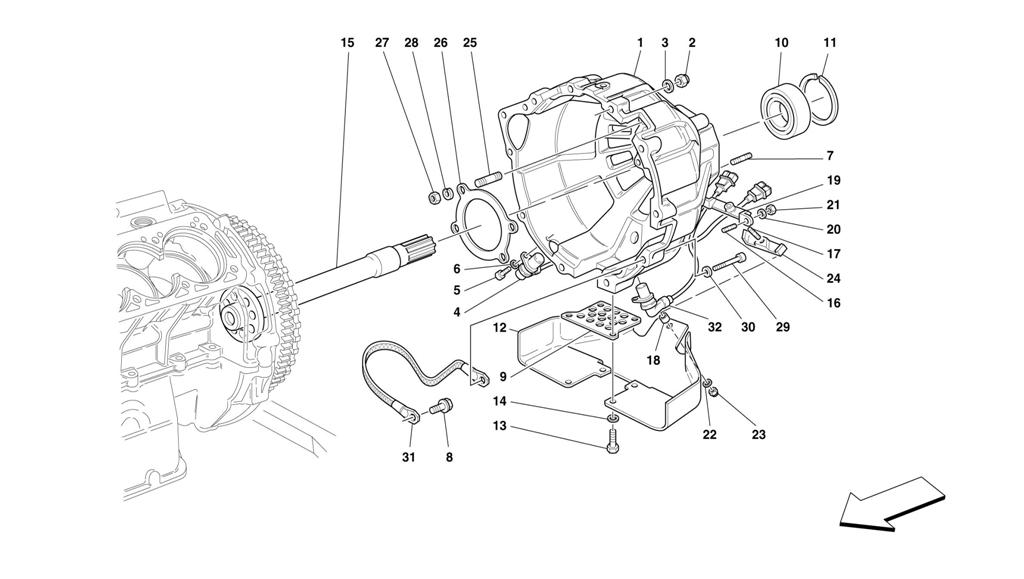

CLUTCH HOUSING -VALID FOR 456M GTA

Go to Split View

CLUTCH HOUSING -VALID FOR 456M GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 178870 *Qty: 1 COMPLETE CLUTCH HOUSING $2,525.28
Location: 1 Prev | Next Part: 174467 *Qty: 1 CLUTCH HOUSING -Not as spare part -With the complete clutch housing Call
Location: 2 Prev | Next Part: 16100814 *Qty: 9 NUT $0.90
Location: 3 Prev | Next Part: 12601374 *Qty: 9 WASHER $0.90
Location: 4 Prev | Next Part: 164082 *Qty: 1 R.H. SIDE ANGOLAR SPEED SENSOR Call
Location: 5 Prev | Next Part: 14305124 *Qty: 2 SCREW $0.90
Location: 6 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 13546334 *Qty: 8 STUD $1.25
Location: 8 Prev | Next Part: 16296421 *Qty: 1 SCREW $41.41
Location: 9 Prev | Next Part: 144441 *Qty: 1 CLUTCH HOUSING COVER $3.64
Location: 10 Prev | Next Part: 174470 *Qty: 1 BEARING $54.03
Location: 11 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.24
Location: 12 Prev | Next Part: 154485 *Qty: 1 SHIELD $216.72
Location: 13 Prev | Next Part: 10977824 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 12601174 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 174216 *Qty: 1 PROPELLER SHAFT WITH FLANGE $1,824.36
Location: 16 Prev | Next Part: 13540824 *Qty: 2 STUD $0.90
Location: 17 Prev | Next Part: 155177 *Qty: 1 STUD $10.56
Location: 18 Prev | Next Part: 155175 *Qty: 1 SPACER $2.09
Location: 19 Prev | Next Part: 154464 *Qty: 1 SUPPORT $41.43
Location: 20 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 21 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 22 Prev | Next Part: 11199274 *Qty: 1 WASHER $0.90
Location: 23 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 24 Prev | Next Part: 146654 *Qty: 1 SUPPORT $90.40
Location: 25 Prev | Next Part: 13543124 *Qty: 4 STUD $0.99
Location: 26 Prev | Next Part: 174643 *Qty: 1 FLANGE $187.71
Location: 27 Prev | Next Part: 133989 *Qty: 4 NUT $0.90
Location: 28 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 14306824 *Qty: 4 SCREW $0.90
Location: 30 Prev | Next Part: 11193874 *Qty: 4 WASHER $0.90
Location: 31 Prev | Next Part: 155918 *Qty: 1 CABLE FOR ENGINE $23.60
Location: 32 Prev | Next Part: 164083 *Qty: 1 L.H. SIDE ANGOLAR SPEED SENSOR $83.52

* Quantity shown indicates the number of pieces used in the diagram.
