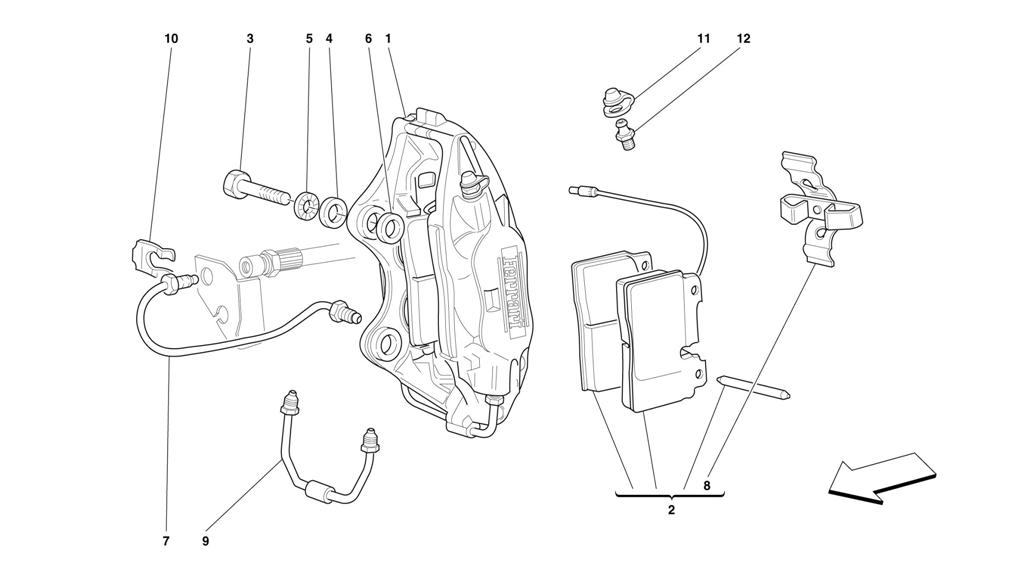

CALIPER FOR FRONT BRAKE

Go to Split View

CALIPER FOR FRONT BRAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 178920 *Qty: 1 R.H. FRONT CALIPER UNIT WITH PADS -Grey $1,340.47
Location: 1 Prev | Next Part: 178921 *Qty: 1 L.H. FRONT CALIPER UNIT WITH PADS -Grey $1,340.47
Location: 1 Prev | Next Part: 178902 *Qty: 1 R.H. FRONT CALIPER UNIT WITH PADS $834.41
Location: 1 Prev | Next Part: 178903 *Qty: 1 L.H. FRONT CALIPER UNIT WITH PADS $834.41
Location: 1 Prev | Next Part: 178908 *Qty: 1 R.H. FRONT CALIPER UNIT WITH PADS -Red Call
Location: 1 Prev | Next Part: 178909 *Qty: 1 L.H. FRONT CALIPER UNIT WITH PADS -Red Call
Location: 1 Prev | Next Part: 178914 *Qty: 1 R.H. FRONT CALIPER UNIT WITH PADS -Gold $1,340.47
Location: 1 Prev | Next Part: 178915 *Qty: 1 L.H. FRONT CALIPER UNIT WITH PADS -Gold Call
Location: 2 Prev | Next Part: 70000924 *Qty: 1 KIT OF FRONT PADS WITH SPRING FOR CALIPERS $566.72
Location: 3 Prev | Next Part: 174214 *Qty: 4 SCREW $5.94
Location: 4 Prev | Next Part: 106616 *Qty: 4 WASHER $1.78
Location: 5 Prev | Next Part: 10615874 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 156262 *Qty: 0 DITTO THICKNESS mm.0.5 $1.61
Location: 6 Prev | Next Part: 156263 *Qty: 0 DITTO THICKNESS mm.0.6 $1.63
Location: 6 Prev | Next Part: 156264 *Qty: 0 DITTO THICKNESS mm.0.7 $1.61
Location: 6 Prev | Next Part: 156265 *Qty: 0 DITTO THICKNESS mm.0.8 Call
Location: 6 Prev | Next Part: 156266 *Qty: 0 DITTO THICKNESS mm.1.0 $1.61
Location: 6 Prev | Next Part: 156260 *Qty: 0 THRUST WASHER BETWEEN CALIPER AND SPINDLE TH. mm.0.2 $1.61
Location: 6 Prev | Next Part: 156261 *Qty: 0 DITTO THICKNESS mm.0.3 $1.61
Location: 7 Prev | Next Part: 163150 *Qty: 1 PIPE TO R.H. FRONT CALIPER Call
Location: 7 Prev | Next Part: 163151 *Qty: 1 PIPE TO L.H. FRONT CALIPER Call
Location: 8 Prev | Next Part: 172348 *Qty: 2 SPRING $25.05
Location: 9 Prev | Next Part: 172868 *Qty: 2 CONNECTION PIPE $60.13
Location: 10 Prev | Next Part: 116374 *Qty: 2 CLIP $0.90
Location: 11 Prev | Next Part: 152955 *Qty: 2 PROTECTION BOOT $7.43
Location: 12 Prev | Next Part: 152954 *Qty: 2 UNION WITH EXHAUST VALVE $8.00

* Quantity shown indicates the number of pieces used in the diagram.
