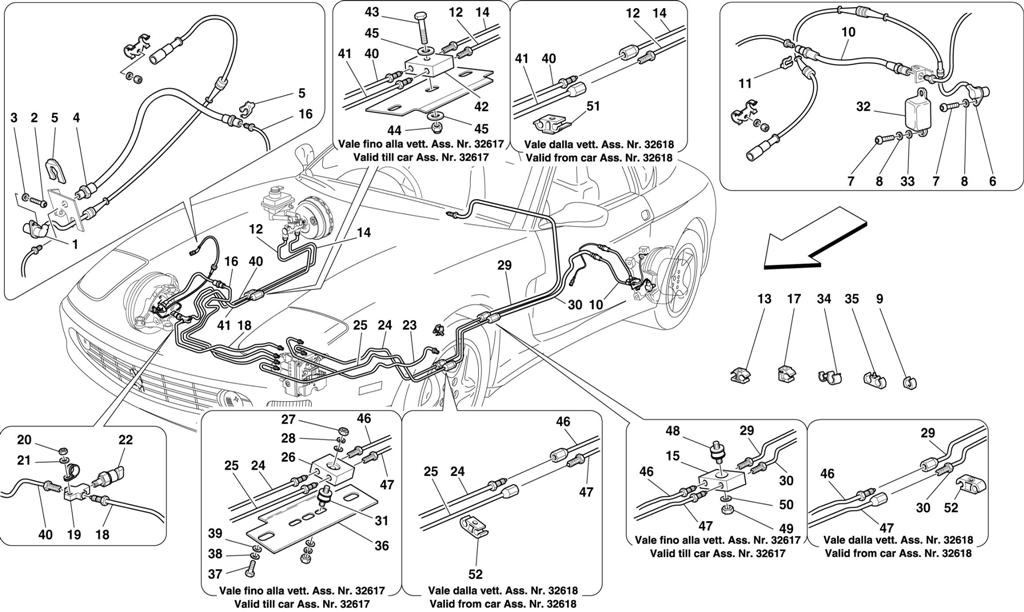

BRAKE SYSTEM -VALID FOR RHD

Go to Split View

BRAKE SYSTEM -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 163145 *Qty: 2 FRONT TOOTHED WHEEL SENSOR $253.86
Location: 2 Prev | Next Part: 60909500 *Qty: 2 SCREW $2.73
Location: 3 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 137313 *Qty: 2 HOSE $130.19
Location: 5 Prev | Next Part: 116374 *Qty: 4 FIXING CLIP $2.96
Location: 6 Prev | Next Part: 163146 *Qty: 2 REAR TOOTHED WHEEL SENSOR $92.45
Location: 7 Prev | Next Part: 60909500 *Qty: 6 SCREW $2.73
Location: 8 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 9 Prev | Next Part: 169477 *Qty: 4 CLIP $2.40
Location: 10 Prev | Next Part: 116373 *Qty: 2 REAR HOSE Superseded
Location: 11 Prev | Next Part: 116374 *Qty: 4 FIXING CLIP $2.96
Location: 12 Prev | Next Part: 179826 *Qty: 1 BRAKE PIPE (FRONT) FROM PUMP TO R.H. JOINT -Valid from car Ass. Nr. 32618 Call
Location: 12 Prev | Next Part: 176876 *Qty: 1 BRAKE PIPE (FRONT) FROM PUMP TO R.H. FRONT UNION -Valid till car Ass. Nr. 32617 $18.73
Location: 13 Prev | Next Part: 143055 *Qty: 3 FIXING CLIP $0.90
Location: 14 Prev | Next Part: 179825 *Qty: 1 BRAKE PIPE (REAR) FROM PUMP TO R.H. JOINT -Valid from car Ass. Nr. 32618 $17.16
Location: 14 Prev | Next Part: 176874 *Qty: 1 BRAKE PIPE (REAR) FROM PUMP TO R.H. FRONT UNION -Valid till car Ass. Nr. 32617 $582.73
Location: 15 Prev | Next Part: 169152 *Qty: 1 UNION -Valid till car Ass. Nr. 32617 $267.64
Location: 16 Prev | Next Part: 176879 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO R.H. FRONT FLEXIBLE PIPE $25.83
Location: 17 Prev | Next Part: 141505 *Qty: 6 FIXING CLIP $1.55
Location: 18 Prev | Next Part: 176878 *Qty: 1 BRAKE PIPE FROM PRESSURE SWITCH TO ABS CENTER UNIT $12.13
Location: 19 Prev | Next Part: 10104661 *Qty: 1 3-WAY UNION $7.44
Location: 20 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 21 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 154309 *Qty: 1 PRESS SWITCH $38.34
Location: 23 Prev | Next Part: 176880 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO L.H. FRONT FLEXIBLE PIPE Call
Location: 24 Prev | Next Part: 179828 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO L.H. JOINT -R.h. side -Valid from car Ass. Nr. 32618 Call
Location: 24 Prev | Next Part: 176881 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO L.H. FRONT UNION -R.h. side -Valid till car Ass. Nr. 32617 Call
Location: 25 Prev | Next Part: 179829 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO L.H. JOINT -L.h. side -Valid from car Ass. Nr. 32618 Call
Location: 25 Prev | Next Part: 178715 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO L.H. UNION -L.h. side -Valid till car Ass. Nr. 32617 $20.71
Location: 26 Prev | Next Part: 169152 *Qty: 1 UNION -Valid till car Ass. Nr. 32617 $267.64
Location: 27 Prev | Next Part: 15896470 *Qty: 1 NUT -Valid till car Ass. Nr. 32617 $0.90
Location: 28 Prev | Next Part: 127493 *Qty: 1 WASHER -Valid till car Ass. Nr. 32617 Superseded
Location: 29 Prev | Next Part: 179832 *Qty: 1 BRAKE PIPE FROM L.H. REAR JOINT TO R.H. REAR FLEXIBLE PIPE -Valid from car Ass. Nr. 32618 $23.57
Location: 29 Prev | Next Part: 179550 *Qty: 1 BRAKE PIPE FROM L.H. REAR UNION TO R.H. REAR FLEXIBLE PIPE -Valid till car Ass. Nr. 32617 $505.62
Location: 30 Prev | Next Part: 179362 *Qty: 1 BRAKE PIPE FROM L.H. REAR UNION TO L.H. REAR FLEXIBLE PIPE $23.11
Location: 31 Prev | Next Part: 148835 *Qty: 1 PAD -Valid till car Ass. Nr. 32617 $14.95
Location: 32 Prev | Next Part: 168148 *Qty: 2 REAR SENSOR PROTECTION $55.24
Location: 33 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 34 Prev | Next Part: 150738 *Qty: 6 CLIP $0.90
Location: 35 Prev | Next Part: 169476 *Qty: 8 CLIP $3.69
Location: 36 Prev | Next Part: 178712 *Qty: 2 BRAKE PIPES FIXING BRACKET -Valid till car Ass. Nr. 32617 $7.93
Location: 37 Prev | Next Part: 10902124 *Qty: 4 SCREW -Valid till car Ass. Nr. 32617 $0.90
Location: 38 Prev | Next Part: 12643778 *Qty: 4 WASHER -Valid till car Ass. Nr. 32617 $0.90
Location: 39 Prev | Next Part: 12601274 *Qty: 4 WASHER -Valid till car Ass. Nr. 32617 $0.90
Location: 40 Prev | Next Part: 178711 *Qty: 1 BRAKE PIPE FROM R.H. UNION TO PRESSURE SWITCH $11.88
Location: 41 Prev | Next Part: 179827 *Qty: 1 BRAKE PIPE FROM R.H. JOINT TO ABS CENTER UNIT -Valid from car Ass. Nr. 32618 Call
Location: 41 Prev | Next Part: 178710 *Qty: 1 BRAKE PIPE FROM R.H. UNION TO ABS CENTER UNIT -Valid till car Ass. Nr. 32617 $24.79
Location: 42 Prev | Next Part: 157719 *Qty: 1 UNION -Valid till car Ass. Nr. 32617 $123.75
Location: 43 Prev | Next Part: 10903024 *Qty: 1 SCREW -Valid till car Ass. Nr. 32617 $0.90
Location: 44 Prev | Next Part: 102741 *Qty: 1 NUT -Valid till car Ass. Nr. 32617 $0.90
Location: 45 Prev | Next Part: 12639724 *Qty: 2 WASHER -Valid till car Ass. Nr. 32617 $0.90
Location: 46 Prev | Next Part: 179831 *Qty: 1 BRAKE PIPE L.H. FRONT JOINT TO UNDERFLOOR L.H. JOINT -R.h. side -Valid from car Ass. Nr. 32618 Call
Location: 46 Prev | Next Part: 176882 *Qty: 1 BRAKE PIPE L.H. FRONT UNION TO UNDERFLOOR L.H. UNION -R.h. side -Valid till car Ass. Nr. 32617 $16.94
Location: 47 Prev | Next Part: 179830 *Qty: 1 BRAKE PIPE L.H. FRONT JOINT TO UNDERFLOOR L.H. JOINT -L.h. side -Valid from car Ass. Nr. 32618 Call
Location: 47 Prev | Next Part: 178716 *Qty: 1 BRAKE PIPE L.H. FRONT UNION TO UNDERFLOOR L.H. UNION -L.h. side -Valid till car Ass. Nr. 32617 Call
Location: 48 Prev | Next Part: 148835 *Qty: 1 PAD -Valid till car Ass. Nr. 32617 $14.95
Location: 49 Prev | Next Part: 15896470 *Qty: 1 NUT -Valid till car Ass. Nr. 32617 $0.90
Location: 50 Prev | Next Part: 127493 *Qty: 1 WASHER -Valid till car Ass. Nr. 32617 Superseded
Location: 51 Prev | Next Part: 143055 *Qty: 1 CLIP -Valid from car Ass. Nr. 32618 $0.90
Location: 52 Prev | Next Part: 169476 *Qty: 3 CLIP -Valid from car Ass. Nr. 32618 $3.69

* Quantity shown indicates the number of pieces used in the diagram.
