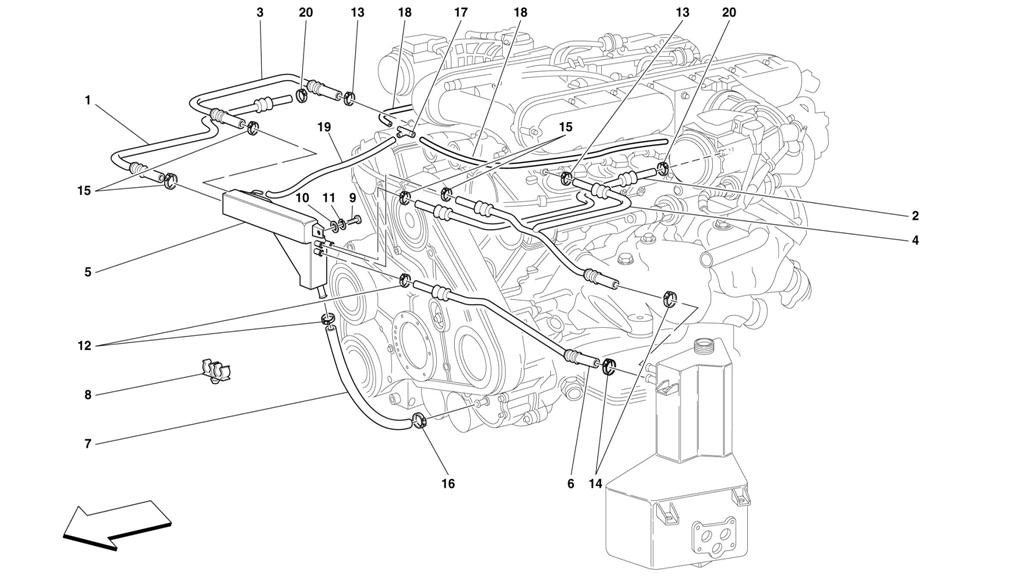

BLOW-BY SYSTEM

Go to Split View

BLOW-BY SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 159832 *Qty: 1 PIPE FROM OIL VENT BODY TO R.H. SLEEVE $105.94
Location: 2 Prev | Next Part: 159833 *Qty: 1 PIPE FROM OIL VENT BODY TO L.H. SLEEVE $100.37
Location: 3 Prev | Next Part: 155264 *Qty: 1 PIPE FROM R.H. HEAD TO VENT BODY $103.21
Location: 4 Prev | Next Part: 155265 *Qty: 1 PIPE FROM L.H. HEAD TO VENT BODY $275.84
Location: 5 Prev | Next Part: 158018 *Qty: 1 ENGINE OIL VENT BODY $403.51
Location: 6 Prev | Next Part: 178593 *Qty: 1 PIPE FROM VENT BODY TO OIL TANK -Valid after stock exhaustion of 155263 $16.92
Location: 7 Prev | Next Part: 156270 *Qty: 1 RUBBER HOSE $19.86
Location: 8 Prev | Next Part: 145543 *Qty: 4 CLIP $0.90
Location: 9 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 11 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 13 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 14 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.47
Location: 15 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 16 Prev | Next Part: 161490 *Qty: 1 SCREW COLLAR $2.47
Location: 17 Prev | Next Part: 121793 *Qty: 1 3-WAY UNION $0.90
Location: 18 Prev | Next Part: 124790 *Qty: 2 RUBBER HOSE $6.57
Location: 19 Prev | Next Part: 115148 *Qty: 1 RUBBER HOSE $5.16
Location: 20 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.47

* Quantity shown indicates the number of pieces used in the diagram.
