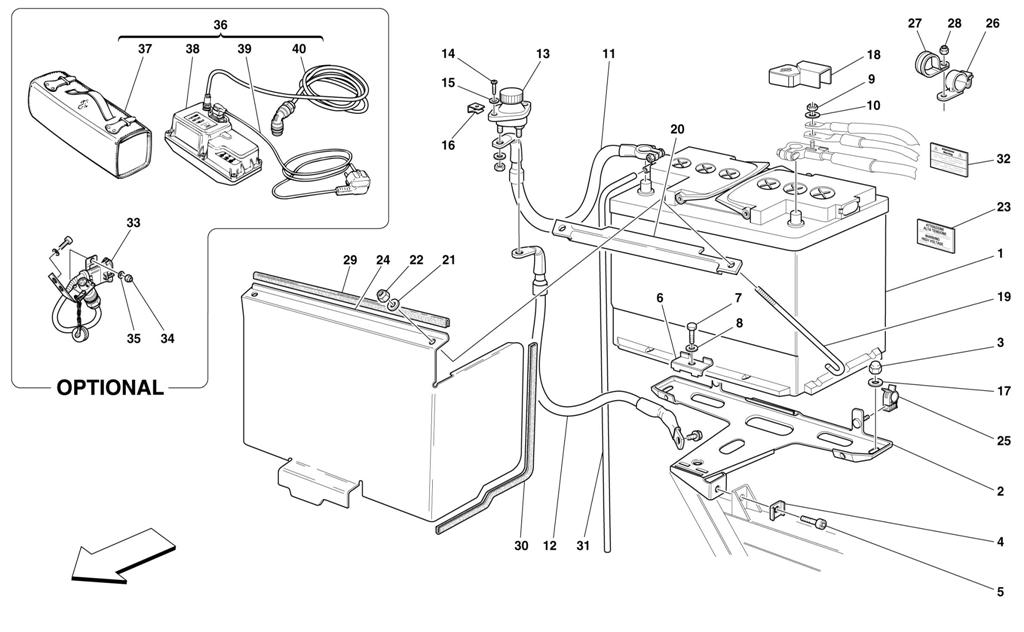

BATTERY

Go to Split View

BATTERY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 188066 *Qty: 1 BATTERY 12V-80AH 450A -Not for GD -Not as spare part now -Replaced by 180055 + 180056- -See pos Call
Location: 1 Prev | Next Part: 175803 *Qty: 1 BATTERY 12V-80AH 450A -Valid for GD $211.99
Location: 2 Prev | Next Part: 178864 *Qty: 1 PLATE FOR BATTERY SUPPORT -Valid for GD Call
Location: 2 Prev | Next Part: 178388 *Qty: 1 PLATE FOR BATTERY SUPPORT -Not for GD $143.19
Location: 3 Prev | Next Part: 150595 *Qty: 2 CAP NUT $1.20
Location: 4 Prev | Next Part: 155599 *Qty: 1 BRACKET $2.95
Location: 5 Prev | Next Part: 14306224 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 154324 *Qty: 1 MOBILE BRACKET $61.57
Location: 7 Prev | Next Part: 16043724 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 14499421 *Qty: 1 WASHER $0.90
Location: 9 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 10 Prev | Next Part: 12638524 *Qty: 1 WASHER $0.90
Location: 11 Prev | Next Part: 153117 *Qty: 1 COPPER PLAIT FROM BATTERY TO SWITCH $146.99
Location: 12 Prev | Next Part: 153128 *Qty: 1 COPPER PLAIT FROM SWITCH TO EARTH $179.75
Location: 13 Prev | Next Part: 139607 *Qty: 1 CUT-OUT SWITCH Call
Location: 14 Prev | Next Part: 15688275 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 12637878 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 61067800 *Qty: 2 BRACKET $0.90
Location: 17 Prev | Next Part: 12646724 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 177449 *Qty: 1 CABLES PROTECTION Call
Location: 18 Prev | Next Part: 144727 *Qty: 1 PROTECTION BOOT -Not as spare part now -Replaced by 177449 $33.07
Location: 19 Prev | Next Part: 189130 *Qty: 2 TIE ROD $71.18
Location: 20 Prev | Next Part: 171903 *Qty: 1 ANGLE PIECE Call
Location: 21 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 22 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 23 Prev | Next Part: 113404 *Qty: 1 WARNING HIGH VOLTAGE PLATE $0.90
Location: 24 Prev | Next Part: 178884 *Qty: 1 BATTERY HEAT SHIELD -Not for GD $65.18
Location: 24 Prev | Next Part: 178885 *Qty: 1 BATTERY HEAT SHIELD -Valid for GD $64.12
Location: 25 Prev | Next Part: 175710 *Qty: 2 CLIP $0.90
Location: 26 Prev | Next Part: 160888 *Qty: 1 CLIP $4.02
Location: 27 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 28 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 29 Prev | Next Part: 179906 *Qty: 1 GASKET $7.92
Location: 30 Prev | Next Part: 179907 *Qty: 1 GASKET Call
Location: 31 Prev | Next Part: 180056 *Qty: 1 BATTERY ACID EXHAUST TUBE -Not for GD Call
Location: 32 Prev | Next Part: 184205 *Qty: 2 BATTERY EXCLUSION PLATE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Call
Location: 33 Prev | Next Part: 178566 *Qty: 1 BATTERY CHARGER ADDITIONAL CABLE -Optional $667.05
Location: 34 Prev | Next Part: 102741 *Qty: 1 NUT -Optional $0.90
Location: 35 Prev | Next Part: 10519424 *Qty: 1 WASHER -Optional Call
Location: 36 Prev | Next Part: 178682 *Qty: 1 BATTERY CHARGER KIT -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $2,054.72
Location: 36 Prev | Next Part: 178683 *Qty: 1 BATTERY CHARGER KIT -Valid for USA, CDN and J -Optional Superseded
Location: 36 Prev | Next Part: 178684 *Qty: 1 BATTERY CHARGER KIT -Valid for AUS -Optional $985.49
Location: 36 Prev | Next Part: 178685 *Qty: 1 BATTERY CHARGER KIT -Valid for GB and Hong Kong -Optional $1,162.18
Location: 37 Prev | Next Part: 65699200 *Qty: 1 BATTERY BAG CASE -Optional $509.36
Location: 38 Prev | Next Part: 177791 *Qty: 1 BATTERY CHARGER -230V -Not for USA, CDN and J -Optional $1,056.65
Location: 38 Prev | Next Part: 177792 *Qty: 1 BATTERY CHARGER -110V -Not for USA, CDN and J -Optional $2,319.72
Location: 39 Prev | Next Part: 177794 *Qty: 1 POWER SUPPLY CABLE -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $31.62
Location: 39 Prev | Next Part: 177795 *Qty: 1 POWER SUPPLY CABLE -Valid for USA, CDN and J -Optional $23.71
Location: 39 Prev | Next Part: 177796 *Qty: 1 POWER SUPPLY CABLE -Valid for AUS -Optional Call
Location: 39 Prev | Next Part: 178294 *Qty: 1 POWER SUPPLY CABLE -Valid for GB and Hong Kong -Optional Call
Location: 40 Prev | Next Part: 178676 *Qty: 1 CABLE WITH CONNECTOR -Optional $368.38

* Quantity shown indicates the number of pieces used in the diagram.
