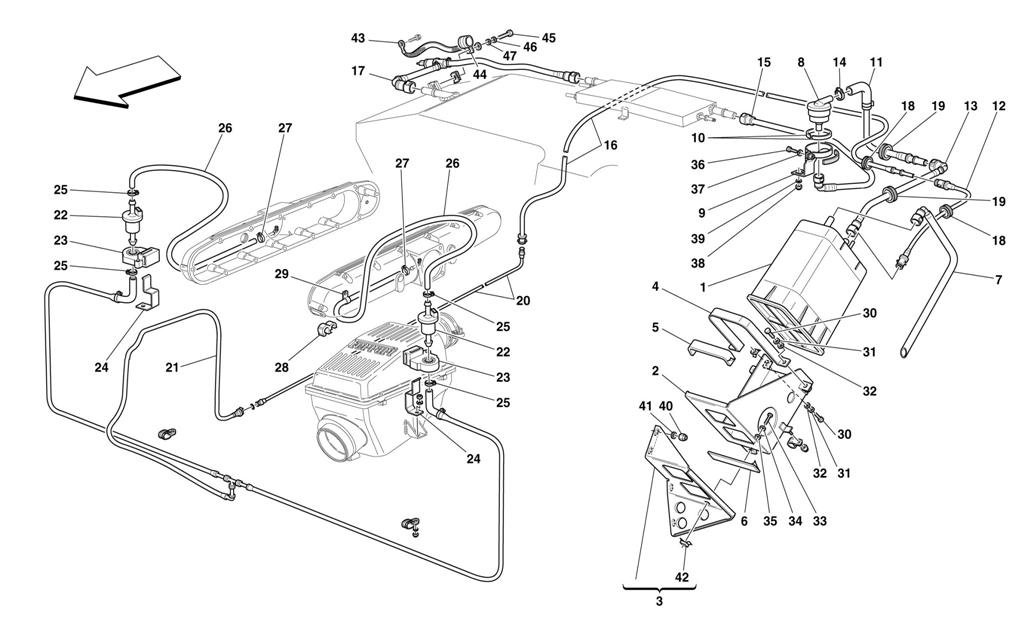

ANTIEVAPORATION DEVICE -VALID FOR USA M.Y. 2000 AND CDN M.Y. 2000-

Go to Split View

ANTIEVAPORATION DEVICE -VALID FOR USA M.Y. 2000 AND CDN M.Y. 2000-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 178536 *Qty: 1 FUEL VAPOR FILTER Call
Location: 2 Prev | Next Part: 180783 *Qty: 1 VAPOR FILTER CONTAINER Call
Location: 3 Prev | Next Part: 180777 *Qty: 1 CONTAINER SUPPORT Call
Location: 4 Prev | Next Part: 180781 *Qty: 1 FIXING BRACKET Call
Location: 5 Prev | Next Part: 180789 *Qty: 1 RUBBER THICKNESS $21.36
Location: 6 Prev | Next Part: 180790 *Qty: 3 RUBBER THICKNESS Call
Location: 7 Prev | Next Part: 181186 *Qty: 1 VAPOR FILTER EXHAUST TUBE Call
Location: 8 Prev | Next Part: 180573 *Qty: 1 ANTI FLOWING BACK VALVE $128.32
Location: 9 Prev | Next Part: 180866 *Qty: 1 FIXING BRACKET Call
Location: 10 Prev | Next Part: 180867 *Qty: 1 RUBBER THICKNESS Call
Location: 11 Prev | Next Part: 100259 *Qty: 1 PIPE FROM VALVE TO VAPOR FILTER CONNECTION $2.92
Location: 12 Prev | Next Part: 181185 *Qty: 1 PIPE FROM VAPOR FILTER TO UNDERFLOOR PIPE CONNECTION $128.57
Location: 13 Prev | Next Part: 181178 *Qty: 1 PIPE FROM CONNECTION TO VAPOR FILTER $145.49
Location: 14 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.97
Location: 15 Prev | Next Part: 181179 *Qty: 1 PIPE FROM DISAERATOR TO VALVE Call
Location: 16 Prev | Next Part: 181177 *Qty: 1 PIPE FROM CONNECTION TO UNDERFLOOR PIPE $139.83
Location: 17 Prev | Next Part: 182061 *Qty: 1 PIPE WITH UNION Call
Location: 18 Prev | Next Part: 10396680 *Qty: 2 CABLE GROMMET $0.90
Location: 19 Prev | Next Part: 10397980 *Qty: 2 CABLE GROMMET $1.14
Location: 20 Prev | Next Part: 181176 *Qty: 1 UNDERFLOOR TUBE -Not as spare part now -Replaced by 183821 Call
Location: 20 Prev | Next Part: 183821 *Qty: 1 UNDERFLOOR TUBE Call
Location: 21 Prev | Next Part: 181174 *Qty: 1 PIPE FROM UNDERFLOOR TUBE TO VALVE $279.63
Location: 22 Prev | Next Part: 162412 *Qty: 2 VALVE $45.16
Location: 23 Prev | Next Part: 174623 *Qty: 2 PAD $12.72
Location: 24 Prev | Next Part: 178792 *Qty: 2 BRACKET $5.76
Location: 25 Prev | Next Part: 13431870 *Qty: 4 COLLAR FOR SLEEVE $0.90
Location: 26 Prev | Next Part: 179768 *Qty: 2 PIPE CONNECTING AIR CHAMBERS ANTIEVAPORATION VALVE Call
Location: 27 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR Superseded
Location: 28 Prev | Next Part: 180148 *Qty: 2 FLEXIBLE CLIP Call
Location: 29 Prev | Next Part: 10418601 *Qty: 2 BRACKET $1.24
Location: 30 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 31 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 33 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 36 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 37 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 38 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 39 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 40 Prev | Next Part: 102948 *Qty: 4 NUT $0.90
Location: 41 Prev | Next Part: 14499324 *Qty: 4 WASHER Superseded
Location: 42 Prev | Next Part: 60758600 *Qty: 1 NUT WITH CAGE $0.90
Location: 43 Prev | Next Part: 184206 *Qty: 1 GROUND CABLE $6.19
Location: 44 Prev | Next Part: 10442190 *Qty: 1 BRACKET WITH SHEATH $0.94
Location: 45 Prev | Next Part: 10977824 *Qty: 1 SCREW $0.90
Location: 46 Prev | Next Part: 13577701 *Qty: 1 WASHER $0.90
Location: 47 Prev | Next Part: 10571470 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
