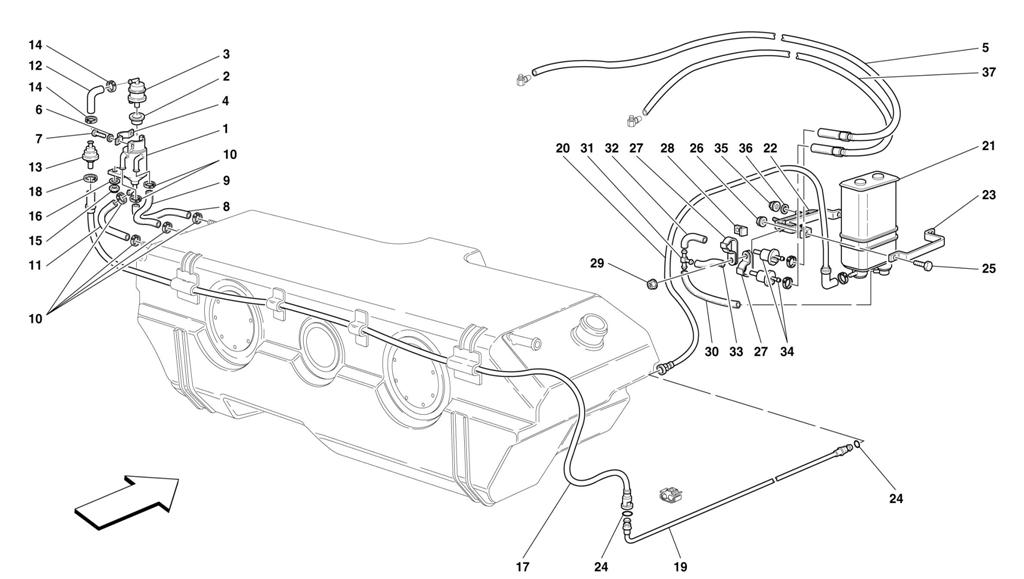

ANTIEVAPORATION DEVICE -NOT FOR USA, CDN AND AUS

Go to Split View

ANTIEVAPORATION DEVICE -NOT FOR USA, CDN AND AUS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155407 *Qty: 1 DISAREATOR $307.71
Location: 2 Prev | Next Part: 155313 *Qty: 1 SEAL RING $53.48
Location: 3 Prev | Next Part: 124193 *Qty: 1 ANTI FLOWING BACK VALVE Call
Location: 4 Prev | Next Part: 155405 *Qty: 1 BRACKET $30.14
Location: 5 Prev | Next Part: 155779 *Qty: 1 PIPE FROM VALVE TO L.H. MANIFOLD $20.25
Location: 6 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.02
Location: 7 Prev | Next Part: 13273911 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 116764 *Qty: 1 FRONT PIPE FROM FUEL TANK TO DISAERATOR $4.77
Location: 9 Prev | Next Part: 116767 *Qty: 1 CENTRAL PIPE FROM FUEL TANK TO DISAERATOR $5.40
Location: 10 Prev | Next Part: 13000190 *Qty: 6 SCREW COLLAR $0.90
Location: 11 Prev | Next Part: 114880 *Qty: 1 REAR PIPE FROM FUEL TANK TO DISAERATOR $7.65
Location: 12 Prev | Next Part: 148464 *Qty: 1 SLEEVE $8.20
Location: 13 Prev | Next Part: 170442 *Qty: 1 TANK VENTILATION VALVE Call
Location: 14 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 15 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 16 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 17 Prev | Next Part: 155762 *Qty: 1 PIPE FROM VALVE TO INTERMEDIATE PIPE $135.85
Location: 18 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR $0.90
Location: 19 Prev | Next Part: 155763 *Qty: 1 INTERMEDIATE PIPE $77.40
Location: 20 Prev | Next Part: 155765 *Qty: 1 PIPE FROM INTERMEDIATE PIPE TO VAPOR FILTER $93.10
Location: 21 Prev | Next Part: 173791 *Qty: 1 CHARCOAL CARBON CANISTER $438.22
Location: 22 Prev | Next Part: 156452 *Qty: 1 FRAME FASTENING FILTER BRACKET $33.90
Location: 23 Prev | Next Part: 154385 *Qty: 1 COMPLETE BRACKET $100.45
Location: 24 Prev | Next Part: 133956 *Qty: 4 O.R. GASKET $1.18
Location: 25 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: 164437 *Qty: 2 FIXING BRACKET $3.74
Location: 28 Prev | Next Part: 137716 *Qty: 1 PLATE $25.00
Location: 29 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 114874 *Qty: 1 PIPE FROM FILTER TO UNION $6.88
Location: 31 Prev | Next Part: 105990 *Qty: 1 3-WAY UNION $1.24
Location: 32 Prev | Next Part: 164439 *Qty: 1 PIPE FROM UNION TO UPPER ANTIEVAPORATION VALVE $14.95
Location: 33 Prev | Next Part: 164440 *Qty: 1 PIPE FROM UNION TO LOWER ANTIEVAPORATION VALVE $8.13
Location: 34 Prev | Next Part: 162412 *Qty: 2 ANTI-EVAPORATION VALVE $45.16
Location: 35 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 37 Prev | Next Part: 155778 *Qty: 1 PIPE FROM VALVE TO R.H. MANIFOLD $92.39

* Quantity shown indicates the number of pieces used in the diagram.
