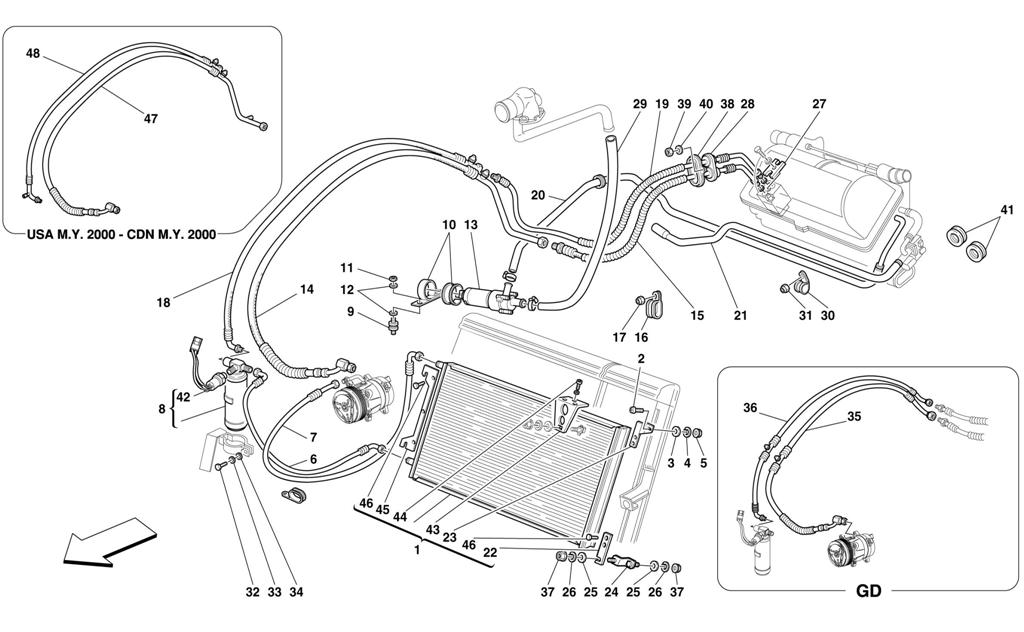

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165563 *Qty: 1 AC CONDENSER Call
Location: 2 Prev | Next Part: 14778814 *Qty: 1 SCREW $2.23
Location: 3 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 4 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 64827500 *Qty: 1 PIPE FROM CONDENSER TO DEHYDRATOR FILTER $352.41
Location: 7 Prev | Next Part: 64827400 *Qty: 1 PIPE FROM COMPRESSOR TO CONDENSER $296.18
Location: 8 Prev | Next Part: 64799500 *Qty: 1 DEHYDRATOR FILTER WITH PRESSURE SWITCH $408.31
Location: 9 Prev | Next Part: 142202 *Qty: 2 ANTI-VIBRATION SUPPORT $10.09
Location: 10 Prev | Next Part: 63994900 *Qty: 1 COMPLETE BRACKET $12.85
Location: 11 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 13 Prev | Next Part: 65460300 *Qty: 1 COMPLETE WATER PUMP $270.53
Location: 14 Prev | Next Part: 65419600 *Qty: 1 PIPE FROM HOSE TO COMPRESSOR -Not for GD, USA M.Y. 2000 and CDN M.Y. 2000 Call
Location: 15 Prev | Next Part: 64791200 *Qty: 1 HOSE FROM EVAPORATOR TO PIPE $296.28
Location: 16 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH $2.16
Location: 17 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 18 Prev | Next Part: 64827600 *Qty: 1 PIPE FROM DEHYDRATOR FILTER TO HOSE -Not for GD, USA M.Y. 2000 and CDN M.Y. 2000 $130.68
Location: 19 Prev | Next Part: 64791300 *Qty: 1 HOSE FROM PIPE TO EVAPORETOR $273.91
Location: 20 Prev | Next Part: 65674900 *Qty: 1 DELIVERY TUBE FROMP WATER PUMP -Not for GD $293.72
Location: 20 Prev | Next Part: 65846100 *Qty: 1 DELIVERY TUBE FROMP WATER PUMP -Valid for GD $232.42
Location: 21 Prev | Next Part: 65618300 *Qty: 1 RETURN TUBE FROM VALVE TO NOURICE -Valid for GD $184.35
Location: 21 Prev | Next Part: 65674500 *Qty: 1 RETURN TUBE FROM VALVE TO NOURICE -Not for GD Call
Location: 22 Prev | Next Part: 168068 *Qty: 1 BRACKET $16.23
Location: 23 Prev | Next Part: 165561 *Qty: 1 BRACKET $16.67
Location: 24 Prev | Next Part: 156989 *Qty: 1 SMALL PLATE $8.76
Location: 25 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 64281500 *Qty: 1 FLANGE $5.56
Location: 28 Prev | Next Part: 63961800 *Qty: 1 RUBBER GASKET $11.16
Location: 29 Prev | Next Part: 65419500 *Qty: 1 DELIVERY TUBE FROM ENGINE TO PUMP $215.71
Location: 30 Prev | Next Part: 61712600 *Qty: 1 CLAMP $2.09
Location: 31 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 32 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 33 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 34 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 35 Prev | Next Part: 65618200 *Qty: 1 PIPE FROM HOSE TO COMPRESSOR -Valid for GD $244.77
Location: 36 Prev | Next Part: 65655400 *Qty: 1 PIPE FROM DEHYDRATOR FILTER TO HOSE -Valid for GD $202.08
Location: 37 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 63961900 *Qty: 1 FRAME FOR PIPE BUSHING $11.20
Location: 39 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 40 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 41 Prev | Next Part: 10459087 *Qty: 2 CABLE GROMMET Call
Location: 42 Prev | Next Part: 66374400 *Qty: 1 PRESSOSTAT $241.11
Location: 43 Prev | Next Part: 165562 *Qty: 1 BRACKET $74.92
Location: 44 Prev | Next Part: 165136 *Qty: 3 SCREW $0.90
Location: 45 Prev | Next Part: 165560 *Qty: 1 BRACKET $44.00
Location: 46 Prev | Next Part: 165137 *Qty: 7 SCREW $1.48
Location: 47 Prev | Next Part: 65990400 *Qty: 1 PIPE FROM HOSE TO COMPRESSOR -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $298.43
Location: 48 Prev | Next Part: 65990500 *Qty: 1 PIPE FROM DEHYDRATOR FILTER TO HOSE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $181.66

* Quantity shown indicates the number of pieces used in the diagram.
