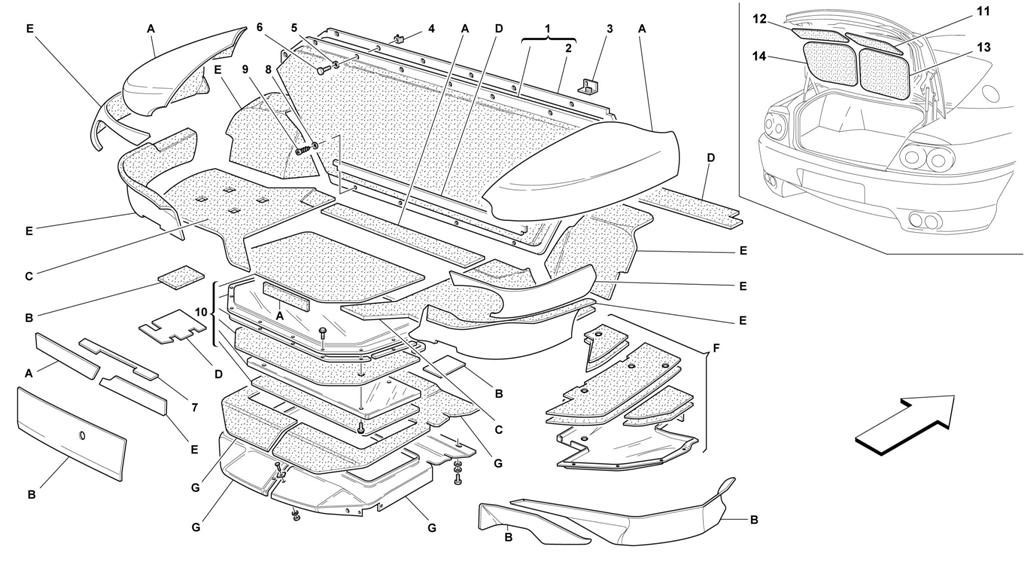

TRUNK HOOD INSULATIONS -VALID FOR 456 GTA

Go to Split View

TRUNK HOOD INSULATIONS -VALID FOR 456 GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 64055000 *Qty: 0 SHIELD/SPARE WH $146.58
Location: - Prev | Next Part: 64090300 *Qty: 0 SERIE RIPARI CALORE COLLEGATORE POST $331.48
Location: - Prev | Next Part: 64721500 *Qty: 0 SERIE RIPARI CALORE ETHOFOAM SP 5 Call
Location: - Prev | Next Part: 64721600 *Qty: 0 SERIE RIPARI CALORE ETHOFOAM SP 5 $699.87
Location: - Prev | Next Part: 64721700 *Qty: 0 SERIE RIPARI CALORE EST. SOTTOBAULE $2,378.05
Location: - Prev | Next Part: 64915500 *Qty: 0 SERIE RIPARI CALORE COLLEG. POST $342.44
Location: - Prev | Next Part: 63496200 *Qty: 0 PADDING $525.12
Location: - Prev | Next Part: 63899600 *Qty: 0 SHIELD Call
Location: - Prev | Next Part: 63899700 *Qty: 0 SHIELD Call
Location: 1 Prev | Next Part: 63854900 *Qty: 1 SHIELD FOR LUGGAGE COMPARTMENT AND FUEL $528.17
Location: 2 Prev | Next Part: 63761800 *Qty: 1 GASKET Call
Location: 3 Prev | Next Part: 63859600 *Qty: 3 FIXING BRACKET $3.32
Location: 4 Prev | Next Part: 60758600 *Qty: 17 NUT WITH CAGE $0.90
Location: 5 Prev | Next Part: 12647701 *Qty: 17 WASHER $0.90
Location: 6 Prev | Next Part: 95880322 *Qty: 17 SCREW Call
Location: 7 Prev | Next Part: 64887200 *Qty: 1 HEAT SHIELD $9.56
Location: 8 Prev | Next Part: 12642878 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 15687275 *Qty: 3 SCREW $0.90
Location: 10 Prev | Next Part: 64915300 *Qty: 1 COVER FOR LUGGAGE COMPARTMENT -Valid till Ass. Nr. 25257 $1,483.00
Location: 10 Prev | Next Part: 65376600 *Qty: 1 COVER FOR LUGGAGE COMPARTMENT -Valid from Ass. Nr. 25258 Call
Location: 11 Prev | Next Part: 63494800 *Qty: 1 R.H. UPPER HEAT SHIELD $129.64
Location: 12 Prev | Next Part: 63494900 *Qty: 1 L.H. UPPER HEAT SHIELD $129.64
Location: 13 Prev | Next Part: 63495000 *Qty: 1 R.H. LOWER HEAT SHIELD $168.04
Location: 14 Prev | Next Part: 63495100 *Qty: 1 L.H. LOWER HEAT SHIELD $168.04

* Quantity shown indicates the number of pieces used in the diagram.
