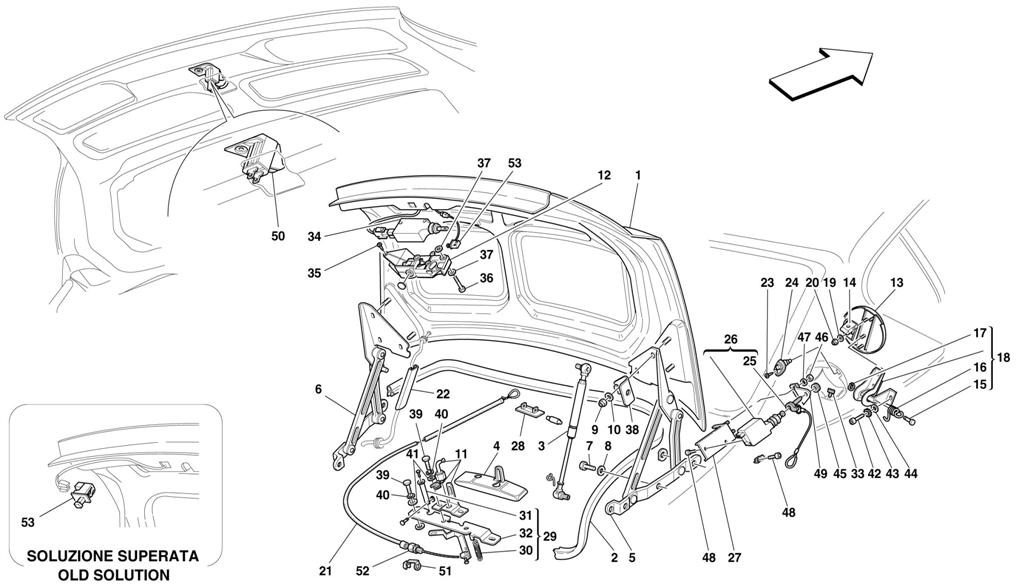

TRUNK HOOD BONNET AND PETROL COVER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63856700 *Qty: 1 TRUNK HOOD BONNET -Valid till Ass. Nr. 24668 Call
Location: 1 Prev | Next Part: 65377100 *Qty: 1 TRUNK HOOD BONNET -Valid from Ass. Nr. 24669 Call
Location: 2 Prev | Next Part: 65384900 *Qty: 1 GASKET FOR TRUNK COMPARTMENT Call
Location: 3 Prev | Next Part: 63701800 *Qty: 2 GAS SPRING $61.20
Location: 4 Prev | Next Part: 63861700 *Qty: 1 STRIKER PLATE OVERLAP $72.84
Location: 5 Prev | Next Part: 63143000 *Qty: 1 R.H. TRUNK HOOD BONNET HINGE "Aluminium" -Valid till Serial Nr. 105986 $584.06
Location: 5 Prev | Next Part: 65222700 *Qty: 1 R.H. TRUNK HOOD BONNET HINGE "Iron" -Valid from Serial Nr. 105987 $391.64
Location: 6 Prev | Next Part: 63143100 *Qty: 1 L.H. TRUNK HOOD BONNET HINGE "Aluminium" -Valid till Serial Nr. 105986 $584.06
Location: 6 Prev | Next Part: 65222800 *Qty: 1 L.H. TRUNK HOOD BONNET HINGE "Iron" -Valid from Serial Nr. 105987 $391.64
Location: 7 Prev | Next Part: 13824324 *Qty: 6 SCREW $0.90
Location: 8 Prev | Next Part: 10519424 *Qty: 6 WASHER Call
Location: 9 Prev | Next Part: 14039614 *Qty: 6 NUT $0.90
Location: 10 Prev | Next Part: 12643724 *Qty: 8 WASHER $0.90
Location: 11 Prev | Next Part: 63143600 *Qty: 1 TRUNK HOOD BONNET CLOSING STRIKER $68.33
Location: 12 Prev | Next Part: 63143300 *Qty: 1 TRUNK HOOD BONNET LOCK -Valid from Ass. Nr. 24669 $233.81
Location: 13 Prev | Next Part: 63707300 *Qty: 1 COMPLETE FUEL INLET LID $140.44
Location: 14 Prev | Next Part: 63771200 *Qty: 1 STRIKER PLATE FOR GAS UNION $12.51
Location: 15 Prev | Next Part: 63196400 *Qty: 1 PIN Call
Location: 16 Prev | Next Part: 63196500 *Qty: 1 SPRING $101.99
Location: 17 Prev | Next Part: 11087676 *Qty: 1 SEEGER RING $0.90
Location: 18 Prev | Next Part: 63746800 *Qty: 1 HINGE FOR GAS UNION DOOR $60.70
Location: 19 Prev | Next Part: 12638111 *Qty: 4 WASHER Call
Location: 20 Prev | Next Part: 14084111 *Qty: 4 NUT $0.90
Location: 21 Prev | Next Part: 63879000 *Qty: 1 EMERGENCY CABLE $36.58
Location: 22 Prev | Next Part: 63887300 *Qty: 1 COVER FOR CABLES $0.90
Location: 23 Prev | Next Part: 15915977 *Qty: 1 SCREW $0.90
Location: 24 Prev | Next Part: 153069 *Qty: 1 INDICATOR LAMP FOR FUEL DOOR $7.16
Location: 25 Prev | Next Part: 63716300 *Qty: 1 COMPLETE PIN $10.21
Location: 26 Prev | Next Part: 65841600 *Qty: 1 FUEL DOOR ACTUATOR -Substitutes 63714500 $354.07
Location: 26 Prev | Next Part: 63713800 *Qty: 1 FUEL DOOR ACTUATOR -Not as spare part now -Replaced by 63713800 Superseded
Location: 27 Prev | Next Part: 63120900 *Qty: 1 BRACKET FOR ACTUATOR FIXING $3.71
Location: 28 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $16.31
Location: 29 Prev | Next Part: 66466000 *Qty: 1 COMPLETE TRUNK LOCK DEVICE $36.10
Location: 30 Prev | Next Part: 63709500 *Qty: 1 SPRING $3.03
Location: 31 Prev | Next Part: 63709300 *Qty: 1 ROLL $16.47
Location: 32 Prev | Next Part: 63709100 *Qty: 1 PLATE $12.53
Location: 33 Prev | Next Part: 63879900 *Qty: 2 RUBBER PAD $12.00
Location: 34 Prev | Next Part: 63191100 *Qty: 1 LID ACTUATOR $336.31
Location: 35 Prev | Next Part: 15903870 *Qty: 2 SCREW $0.90
Location: 36 Prev | Next Part: 10903224 *Qty: 3 SCREW Superseded
Location: 37 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 38 Prev | Next Part: 63144400 *Qty: 1 R.H. BRACKET $25.14
Location: 38 Prev | Next Part: 63144500 *Qty: 1 L.H. BRACKET $25.14
Location: 39 Prev | Next Part: 10902111 *Qty: 4 SCREW Superseded
Location: 40 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 41 Prev | Next Part: 12643724 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 13273911 *Qty: 2 SCREW $0.90
Location: 43 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 12637804 *Qty: 2 WASHER Call
Location: 45 Prev | Next Part: 10396280 *Qty: 1 RUBBER FOR PIN $0.90
Location: 46 Prev | Next Part: 14054042 *Qty: 2 NUT $0.90
Location: 47 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 48 Prev | Next Part: 13273014 *Qty: 2 SCREW $0.90
Location: 49 Prev | Next Part: 64061200 *Qty: 1 BRACKET $2.80
Location: 50 Prev | Next Part: 167175 *Qty: 1 SWITCH Call
Location: 51 Prev | Next Part: 62955500 *Qty: 2 CLIP Call
Location: 52 Prev | Next Part: 62984500 *Qty: 2 ADJUSTMENT SCREW $7.91
Location: 53 Prev | Next Part: 173977 *Qty: 1 MICRO-SWITCH -Valid from Ass. Nr. 24669 $61.96
Location: 53 Prev | Next Part: 61539800 *Qty: 1 MAGNETIC SWITCH -Valid till Ass. Nr. 24668 Call

* Quantity shown indicates the number of pieces used in the diagram.
