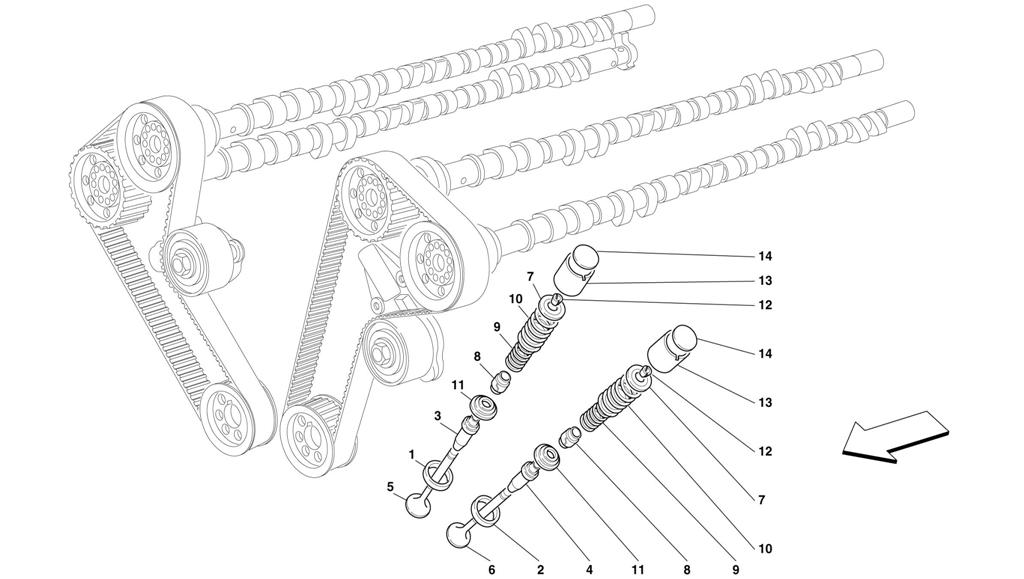

TIMING - VALVES

Go to Split View

TIMING - VALVES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 140699 *Qty: 24 INTAKE VALVE SEAT $51.44
Location: 2 Prev | Next Part: 140702 *Qty: 24 EXHAUST VALVE SEAT $51.44
Location: 3 Prev | Next Part: 188630 *Qty: 24 SUCTION VALVE GUIDE $60.19
Location: 3 Prev | Next Part: 183781 *Qty: 24 INTAKE VALVE GUIDE OVERSIZED $64.13
Location: 4 Prev | Next Part: 178590 *Qty: 24 EXHAUST VALVE GUIDE Call
Location: 4 Prev | Next Part: 141422 *Qty: 24 EXHAUST VALVE GUIDE OVERSIZE $16.84
Location: 5 Prev | Next Part: 140609 *Qty: 24 INTAKE VALVE (EATON) $143.28
Location: 5 Prev | Next Part: 155726 *Qty: 24 INTAKE VALVE (INTERVALVES) $48.49
Location: 6 Prev | Next Part: 155727 *Qty: 24 EXHAUST VALVE (INTERVALVES) $155.49
Location: 6 Prev | Next Part: 140597 *Qty: 24 EXHAUST VALVE (EATON) $169.05
Location: 7 Prev | Next Part: 117567 *Qty: 48 CUP -Valid from engine Nr. 40863 $47.47
Location: 7 Prev | Next Part: 155085 *Qty: 48 CUP -Valid till engine Nr. 40862 $9.90
Location: 8 Prev | Next Part: 141565 *Qty: 48 OIL RING FOR VALVE GUIDE $7.53
Location: 9 Prev | Next Part: 156648 *Qty: 48 INNER SPRING -Valid from Ass. Nr. 40863 $67.82
Location: 9 Prev | Next Part: 148242 *Qty: 48 INNER SPRING -Valid till Ass. Nr. 40862 $27.13
Location: 10 Prev | Next Part: 148241 *Qty: 48 OUTER SPRING -Valid till Ass. Nr. 40862 $6.25
Location: 10 Prev | Next Part: 160049 *Qty: 48 OUTER SPRING -Valid from Ass. Nr. 40863 $67.82
Location: 11 Prev | Next Part: 140604 *Qty: 48 CUP $40.62
Location: 12 Prev | Next Part: 117283 *Qty: 96 COTTER FOR VALVE SPRING CUP $2.74
Location: 13 Prev | Next Part: 117562 *Qty: 48 TAPPET FOR VALVE CONTROL $132.68
Location: 14 Prev | Next Part: 117591 *Qty: 48 DITTO, THICKNESS 4.35 mm $21.32
Location: 14 Prev | Next Part: 117575 *Qty: 48 DITTO, THICKNESS 3.55 mm $21.32
Location: 14 Prev | Next Part: 117592 *Qty: 48 DITTO, THICKNESS 4.40 mm $21.32
Location: 14 Prev | Next Part: 117576 *Qty: 48 DITTO, THICKNESS 3.60 mm $21.32
Location: 14 Prev | Next Part: 153731 *Qty: 48 DITTO, THICKNESS 3.725 mm $13.76
Location: 14 Prev | Next Part: 117593 *Qty: 48 DITTO, THICKNESS 4.45 mm $21.32
Location: 14 Prev | Next Part: 117577 *Qty: 48 DITTO, THICKNESS 3.65 mm $21.32
Location: 14 Prev | Next Part: 153732 *Qty: 48 DITTO, THICKNESS 3.775 mm $13.76
Location: 14 Prev | Next Part: 117594 *Qty: 48 DITTO, THICKNESS 4.50 mm $21.32
Location: 14 Prev | Next Part: 117578 *Qty: 48 DITTO, THICKNESS 3.70 mm $21.32
Location: 14 Prev | Next Part: 153733 *Qty: 48 DITTO, THICKNESS 3.825 mm $13.76
Location: 14 Prev | Next Part: 117595 *Qty: 48 DITTO, THICKNESS 4.55 mm $20.11
Location: 14 Prev | Next Part: 117579 *Qty: 48 DITTO, THICKNESS 3.75 mm $21.32
Location: 14 Prev | Next Part: 117580 *Qty: 48 DITTO, THICKNESS 3.80 mm $21.32
Location: 14 Prev | Next Part: 153734 *Qty: 48 DITTO, THICKNESS 3.875 mm $13.76
Location: 14 Prev | Next Part: 117596 *Qty: 48 DITTO, THICKNESS 4.60 mm $20.11
Location: 14 Prev | Next Part: 117581 *Qty: 48 DITTO, THICKNESS 3.85 mm $21.32
Location: 14 Prev | Next Part: 153735 *Qty: 48 DITTO, THICKNESS 3.925 mm $13.76
Location: 14 Prev | Next Part: 117582 *Qty: 48 DITTO, THICKNESS 3.90 mm $21.32
Location: 14 Prev | Next Part: 153736 *Qty: 48 DITTO, THICKNESS 3.975 mm $13.76
Location: 14 Prev | Next Part: 117583 *Qty: 48 DITTO, THICKNESS 3.95 mm $21.32
Location: 14 Prev | Next Part: 153737 *Qty: 48 DITTO, THICKNESS 4.025 mm $14.22
Location: 14 Prev | Next Part: 117584 *Qty: 48 DITTO, THICKNESS 4.00 mm $21.32
Location: 14 Prev | Next Part: 153738 *Qty: 48 DITTO, THICKNESS 4.075 mm $19.58
Location: 14 Prev | Next Part: 117585 *Qty: 48 DITTO, THICKNESS 4.05 mm $21.32
Location: 14 Prev | Next Part: 117569 *Qty: 48 SHIM FOR VALVE ADJSTMENT THICKNESS 3,25 mm. $21.32
Location: 14 Prev | Next Part: 153739 *Qty: 48 DITTO, THICKNESS 4.125 mm Call
Location: 14 Prev | Next Part: 117586 *Qty: 48 DITTO, THICKNESS 4.10 mm $21.32
Location: 14 Prev | Next Part: 117570 *Qty: 48 DITTO, THICKNESS 3.30 mm $21.32
Location: 14 Prev | Next Part: 153740 *Qty: 48 DITTO, THICKNESS 4.175 mm $44.43
Location: 14 Prev | Next Part: 117587 *Qty: 48 DITTO, THICKNESS 4.15 mm $21.32
Location: 14 Prev | Next Part: 117571 *Qty: 48 DITTO, THICKNESS 3.35 mm $21.32
Location: 14 Prev | Next Part: 153741 *Qty: 48 DITTO, THICKNESS 4.225 mm $13.76
Location: 14 Prev | Next Part: 117588 *Qty: 48 DITTO, THICKNESS 4.20 mm $21.32
Location: 14 Prev | Next Part: 117572 *Qty: 48 DITTO, THICKNESS 3.40 mm $21.32
Location: 14 Prev | Next Part: 153742 *Qty: 48 DITTO, THICKNESS 4.275 mm $13.76
Location: 14 Prev | Next Part: 117589 *Qty: 48 DITTO, THICKNESS 4.25 mm $21.32
Location: 14 Prev | Next Part: 117573 *Qty: 48 DITTO, THICKNESS 3.45 mm $21.32
Location: 14 Prev | Next Part: 117590 *Qty: 48 DITTO, THICKNESS 4.30 mm $21.32
Location: 14 Prev | Next Part: 117574 *Qty: 48 DITTO, THICKNESS 3.50 mm $21.32

* Quantity shown indicates the number of pieces used in the diagram.
