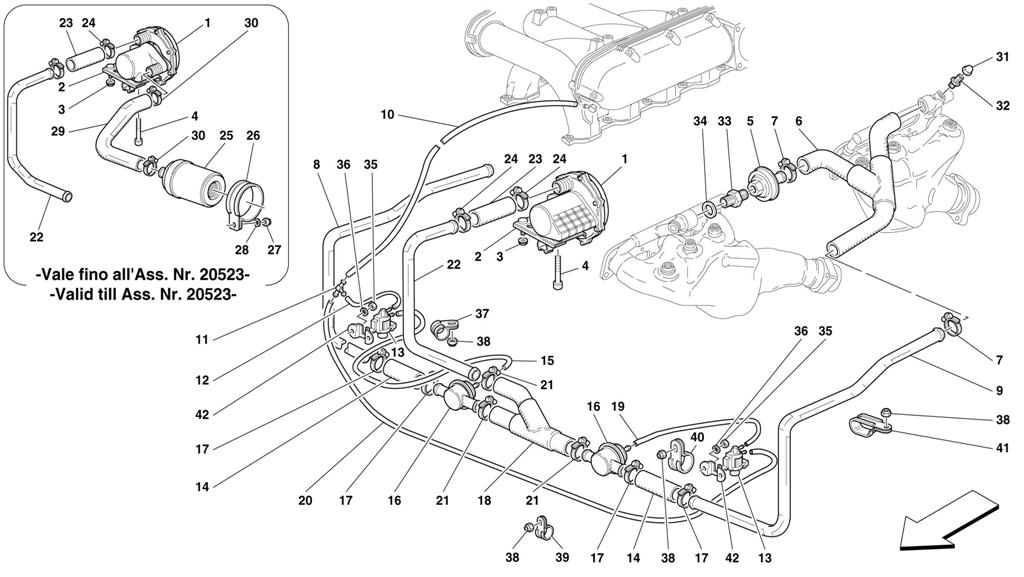

SECONDARY AIR PUMP

Go to Split View

SECONDARY AIR PUMP

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 148049 *Qty: 1 COMPLETE ELECTRIC AIR PUMP -Valid till Ass. Nr. 20523 Call
Location: 1 Prev | Next Part: 165903 *Qty: 1 COMPLETE ELECTRIC AIR PUMP -Valid from Ass. Nr. 20524 Call
Location: 2 Prev | Next Part: 149111 *Qty: 1 BRACKET FOR PUMP $31.59
Location: 3 Prev | Next Part: 15896214 *Qty: 3 NUT $0.90
Location: 4 Prev | Next Part: 14306724 *Qty: 1 SCREW $0.90
Location: 5 Prev | Next Part: 148494 *Qty: 4 SECONDARY AIR VALVE $39.00
Location: 6 Prev | Next Part: 154873 *Qty: 2 CONNECTION PIPE Call
Location: 7 Prev | Next Part: 161490 *Qty: 6 SCREW COLLAR $2.47
Location: 8 Prev | Next Part: 155103 *Qty: 1 R.H. PIPE $86.20
Location: 9 Prev | Next Part: 155104 *Qty: 1 L.H. PIPE $107.32
Location: 10 Prev | Next Part: 122762 *Qty: 1 PIPE FROM UNION TO PLENUM CHAMBER $12.79
Location: 11 Prev | Next Part: 121793 *Qty: 1 3-WAY UNION $0.90
Location: 12 Prev | Next Part: 122759 *Qty: 1 PIPE FROM UINION TO SOLENOID VALVE $7.67
Location: 13 Prev | Next Part: 159177 *Qty: 2 SOLENOID VALVE -Valid after stock exhaustion of 154384 $193.73
Location: 14 Prev | Next Part: 165446 *Qty: 2 RUBBER HOSE $31.75
Location: 15 Prev | Next Part: 115148 *Qty: 1 PIPE FROM CUT -OFF TO R.H. SOLENOID VALVE $5.16
Location: 16 Prev | Next Part: 147390 *Qty: 2 CUT-OFF VALVE $320.73
Location: 17 Prev | Next Part: 12180290 *Qty: 4 SCREW COLLAR Call
Location: 18 Prev | Next Part: 154871 *Qty: 1 CONNECTION SLEEVE $375.55
Location: 19 Prev | Next Part: 115148 *Qty: 1 PIPE FROM CUT -OFF TO L.H. SOLENOID VALVE $5.16
Location: 20 Prev | Next Part: 117170 *Qty: 1 PIPE FROM UINION TO SOLENOID VALVE Call
Location: 21 Prev | Next Part: 65424800 *Qty: 3 SCREW COLLAR $4.26
Location: 22 Prev | Next Part: 179552 *Qty: 1 PIPE -Valid till Ass. Nr. 20523 Call
Location: 22 Prev | Next Part: 155105 *Qty: 1 PIPE -Valid from Ass. Nr. 20524 $170.97
Location: 23 Prev | Next Part: 155116 *Qty: 1 SLEEVE $18.30
Location: 24 Prev | Next Part: 12180290 *Qty: 2 SCREW COLLAR Call
Location: 25 Prev | Next Part: 70000967 *Qty: 1 AIR FILTER -Valid till Ass. Nr. 20523 $114.90
Location: 26 Prev | Next Part: 126353 *Qty: 1 BRACKET WITH SHEATH -Valid till Ass. Nr. 20523 $34.02
Location: 27 Prev | Next Part: 102948 *Qty: 1 NUT -Valid till Ass. Nr. 20523 $0.90
Location: 28 Prev | Next Part: 12601274 *Qty: 1 WASHER -Valid till Ass. Nr. 20523 $0.90
Location: 29 Prev | Next Part: 155874 *Qty: 1 PIPE FROM AIR FILTER TO PUMP -Valid till Ass. Nr. 20523 $473.20
Location: 30 Prev | Next Part: 65424800 *Qty: 2 SCREW COLLAR -Valid till Ass. Nr. 20523 $4.26
Location: 31 Prev | Next Part: 150595 *Qty: 4 CAP NUT $1.17
Location: 32 Prev | Next Part: 152630 *Qty: 4 UNION $65.39
Location: 33 Prev | Next Part: 152631 *Qty: 4 UNION $48.57
Location: 34 Prev | Next Part: 10257460 *Qty: 4 GASKET $0.90
Location: 35 Prev | Next Part: 169180 *Qty: 4 NUT $0.90
Location: 36 Prev | Next Part: 14496324 *Qty: 4 WASHER $4.02
Location: 37 Prev | Next Part: 10441990 *Qty: 2 CLAMP $0.94
Location: 38 Prev | Next Part: 102948 *Qty: 5 NUT $0.90
Location: 39 Prev | Next Part: 10441490 *Qty: 1 CLAMP $0.90
Location: 40 Prev | Next Part: 10442290 *Qty: 1 CLAMP $0.94
Location: 41 Prev | Next Part: 61712500 *Qty: 1 CLAMP $2.16
Location: 42 Prev | Next Part: 145472 *Qty: 2 SOLENOID VALVE FIXING PLATE $5.52

* Quantity shown indicates the number of pieces used in the diagram.
