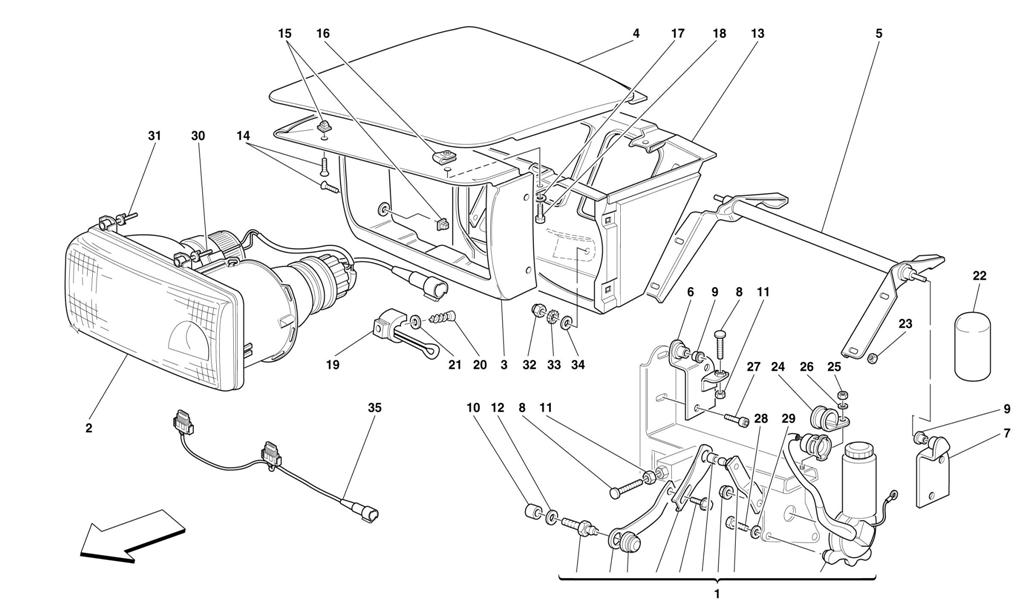

LIGHTS LIFTING DEVICE AND HEADLIGHTS

Go to Split View

LIGHTS LIFTING DEVICE AND HEADLIGHTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 173965 *Qty: 1 COMPLETE R.H. LIGHT LIFTING MOTOR -Valid after stock exhaustion of 153093 Call
Location: 1 Prev | Next Part: 174159 *Qty: 1 COMPLETE L.H. LIGHT LIFTING MOTOR -Valid after stock exhaustion of 153094 Call
Location: 2 Prev | Next Part: 146157 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM -Valid for J $1,008.30
Location: 2 Prev | Next Part: 146158 *Qty: 1 L.H. HEADLIGHT LOW/HIGH BEAM -Vale for J $1,008.30
Location: 2 Prev | Next Part: 133080 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM -Not for USA, CDN, J and GD $801.83
Location: 2 Prev | Next Part: 133081 *Qty: 1 L.H. HEADLIGHT LOW/HIGH BEAM -Not for USA, CDN, GD and J $801.83
Location: 2 Prev | Next Part: 133082 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM -Valid for USA and CDN $849.62
Location: 2 Prev | Next Part: 133083 *Qty: 1 L.H. HEADLIGHT LOW/HIGH BEAM -Valid for USA and CDN $849.62
Location: 2 Prev | Next Part: 133084 *Qty: 1 R.H. HEADLIGHT LOW/HIGH BEAM -Valid for GD $806.62
Location: 3 Prev | Next Part: 63776200 *Qty: 1 R.H. LIGHT FRAME $179.19
Location: 3 Prev | Next Part: 63776300 *Qty: 1 L.H. LIGHT FRAME Call
Location: 4 Prev | Next Part: 63135800 *Qty: 1 R.H. EXTERNAL PANEL $1,308.41
Location: 4 Prev | Next Part: 63135900 *Qty: 1 L.H. EXTERNAL PANEL $878.66
Location: 5 Prev | Next Part: 62790400 *Qty: 1 R.H. BRAKET FOR LIGHTS SUPPORT $98.81
Location: 5 Prev | Next Part: 62790500 *Qty: 1 L.H. BRAKET FOR LIGHTS SUPPORT $71.26
Location: 6 Prev | Next Part: 63136700 *Qty: 2 L.H. SUPPORT BRACKET $138.33
Location: 7 Prev | Next Part: 63136600 *Qty: 2 R.H. SUPPORT BRACKET $105.28
Location: 8 Prev | Next Part: 63346800 *Qty: 8 PIN $10.46
Location: 9 Prev | Next Part: 63854400 *Qty: 4 BUSHING $75.86
Location: 10 Prev | Next Part: 63186100 *Qty: 2 SPACER $1.70
Location: 11 Prev | Next Part: 15896214 *Qty: 8 NUT $0.90
Location: 12 Prev | Next Part: 62796200 *Qty: 2 WASHER $1.06
Location: 13 Prev | Next Part: 63744700 *Qty: 1 R.H. LIGHT CONTAINER $1,020.53
Location: 13 Prev | Next Part: 63744800 *Qty: 1 L.H. LIGHT CONTAINER $1,020.53
Location: 14 Prev | Next Part: 15915977 *Qty: 8 SCREW $0.90
Location: 15 Prev | Next Part: 14215480 *Qty: 8 NUT SCREW Superseded
Location: 16 Prev | Next Part: 62770300 *Qty: 6 CLIP $1.51
Location: 17 Prev | Next Part: 64206400 *Qty: 6 WASHER $0.90
Location: 18 Prev | Next Part: 15687270 *Qty: 6 SCREW $0.90
Location: 19 Prev | Next Part: 139637 *Qty: 2 BRACKET FOR CABLES FIXING $22.59
Location: 20 Prev | Next Part: 15688275 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 10519378 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 64064700 *Qty: 2 PROTECTION BOOT $21.01
Location: 23 Prev | Next Part: 14084211 *Qty: 8 NUT $0.90
Location: 24 Prev | Next Part: 143119 *Qty: 2 FIXING CLIP $0.90
Location: 25 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 12647624 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: 13836324 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: 10902024 *Qty: 6 SCREW $0.90
Location: 29 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 30 Prev | Next Part: 148086 *Qty: 2 FIXED POINT PIN $23.08
Location: 31 Prev | Next Part: 148088 *Qty: 4 HEADLIGHT ADJSTING SCREW $25.55
Location: 32 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 33 Prev | Next Part: 12608574 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 12647024 *Qty: 2 WASHER Superseded
Location: 35 Prev | Next Part: 138914 *Qty: 2 FRONT LIGHT CONNECTION CABLES -Valid for USA and CDN $68.33

* Quantity shown indicates the number of pieces used in the diagram.
