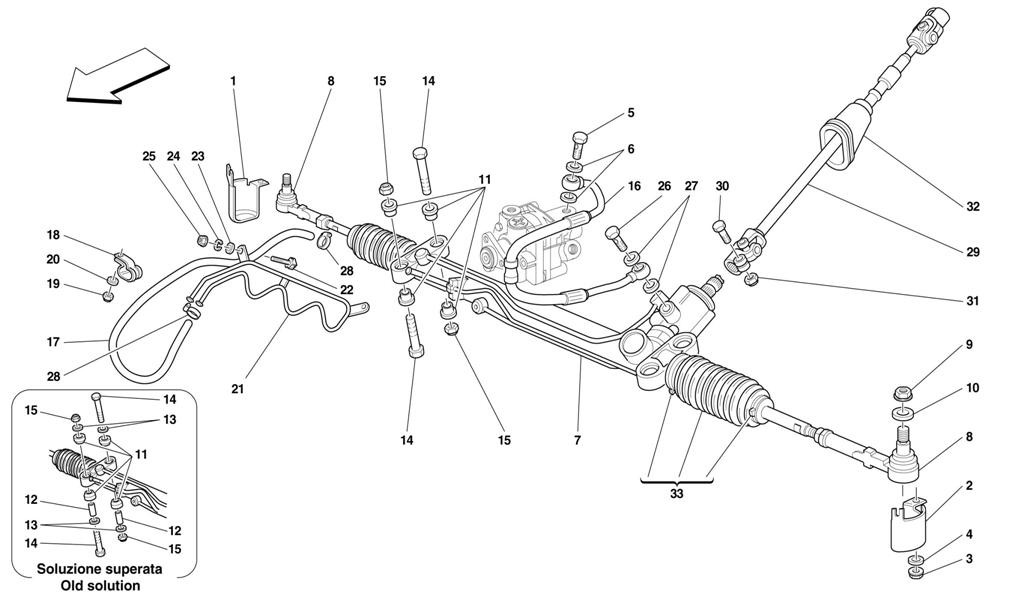

HYDRAULIC STEERING BOX AND SERPENTINE -NOT FOR RHD

Go to Split View

HYDRAULIC STEERING BOX AND SERPENTINE -NOT FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 150879 *Qty: 1 R.H. PROTECTION $17.01
Location: 2 Prev | Next Part: 150878 *Qty: 1 L.H. PROTECTION $17.53
Location: 3 Prev | Next Part: 14058319 *Qty: 4 NUT $0.90
Location: 4 Prev | Next Part: 10730014 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 10184411 *Qty: 1 UNION $73.61
Location: 6 Prev | Next Part: 10278660 *Qty: 2 GASKET $0.90
Location: 7 Prev | Next Part: 161872 *Qty: 1 STEERING BOX -Valid after stock exhaustion of 155004 Call
Location: 8 Prev | Next Part: 158016 *Qty: 2 BALL JOINT $320.81
Location: 9 Prev | Next Part: 149807 *Qty: 2 NUT $1.39
Location: 10 Prev | Next Part: 155002 *Qty: 2 WASHER $3.97
Location: 11 Prev | Next Part: 155567 *Qty: 8 SILENT BLOCK -Valid for steering box 161872 $20.04
Location: 11 Prev | Next Part: 135139 *Qty: 8 PAD -Valid for steering box 155004 $32.16
Location: 12 Prev | Next Part: 108294 *Qty: 4 SPACER -Valid for steering box 155004 $110.99
Location: 13 Prev | Next Part: 116413 *Qty: 8 WASHER -Valid for steering box 155004 $1.32
Location: 14 Prev | Next Part: 175701 *Qty: 4 SCREW -Substitutes 16287634 $3.22
Location: 14 Prev | Next Part: 16287834 *Qty: 4 SCREW -Valid for steering box 155004 $0.90
Location: 15 Prev | Next Part: 14058519 *Qty: 4 NUT -Valid for steering box 161872 $0.90
Location: 15 Prev | Next Part: 147985 *Qty: 4 NUT -Valid for steering box 155004 $0.90
Location: 16 Prev | Next Part: 157350 *Qty: 1 PIPE FROM PUMP TO STEERING BOX Call
Location: 17 Prev | Next Part: 155572 *Qty: 1 RUBBER PIPE TO COOLING PIPE $53.22
Location: 18 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH $2.23
Location: 19 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 20 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 156656 *Qty: 1 REFRIGERATING COIL $183.58
Location: 22 Prev | Next Part: 155878 *Qty: 2 SCREW $7.77
Location: 23 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 26 Prev | Next Part: 10185011 *Qty: 1 UNION $42.73
Location: 27 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 28 Prev | Next Part: 161490 *Qty: 2 SCREW COLLAR $2.48
Location: 29 Prev | Next Part: 150837 *Qty: 1 CARDANIC TRANSMISSION -Valid till stock exhaustion Call
Location: 29 Prev | Next Part: 175271 *Qty: 1 CARDANIC TRANSMISSION -Valid after stock exhaustion of 150837 $1,743.18
Location: 30 Prev | Next Part: 150427 *Qty: 2 SCREW $7.75
Location: 31 Prev | Next Part: 150428 *Qty: 2 NUT $1.86
Location: 32 Prev | Next Part: 151683 *Qty: 1 GASKET FOR RESIN SHIELD $76.63
Location: 32 Prev | Next Part: 154807 *Qty: 1 GASKET FOR STEEL SHIELD -Not as spare part replaced by 167341 $19.40
Location: 32 Prev | Next Part: 167341 *Qty: 1 GASKET FOR SHIELD -Replace the 154807 $24.85
Location: 33 Prev | Next Part: 171702 *Qty: 2 COMPLETE RUBBER BOOT $158.64

* Quantity shown indicates the number of pieces used in the diagram.
