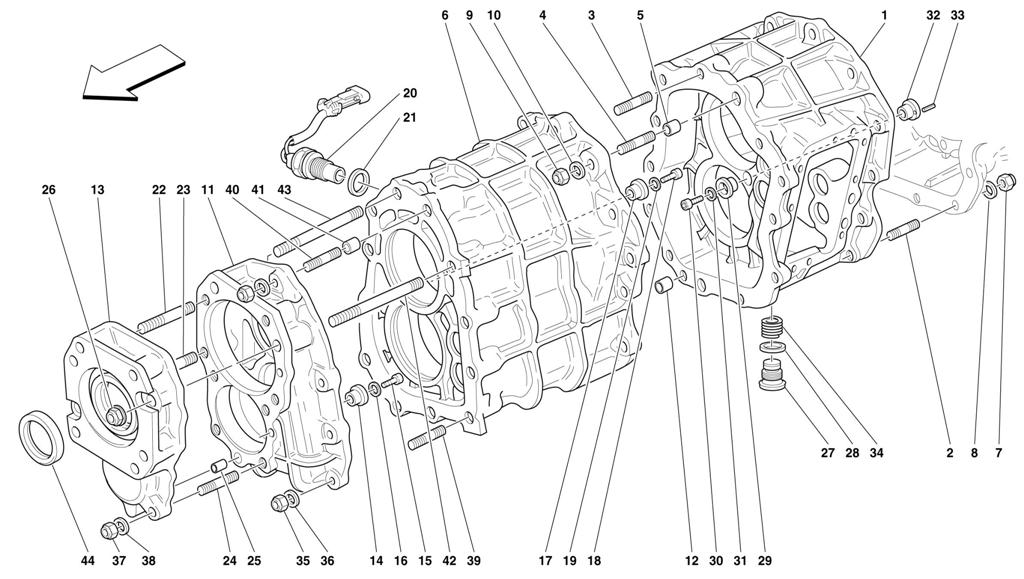

GEARBOX -NOT FOR 456 GTA

Go to Split View

GEARBOX -NOT FOR 456 GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 157955 *Qty: 1 COMPLETE GEARBOX -Valid till gearbox Nr. 1000 $6,024.13
Location: - Prev | Next Part: 164046 *Qty: 1 COMPLETE GEARBOX -Valid from gearbox Nr. 1001 till gearbox Nr. 1576 $4,077.38
Location: - Prev | Next Part: 172616 *Qty: 1 COMPLETE GEARBOX -Valid from gearbox Nr. 1577 $3,986.99
Location: 1 Prev | Next Part: 157365 *Qty: 1 GEAR BOX 3rd ELEMENT -Valid till gearbox Nr. 1000 -With complete gear box Call
Location: 1 Prev | Next Part: 164048 *Qty: 1 GEAR BOX 3rd ELEMENT -Valid from gearbox Nr. 1001 till gearbox Nr. 1576 -With complete gear box Call
Location: 1 Prev | Next Part: 171010 *Qty: 1 GEAR BOX 3rd ELEMENT -Valid from gearbox Nr. 1577 -With complete gear box Call
Location: 2 Prev | Next Part: 13543524 *Qty: 4 STUD $0.95
Location: 3 Prev | Next Part: 13543524 *Qty: 11 STUD $0.95
Location: 4 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 5 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 6 Prev | Next Part: 164047 *Qty: 1 GEAR BOX 2nd ELEMENT -Valid from gearbox Nr. 1001 -With complete gear box- Call
Location: 6 Prev | Next Part: 149540 *Qty: 1 GEAR BOX 2nd ELEMENT -Valid till gearbox Nr. 1000 -With complete gear box- Call
Location: 7 Prev | Next Part: 16100814 *Qty: 13 NUT $0.90
Location: 8 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 9 Prev | Next Part: 16100814 *Qty: 13 NUT $0.90
Location: 10 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 11 Prev | Next Part: 149449 *Qty: 1 GEAR BOX 1st ELEMENT -With complete gear box Call
Location: 12 Prev | Next Part: 125717 *Qty: 2 CENTERING DOWEL $4.04
Location: 13 Prev | Next Part: 148106 *Qty: 1 COMPLETE FRONT COVER $216.20
Location: 14 Prev | Next Part: 131757 *Qty: 1 BUSHING $14.34
Location: 15 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 16 Prev | Next Part: 10569273 *Qty: 1 WASHER $0.90
Location: 17 Prev | Next Part: 131757 *Qty: 1 BUSHING $14.34
Location: 18 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 19 Prev | Next Part: 10569273 *Qty: 1 WASHER $0.90
Location: 20 Prev | Next Part: 149095 *Qty: 1 PULSE SENSOR FOR SPEEDOMETER $272.48
Location: 21 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 22 Prev | Next Part: 13547234 *Qty: 5 STUD $4.11
Location: 23 Prev | Next Part: 153477 *Qty: 1 STUD $21.30
Location: 24 Prev | Next Part: 13543424 *Qty: 2 STUD $0.90
Location: 25 Prev | Next Part: 125717 *Qty: 1 CENTERING DOWEL $4.04
Location: 26 Prev | Next Part: 133216 *Qty: 2 NUT $9.88
Location: 27 Prev | Next Part: 104280 *Qty: 1 OIL OUTLET PLUG $6.54
Location: 28 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 29 Prev | Next Part: 157009 *Qty: 1 BUSHING -Valid from gearbox Nr. 1577 $9.05
Location: 29 Prev | Next Part: 131757 *Qty: 1 BUSHING -Valid till gearbox Nr. 1576 $14.34
Location: 30 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 31 Prev | Next Part: 10569273 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 157010 *Qty: 1 BUSHING -Valid from gearbox Nr. 1577 $10.79
Location: 32 Prev | Next Part: 131756 *Qty: 1 BUSHING -Valid till gearbox Nr. 1576 $35.31
Location: 33 Prev | Next Part: 14159470 *Qty: 1 PIN $6.84
Location: 34 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $5.06
Location: 35 Prev | Next Part: 16100814 *Qty: 10 NUT $0.90
Location: 36 Prev | Next Part: 12601374 *Qty: 10 WASHER $0.90
Location: 37 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 39 Prev | Next Part: 13543524 *Qty: 8 STUD $0.95
Location: 40 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 41 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $2.18
Location: 42 Prev | Next Part: 153478 *Qty: 1 STUD $22.18
Location: 43 Prev | Next Part: 13971734 *Qty: 1 STUD $8.44
Location: 44 Prev | Next Part: 158194 *Qty: 1 GASKET $87.37

* Quantity shown indicates the number of pieces used in the diagram.
