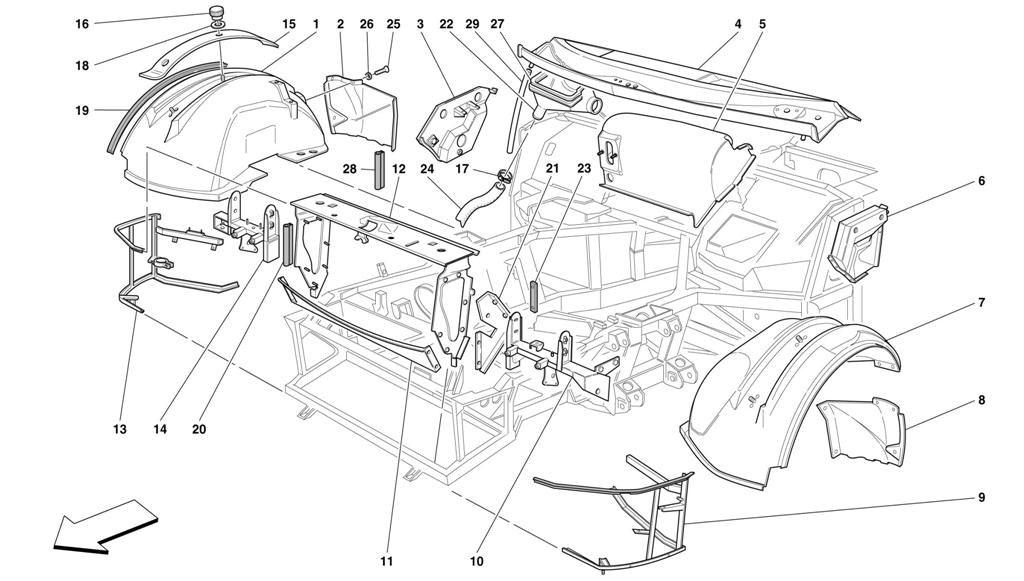

FRONT STRUCTURES AND COMPONENTS

Go to Split View

FRONT STRUCTURES AND COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64313100 *Qty: 1 R.H. FRONT UPPER WHEELHOUSE -Not for GD -Valid after stock exhaustion $741.90
Location: 1 Prev | Next Part: 64040800 *Qty: 1 R.H. FRONT UPPER WHEELHOUSE -Valid for GD $839.90
Location: 2 Prev | Next Part: 63773800 *Qty: 1 R.H. WHEELHOUSE PANEL -Valid for wheelhouse Nr. 63120200 $464.78
Location: 2 Prev | Next Part: 64272400 *Qty: 1 R.H. WHEELHOUSE PANEL -Valid for wheelhouse Nr. 64313100 and for GD $240.69
Location: 3 Prev | Next Part: 63779400 *Qty: 1 R.H. HINGE CONNECTION -Not for GD $96.03
Location: 3 Prev | Next Part: 64330500 *Qty: 1 R.H. HINGE CONNECTION -Valid for GD $207.88
Location: 4 Prev | Next Part: 62792900 *Qty: 1 LOWER WINDSHIELD CROSS MEMBER -Not for GD $501.94
Location: 4 Prev | Next Part: 64041300 *Qty: 1 LOWER WINDSHIELD CROSS MEMBER -Valid for GD $2,982.33
Location: 5 Prev | Next Part: 63855800 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Not for GD $485.57
Location: 5 Prev | Next Part: 64041400 *Qty: 1 PROTECTION FOR AIR CONDITIONING -Valid for GD $329.22
Location: 6 Prev | Next Part: 63779500 *Qty: 1 L.H. HINGE CONNECTION -Not for GD $176.48
Location: 6 Prev | Next Part: 64330600 *Qty: 1 L.H. HINGE CONNECTION -Valid for GD $382.60
Location: 7 Prev | Next Part: 64313200 *Qty: 1 L.H. FRONT UPPER WHEELHOUSE -Not for GD -Valid after stock exhaustion of 63120200 $715.64
Location: 7 Prev | Next Part: 64040900 *Qty: 1 L.H. FRONT UPPER WHEELHOUSE -Valid for GD $763.55
Location: 8 Prev | Next Part: 64272900 *Qty: 1 L.H. WHEELHOUSE PANEL -Valid for wheelhouse Nr. 64313200 and for GD $240.69
Location: 8 Prev | Next Part: 63773900 *Qty: 1 L.H. WHEELHOUSE PANEL -Valid for wheelhouse Nr. 63120300 $464.78
Location: 9 Prev | Next Part: 64401200 *Qty: 1 L.H. FRONT FRAME $493.74
Location: 10 Prev | Next Part: 64401500 *Qty: 1 L.H. HEAD LAMP SUPPORT $740.60
Location: 11 Prev | Next Part: 63879600 *Qty: 1 LOWER AIR CONVEYOR $131.68
Location: 12 Prev | Next Part: 63789400 *Qty: 1 FRONT CROSS MEMBER $395.07
Location: 13 Prev | Next Part: 64401100 *Qty: 1 R.H. FRONT FRAME $493.74
Location: 14 Prev | Next Part: 64401600 *Qty: 1 R.H. HEAD LAMP SUPPORT $740.60
Location: 15 Prev | Next Part: 63198800 *Qty: 2 COVER -Valid till stock exhaustion $263.37
Location: 15 Prev | Next Part: 65142100 *Qty: 2 COVER -Valid after stock exhaustion of 63198800 $34.82
Location: 16 Prev | Next Part: 63198900 *Qty: 6 RING NUT $11.21
Location: 17 Prev | Next Part: 13000690 *Qty: 1 SCREW COLLAR Call
Location: 18 Prev | Next Part: 13604115 *Qty: 6 SPACER $1.76
Location: 19 Prev | Next Part: 64076300 *Qty: 2 GASKET Call
Location: 20 Prev | Next Part: 64329000 *Qty: 2 LATERAL GASKET $6.33
Location: 21 Prev | Next Part: 63480000 *Qty: 1 R.H. CONVEYOR LATERAL PANEL $191.63
Location: 21 Prev | Next Part: 63480100 *Qty: 1 L.H. CONVEYOR LATERAL PANEL $191.63
Location: 22 Prev | Next Part: 64281800 *Qty: 1 AIR DUCTING -Valid for GD -Valid till stock exhaustion $1,316.81
Location: 22 Prev | Next Part: 63200700 *Qty: 1 AIR DUCTING -Not for GD Call
Location: 22 Prev | Next Part: 65500700 *Qty: 1 AIR DUCTING -Valid for GD -Valid after stock exhaustion of 64281800 Call
Location: 23 Prev | Next Part: 62799900 *Qty: 2 GASKET $7.41
Location: 24 Prev | Next Part: 64537300 *Qty: 1 PIPE -Valid for GD- $93.69
Location: 24 Prev | Next Part: 63200800 *Qty: 1 PIPE -Not for GD- $53.91
Location: 25 Prev | Next Part: 15688375 *Qty: 12 SCREW $0.90
Location: 26 Prev | Next Part: 12638177 *Qty: 12 WASHER Superseded
Location: 27 Prev | Next Part: 63201100 *Qty: 1 AIR DUCTING GASKET $7.02
Location: 28 Prev | Next Part: 64517200 *Qty: 2 GASKET $8.36
Location: 29 Prev | Next Part: 63891600 *Qty: 2 WATER EXHAUST PIPE $9.24

* Quantity shown indicates the number of pieces used in the diagram.
