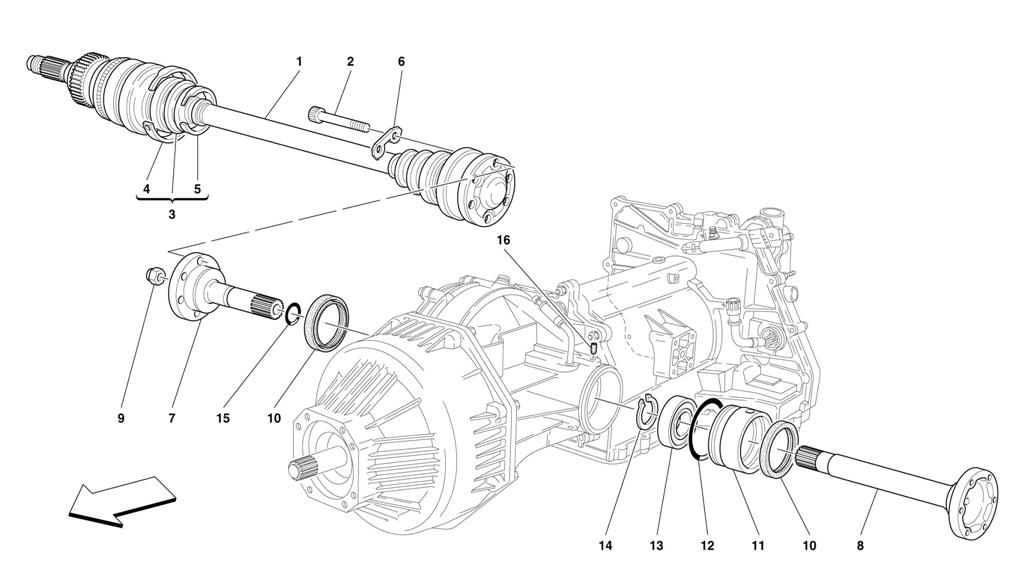

FLANGES AND AXLE SHAFT -VALID FOR 456 GTA

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 162464 *Qty: 2 AXLE SHAFT Call
Location: 2 Prev | Next Part: 181910 *Qty: 12 SCREW Superseded
Location: 3 Prev | Next Part: 70000867 *Qty: 2 PROTECTION REPLACEMENT SET -Gearbox side Superseded
Location: 3 Prev | Next Part: 70000782 *Qty: 2 PROTECTION REPLACEMENT SET -Wheel side Call
Location: 4 Prev | Next Part: 154214 *Qty: 4 BIG CLAMP $2.44
Location: 5 Prev | Next Part: 154213 *Qty: 4 LITTLE CLAMP $5.50
Location: 6 Prev | Next Part: 149415 *Qty: 6 SCRAPING PLATE $2.45
Location: 7 Prev | Next Part: 170958 *Qty: 1 R.H. FLANGE $534.79
Location: 8 Prev | Next Part: 173689 *Qty: 1 L.H. FLANGE Call
Location: 9 Prev | Next Part: 169546 *Qty: 1 NUT Call
Location: 10 Prev | Next Part: 177302 *Qty: 2 SEAL RING $251.37
Location: 11 Prev | Next Part: 172547 *Qty: 1 BAG FOR BEARINGS Call
Location: 12 Prev | Next Part: 170837 *Qty: 1 O.R. GASKET $34.07
Location: 13 Prev | Next Part: 173690 *Qty: 1 BEARING $146.48
Location: 14 Prev | Next Part: 173691 *Qty: 1 SEEGER RING $25.53
Location: 15 Prev | Next Part: 171621 *Qty: 1 O.R. GASKET $44.16
Location: 16 Prev | Next Part: 173615 *Qty: 1 DOWEL $44.72

* Quantity shown indicates the number of pieces used in the diagram.
